Fittings & Hose

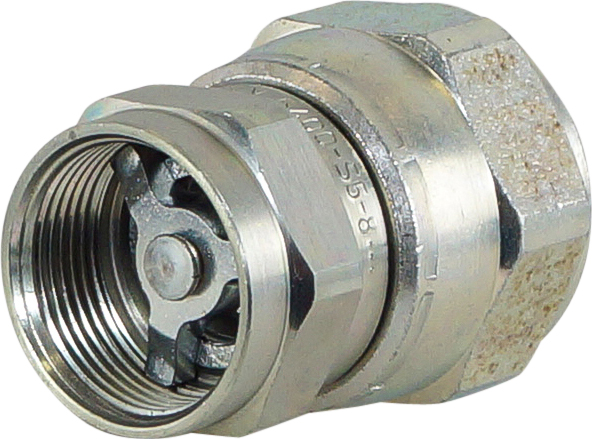

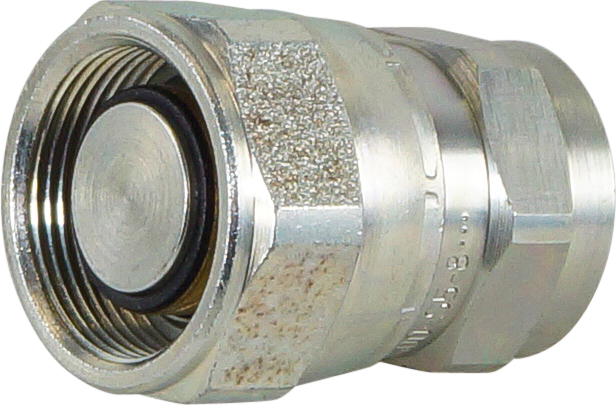

FITTING, EVAPORATOR CONNECTION, #10 FEMALE COUPLER WITH HALF VALVE
HF-41032
Description
This evaporator connection fitting is a #10 female coupler equipped with a half valve, designed for air conditioning and refrigeration systems. It provides a self-sealing connection upon disconnection, minimising fluid loss and air inclusion. The internal valve can be replaced, making the fitting field repairable.
Specifications
| Connection Type | Female Coupler |
| Valve Type | Half Valve (Self-sealing poppet valve) |
| Hose Size | #10 (approximately 5/8 inch ID) |
| Material | Steel (common for self-sealing couplings) |
| Seal Material | O-ring (Buna-N or Neoprene are common for AC refrigerants) |
| Pressure Rating | Up to 1000 psig (for similar self-sealing couplers) |
Vehicle / Equipment Applications
Refrigeration systemsAir conditioning systemsData centre coolingBattery cooling thermal management systemsCryogenic units
Weight: 0.3 kg
