Sigma
Sigma

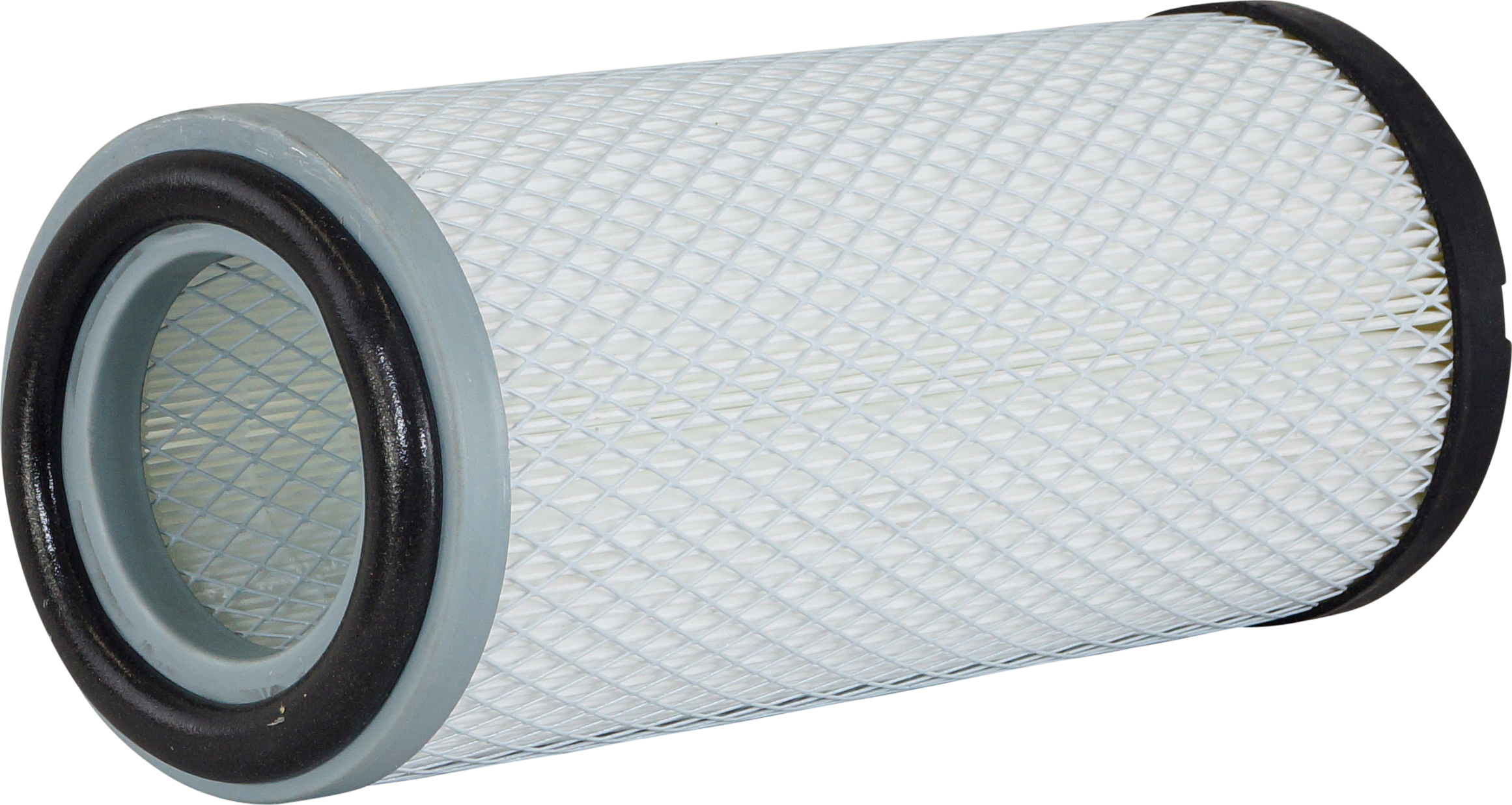

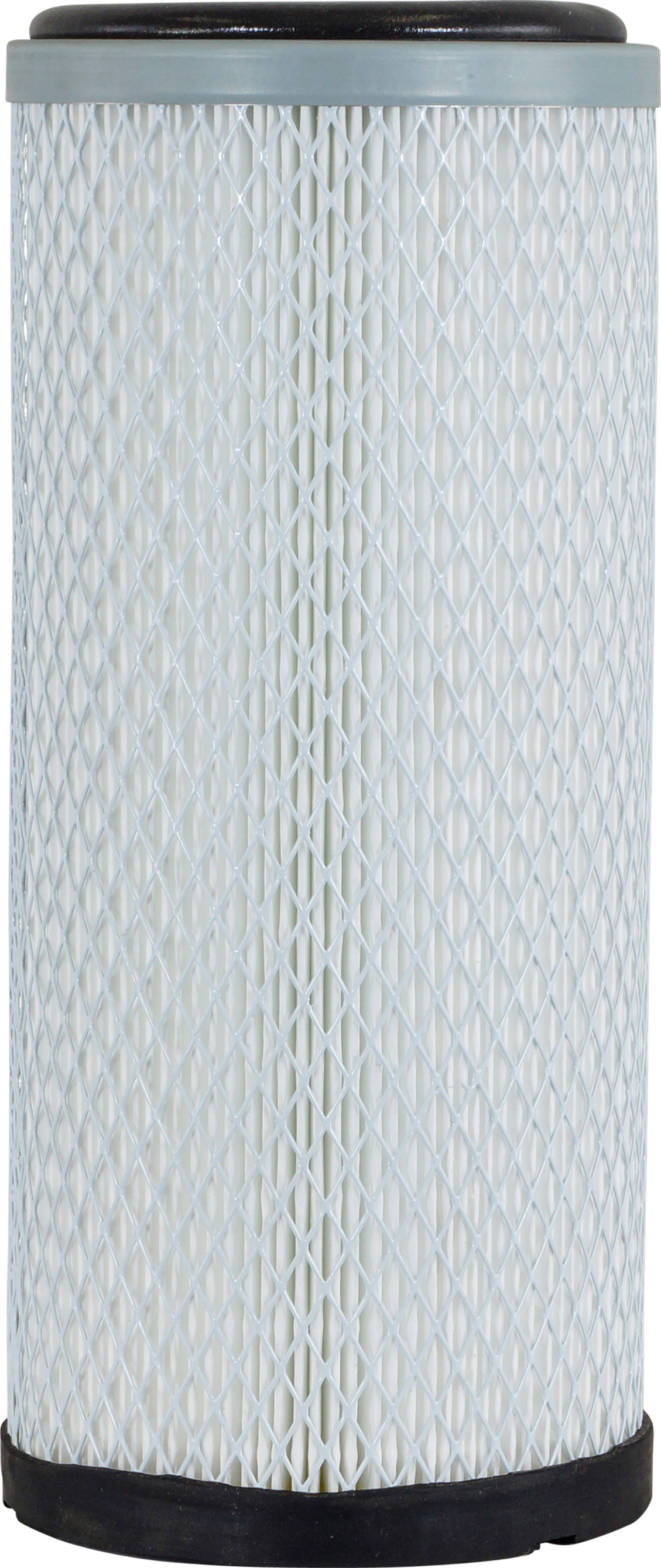

FILTER, CARTRIDGE, HEPA H13, SUITS NEW BRUSHLESS SIGMA PRESSURISER H0614665
FI-13050
Description
A HEPA H13 cartridge filter designed for the new brushless Sigma pressuriser, such as the H0614665 (FVV40) model. This filter provides 99.95% filtration efficiency for particles 0.3 µm in diameter, effectively removing microscopic contaminants from cabin air.
Specifications
| HEPA Grade | H13 |
| Test Standard | EN 1822 or equivalent |
| Filtration Efficiency | 99.95% for particles 0.3 µm diameter |
| Filter Media | Type 55 Glass Paper |
| Case Material | Galvanised Steel |
| Spacers Material | Aluminium |
| Gasket Material | Neoprene |
| Features | Fire resistant and self-extinguishing |
| Suits Sigma Pressuriser Model | H0614665 (FVV40) |
| Known Dimensions Related HEPA Filters | 138mm OD x 292 mm (H0202671), 305mm x 305mm x 149mm (AU460863) |
Vehicle / Equipment Applications
Mine sites (for silica dust, fine coal dust, diesel particulate matter, asbestos, heavy metals, carcinogenic dust)DozersDraglines & ShovelsDrillsExcavatorsTrucksWheel LoadersUnderground EquipmentSmeltersRail Special VehiclesConstruction equipmentIndustrial applications
Weight: 3 kg
