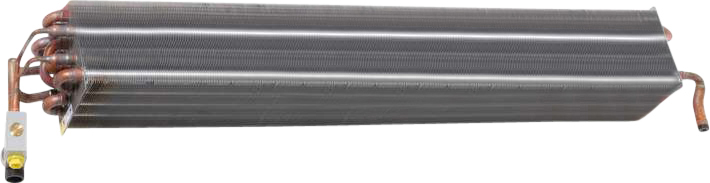

EVAPORATOR, COIL, CASE, IH CX100-CX90, MX100-MX90C, WITH HEATER CORE
EVC-28251
Description
This evaporator coil, including a heater core, is designed for Case IH CX and MX series agricultural equipment. It provides both cooling and heating functions within the cabin's climate control system.
Specifications
| with heater core | true |
| valve type | Block |
| fitting type | O-Ring |
| core length mm | 940 (37") |
| core height mm | 127 (5") |
| core width mm | 111 (4-3/8") |
| overall length mm | 1092 (43") |
| overall height mm | 127 (5") |
| overall width mm | 178 (7") |
| inlet fitting | #8 Male O-Ring |
| outlet fitting | #10 Male O-Ring |
| OEM cross references | 251389A1, 372500A1, 88251389A1 |
Vehicle / Equipment Applications
Case IH CX50Case IH CX60Case IH CX70Case IH CX80Case IH CX90Case IH CX100Case IH MX80CCase IH MX90CCase IH MX100Case IH MX100CCase IH MX110Case IH MX120Case IH MX135Case IH MX150Case IH MX170
Weight: 3.5 kg
