Thermostats and TX Valves

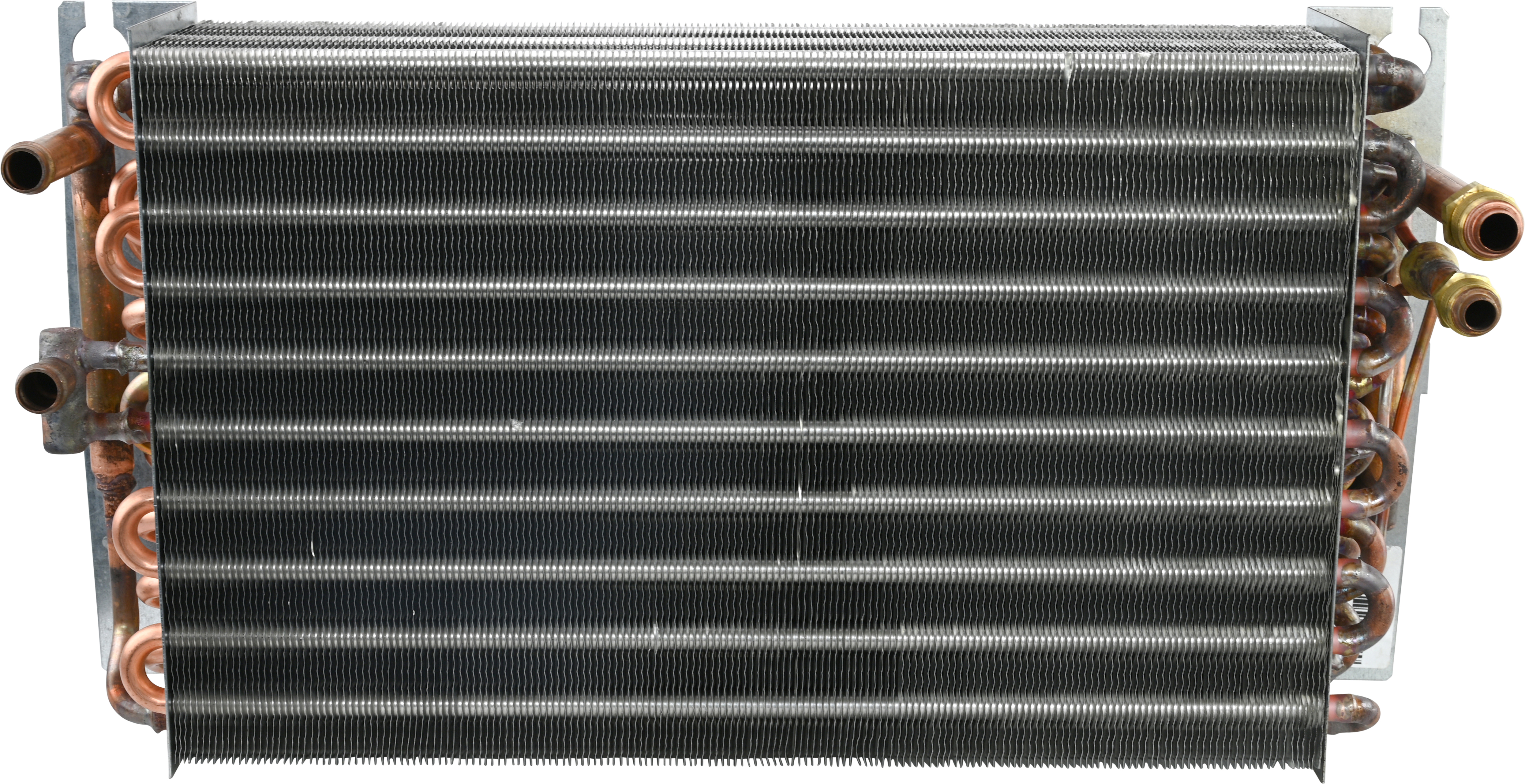

EVAPORATOR, COIL, CASE, IH MX180-MX270, #8 MOR #10 MOR, SUITS TX VALVE BLOCK
EVC-28249
Description
This evaporator coil is designed for Case IH MX180-MX270 series tractors and SPX4260, SPX4410 sprayers. It features #8 Male O-Ring inlet and #10 Male O-Ring outlet fittings, and is compatible with a TX valve block.
Specifications
| core length | 410mm (16 1/8") |
| core height | 254mm (10") |
| core width | 111mm (4-3/8") |
| overall length | 20-1/2" |
| overall height | 10-1/2" |
| overall width | 6-3/8" |
| inlet fitting | #8 Male O-Ring |
| outlet fitting | #10 Male O-Ring |
| valve type | Block |
| oem cross references | 322847A1, 322847A2, A322847A1, A322847A2, 5902220, 590-6105, 87775631 |
Vehicle / Equipment Applications
Case IH MX180Case IH MX200Case IH MX220Case IH MX240Case IH MX270Case IH SPX4260 SprayerCase IH SPX4410 Sprayer
Weight: 0.3 kg
