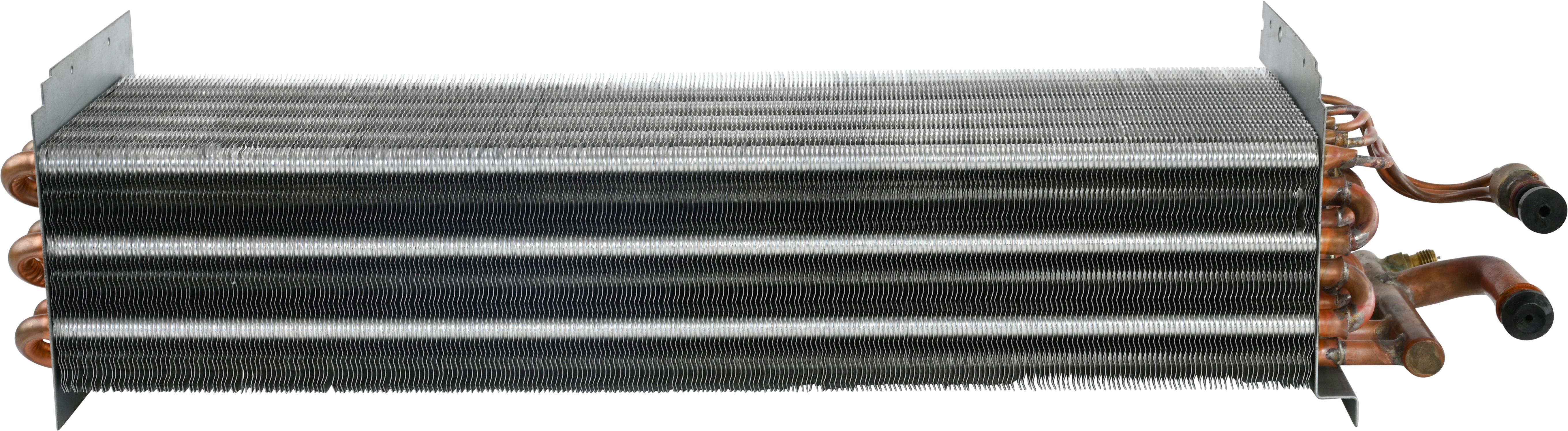

Evaporator coil to suit Case Maxxum & MX-Series block, suits TX valve block
EVC-28248
Description
This evaporator coil is designed for Case Maxxum and MX-Series agricultural and heavy equipment. It is a block-type evaporator, compatible with a TX valve block, and features O-ring fittings for the inlet and outlet.
Specifications
| fitting type | O-Ring |
| inlet fitting | #8 Male O-Ring |
| outlet fitting | #10 Male O-Ring |
| valve type | Block |
| core length mm | 410 |
| core height mm | 254 |
| core width mm | 111 |
| overall length mm | 521 |
| overall height mm | 267 |
| overall width mm | 162 |
| oem cross reference | 322847A1, 322847A2 |
Vehicle / Equipment Applications
Case Maxxum SeriesCase MX-Series (e.g., MX180, MX200, MX220, MX240, MX270)Case IH SPX4260Case IH SPX4410Case IH MXM120
Weight: 0.3 kg
