Receiver Driers

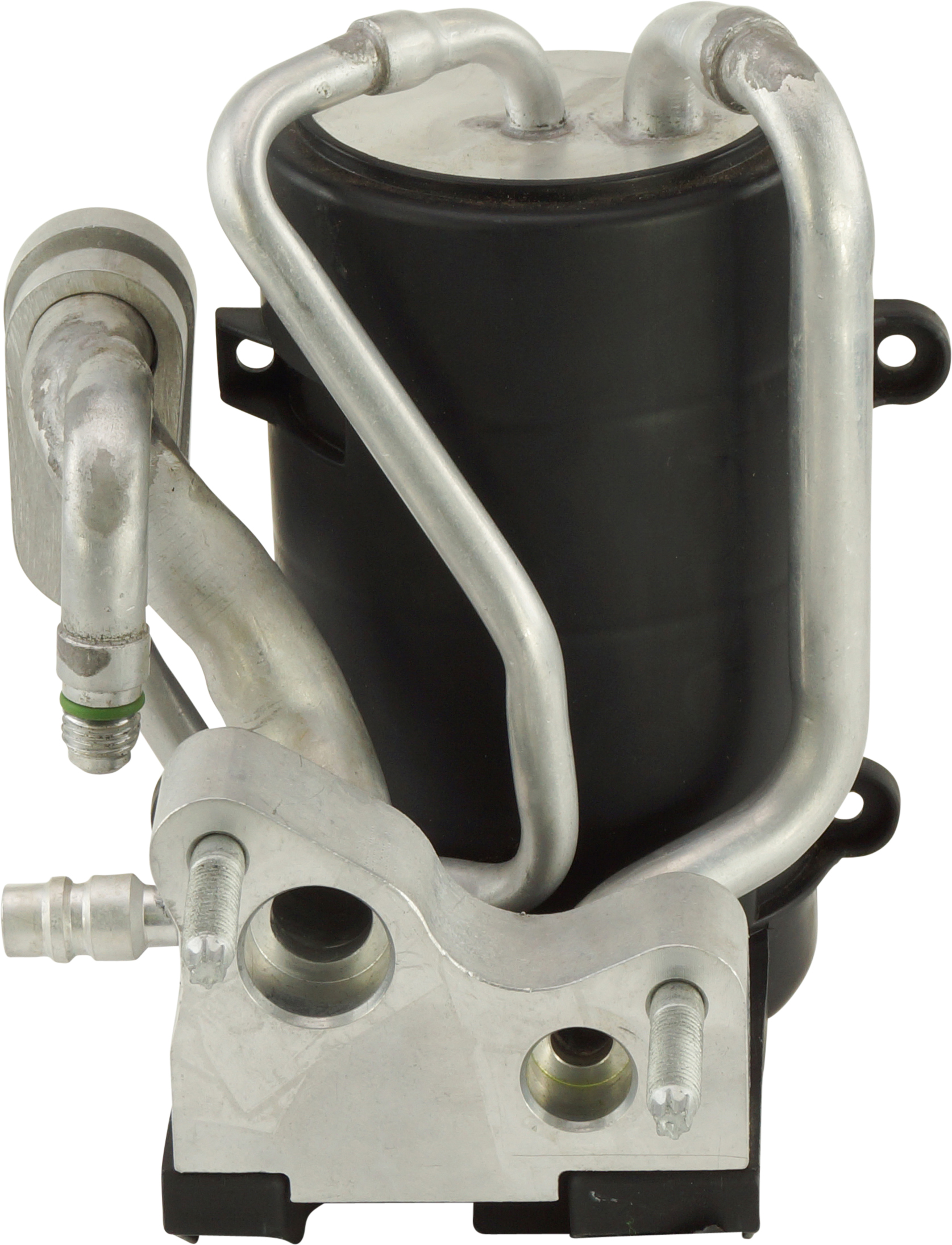

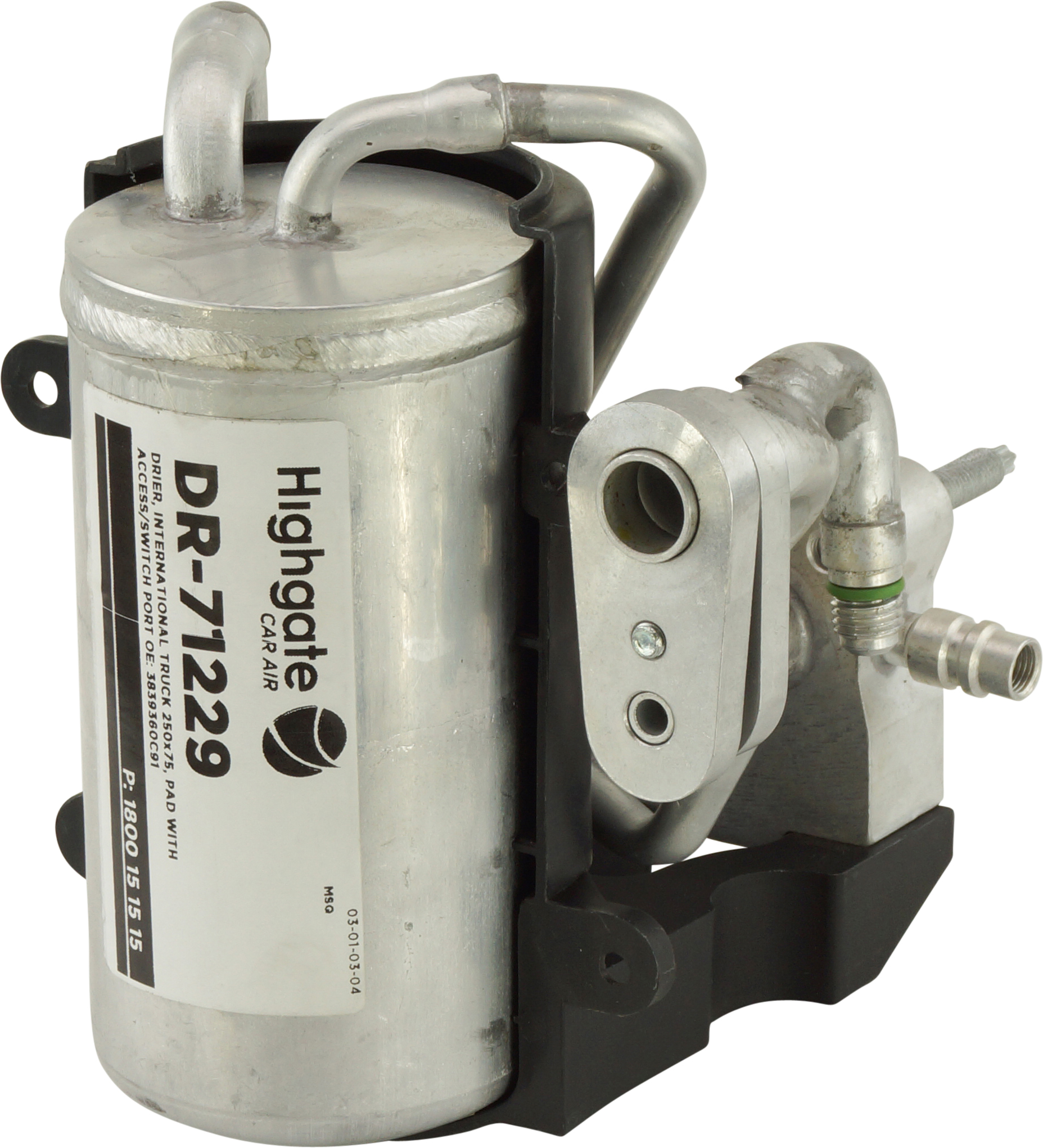

DRIER, PAD WITH ACCESS/SWITCH PORT, 250X75, INTERNATIONAL TRUCK
DR-71229
Description
This pad-mount receiver drier is equipped with an access port and a switch port, measuring approximately 250mm in length and 75mm in diameter. It is designed for International Trucks, often featuring a top sight glass and a top service valve.
Specifications
| diameter | 76mm (3") |
| overall length | 254mm (10") |
| inlet | 11/16" #6 Female O-Ring (FO) |
| outlet | 3/8" #6 Female O-Ring (FO) |
| sight glass | Top |
| service valve | 16mm, Top |
| pressure relief valve | Top |
Vehicle / Equipment Applications
International TruckNavistar Trucks
Weight: 1 kg
