BELT, COMPRESSOR, JACK RABBIT, 13A1220

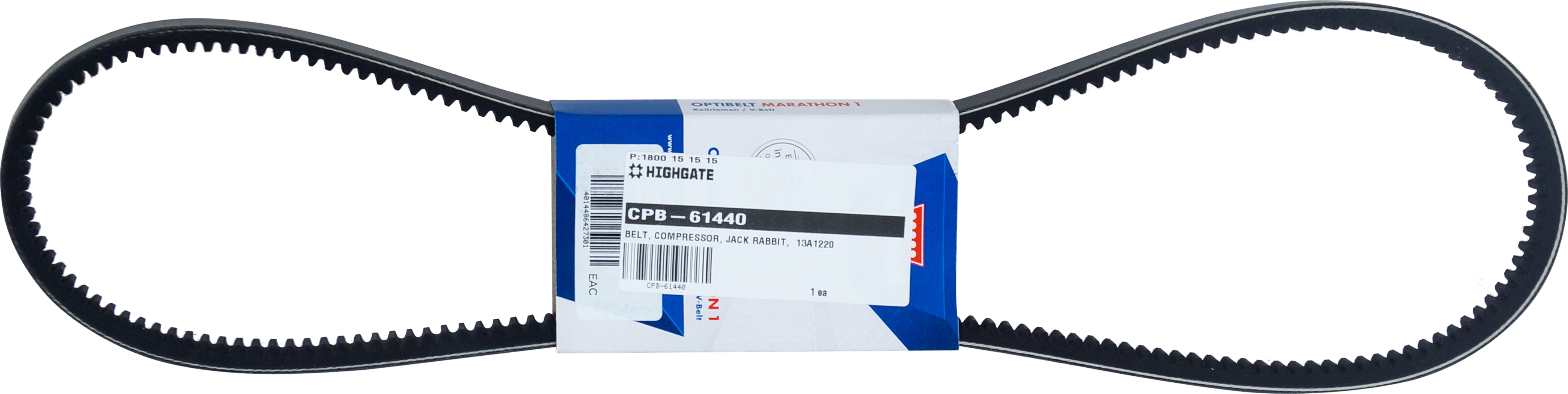

CPB-61440
Description

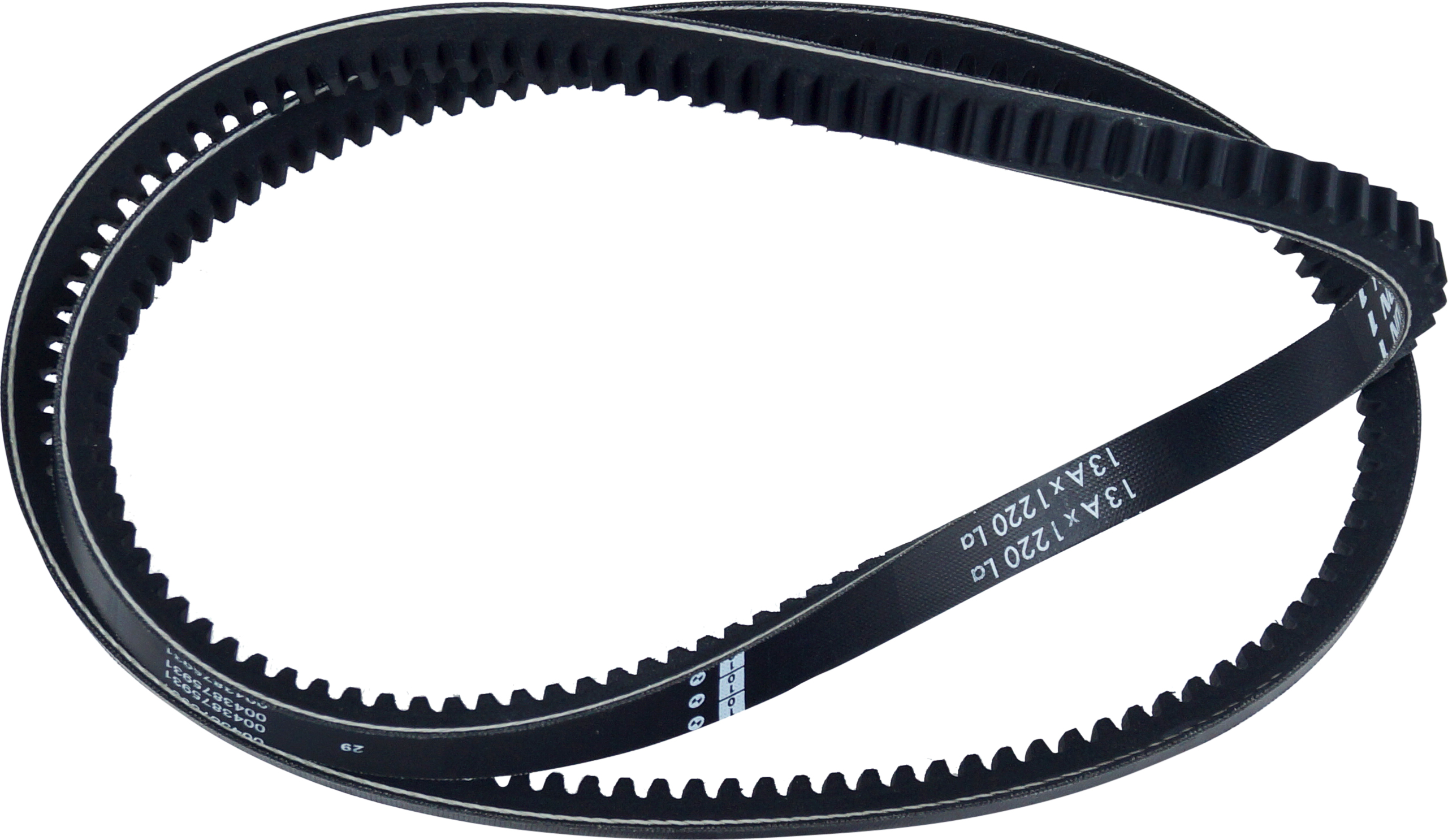

This is a 13A1220 cogged V-belt, typically used as an accessory drive belt for various automotive, industrial, and agricultural applications. It is constructed from polychloroprene (neoprene) with a polyester reinforcing cord, designed for efficient power transmission and resistance to wear, heat, and chemicals.
Specifications
| type | Cogged V-Belt |
| length | 1220mm (48 3/8 inches) |
| top width | 13mm (1/2 inch) |
| thickness | 5/16 inch |
| angle | 36 degrees |
| material | Polychloroprene (Neoprene), Polyester cord |
| resistance properties | Chemical, Grease, Heat, Oil, Ozone |
| oem cross reference | 9091602196 |
Vehicle / Equipment Applications
Automotive enginesIndustrial machineryAgricultural equipmentHVAC systemsNissan Civilian W40 (1995-1999, 4.2L TD42T engine, power steering)Nissan Civilian W41 (1999-2004, 4.2L TD42T engine, power steering)Nissan Patrol GU Y61 (1998-2007, 4.2L TD42T engine, power steering)Toyota 4 Runner VZN130 (1990-1996, 3L 3VZ-E engine, power steering)Toyota Hilux Surf VZN130 (1990-1995, 3L 3VZ-E engine, power steering)Subaru GL 1.8L Petrol EA82 (1984-1995)
Weight: 1 kg
