Compressors

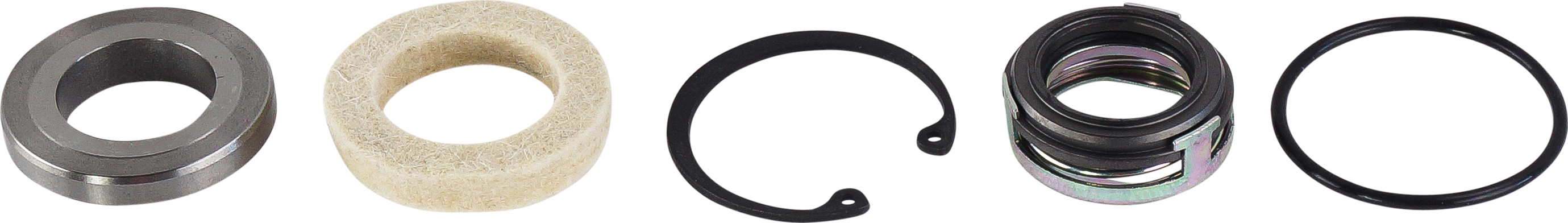

SEAL KIT, COMPRESSOR, UNICLA UWX550
COS-84770
Description
This seal kit is specifically designed for the Unicla UWX550 air conditioning compressor. The Unicla UWX550 is a 14-cylinder swashplate compressor with a displacement of 607 cc/rev, suitable for R134a refrigerant.
Specifications
| compressor model | Unicla UWX550 |
| compressor type | 14-cylinder swashplate |
| compressor displacement cc rev | 607 |
| refrigerant compatibility | R134a, R404a, R452a |
| oil type | PAG 46 or PAG56/POE68 |
| oil quantity ml | 900 |
| compressor weight kg | 25.4 |
| compressor dimensions mm | 324 x 188 x 303 |
| compressor mounting | Multi Direct Mounting (12 points, M12 x 1.75 mm threaded holes) |
| compressor clutch details | 2 Grooves "B" Ø 210 mm (for 24V models) |
| compressor voltage | 24V |
Vehicle / Equipment Applications
Bus and coach air conditioning systems
Weight: 25.4 kg
