Fittings & Hose

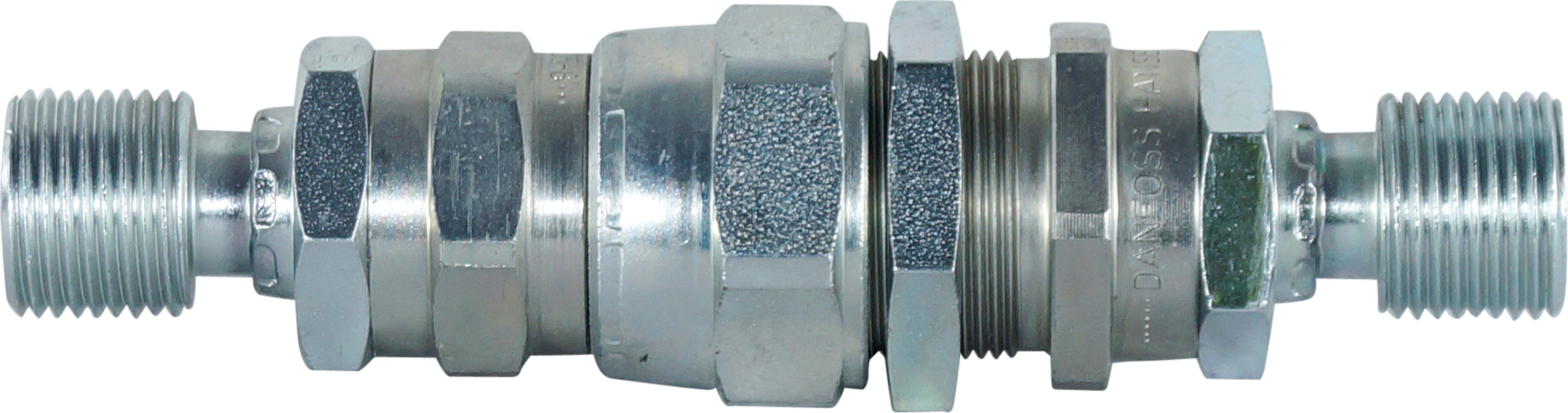

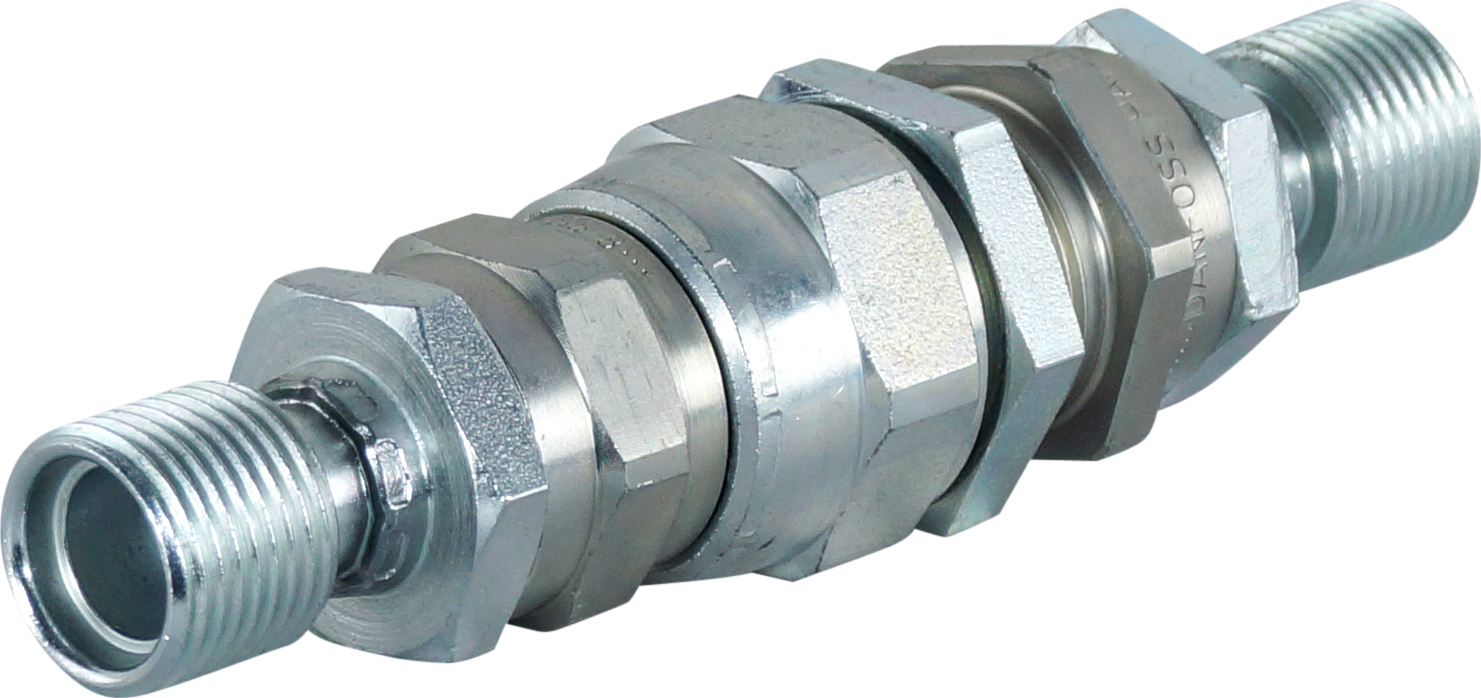

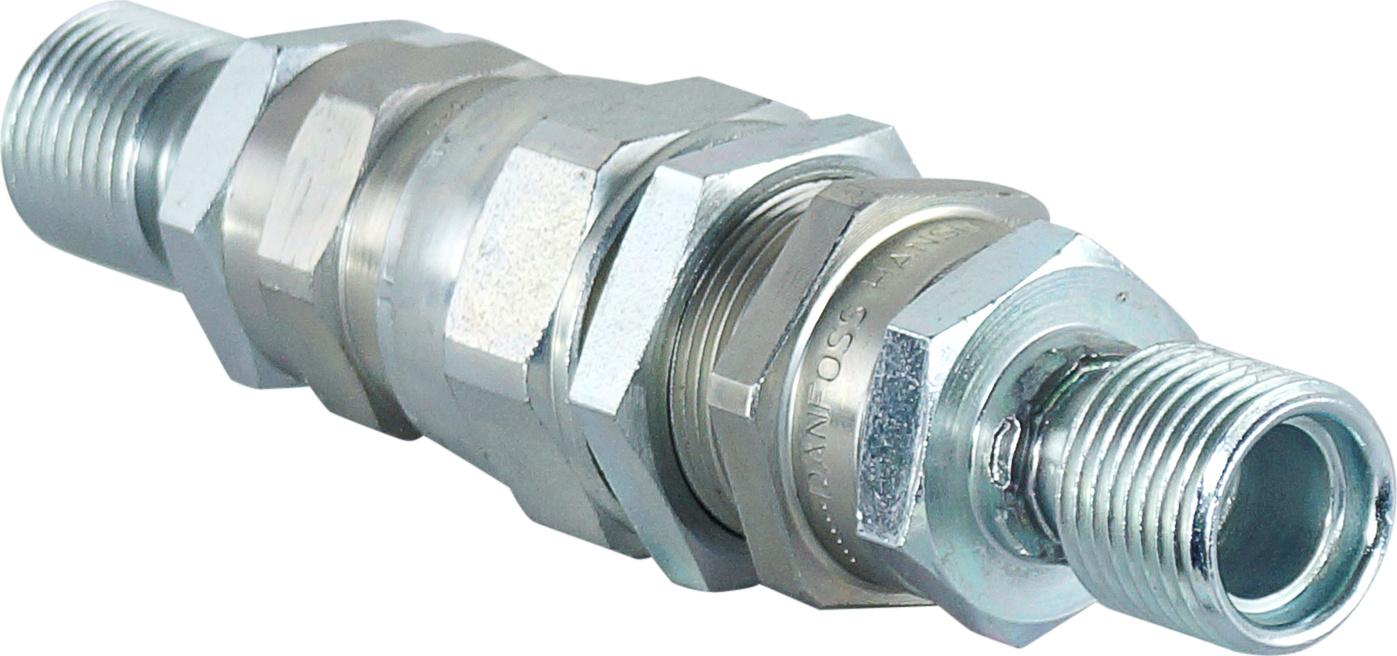

QUICK COUPLER SET, G8, 3/4 THREAD
COS-52834
Description
This quick coupler set features 3/4 inch threads, suitable for hydraulic systems. It is designed for high-flow applications and includes both male and female components for secure connections. Constructed from hardened steel with anti-corrosive plating, it offers durability in demanding environments.
Specifications
| thread size | 3/4 inch NPT or SAE |
| working pressure | Up to 5076 PSI |
| max flow rate | 52 GPM |
| material | Hardened steel with anti-corrosive plating |
| seal temperature rating | Up to 250°F (121°C) |
Vehicle / Equipment Applications
Hydraulic systems on heavy equipmentBobcat (2001 or older): 7753, 773, 863, 873, 963John Deere: 325, 328, 332GEHL: 4640, 4840, 5640, 6640Volvo: MC90, MC110ASV: RC100
Weight: 0.3 kg
