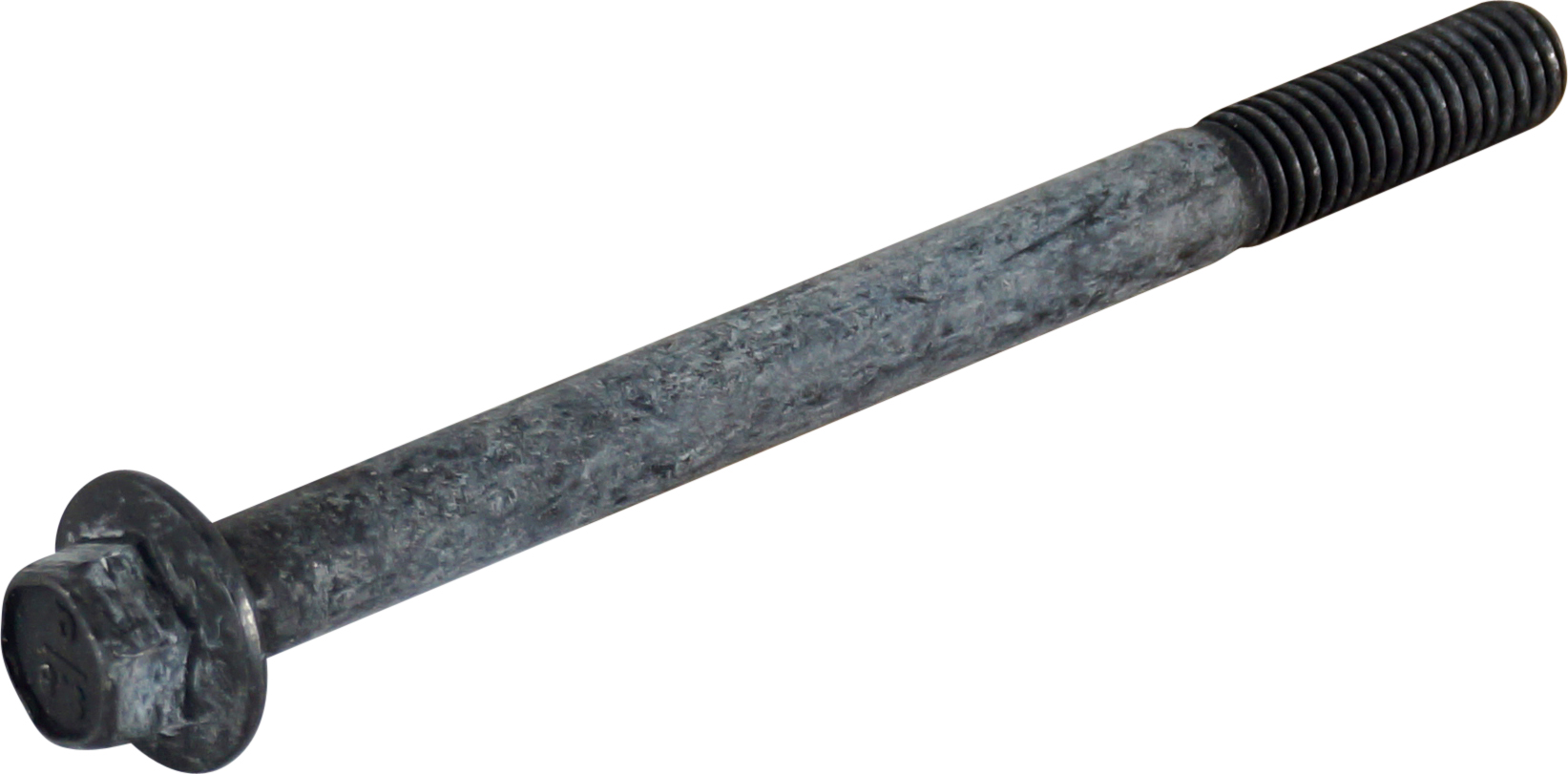

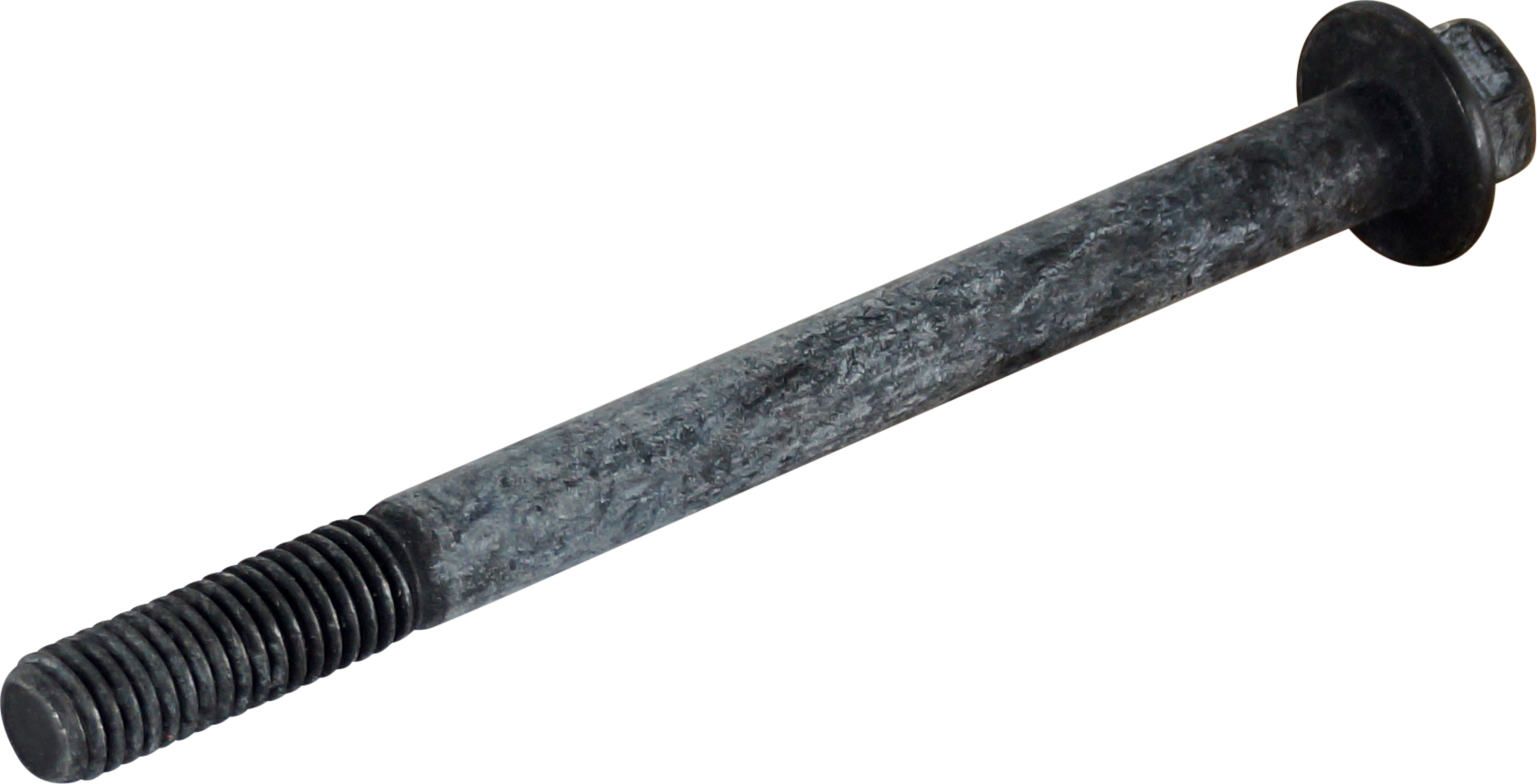

CAPSCREW - M8 X 1.25 X 100
COS-11185
Description
This metric hex head capscrew has an M8 nominal diameter, a 1.25mm coarse thread pitch, and a length of 100mm. It is suitable for applications requiring a strong, metric threaded fastener.
Specifications
| diameter | M8 |
| thread pitch | 1.25mm |
| length | 100mm |
| material options | Grade 8.8 Steel, Stainless Steel (A2-70), Class 12.9 Alloy Steel |
| grade options | ISO Class 8.8, A2-70, Class 12.9 |
| finish options | Zinc, Plain, Black Oxide |
| thread style options | Partial Thread, Full Thread |
| DIN standard options | DIN 931, DIN 933, ISO 4762 |
| wrench size | 13mm |
| head height | 5.15mm - 5.45mm |
Vehicle / Equipment Applications
Assembly and structural applicationsGeneral fastening in heavy equipment
Weight: 1 kg
