Sanden
Compressors
COMPRESSOR, VOLKSWAGEN GOLF 1992-98, SANDEN, SD7V16 1338
COR-95614
Description

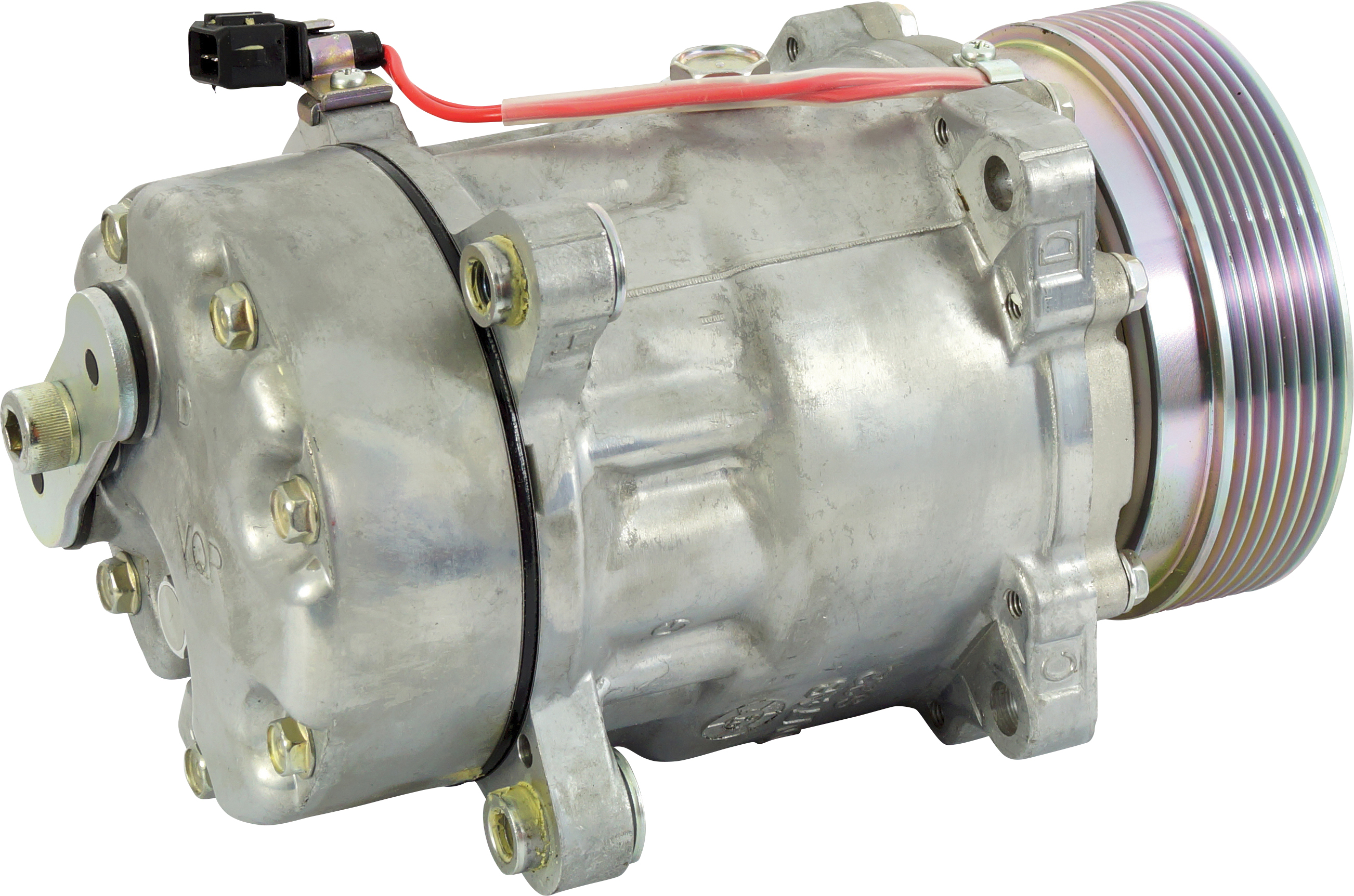

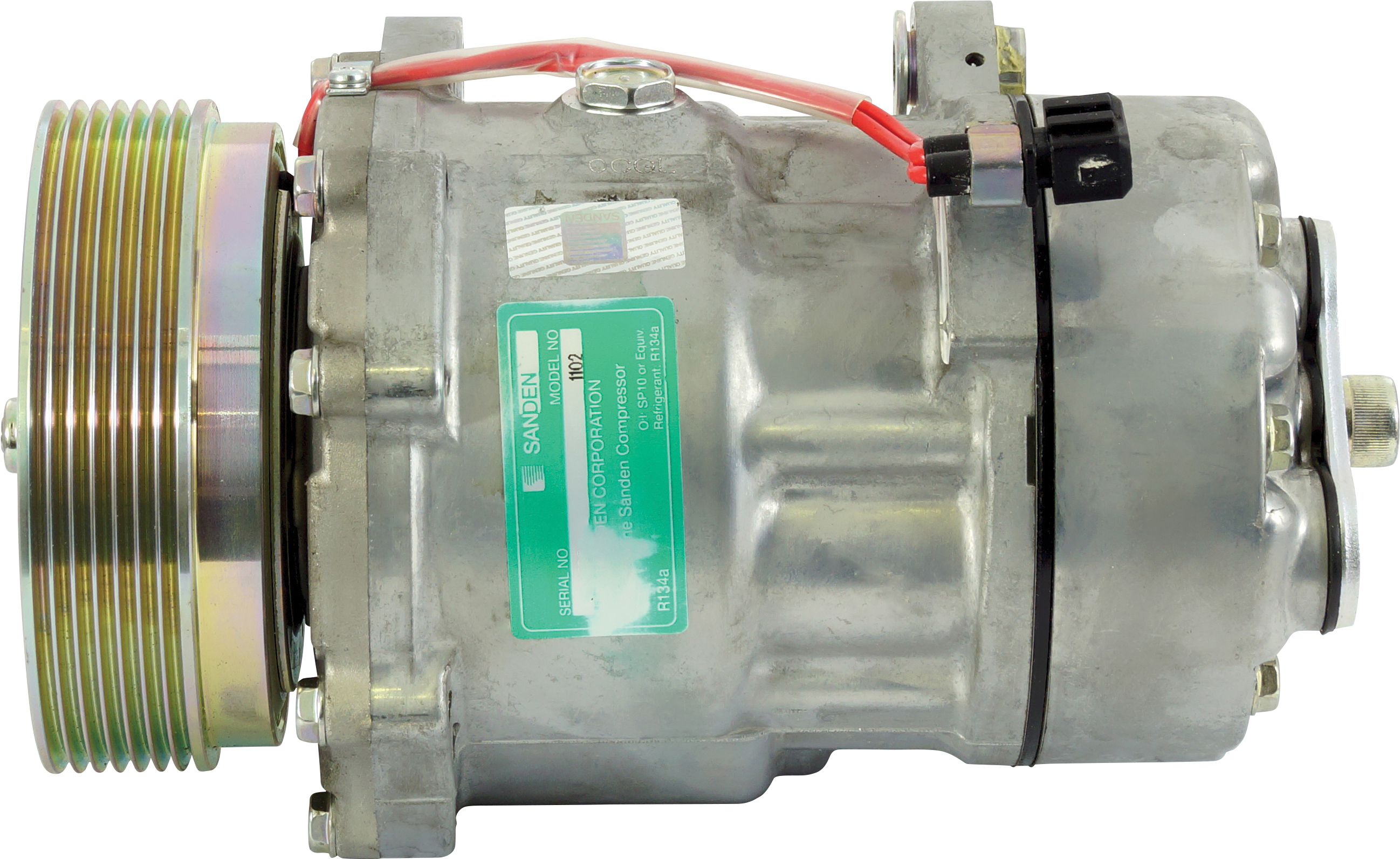

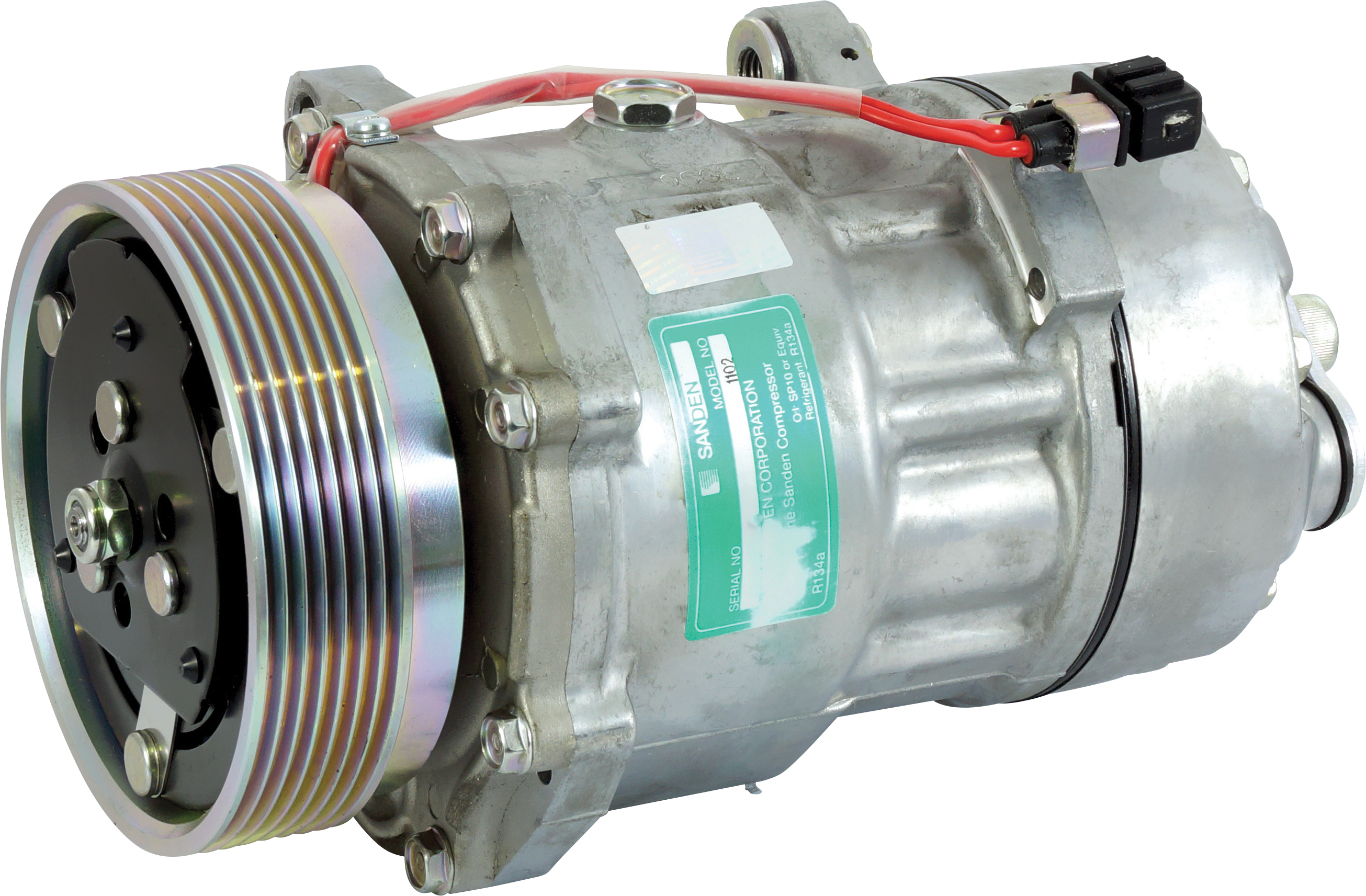

This Sanden SD7V16 AC compressor is designed for Volkswagen Golf models from 1992 to 1998. It features a 6-groove serpentine pulley with a diameter of approximately 119-120mm and operates on a 12V electrical system. The compressor has a displacement of 160cc and is compatible with R134a refrigerant, using SP-10 (PAG 46) oil.
Specifications
| compressor model | SD7V16 |
| voltage | 12V |
| pulley grooves | 6PK |
| pulley diameter mm | 119-120 |
| refrigerant type | R134a |
| oil type | Sanden SP-10 (PAG 46) |
| displacement cc | 160 |
| oem cross references | 1H0-820-803D, 1J0820803A, 1J0820803G, 7M0820803B, 4252, 1100 |
Vehicle / Equipment Applications
Volkswagen Golf (1992-1998)
Weight: 6 kg
