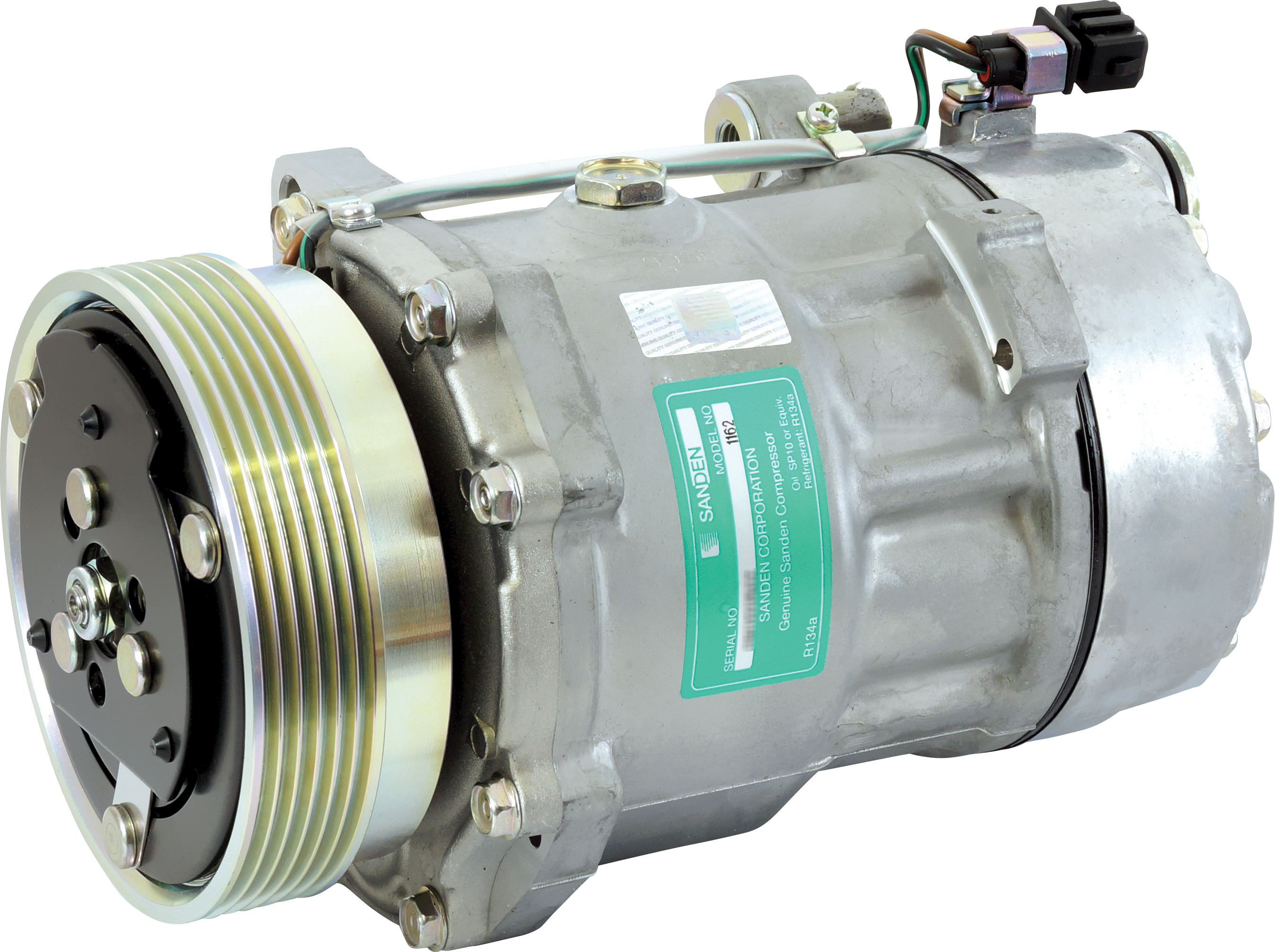

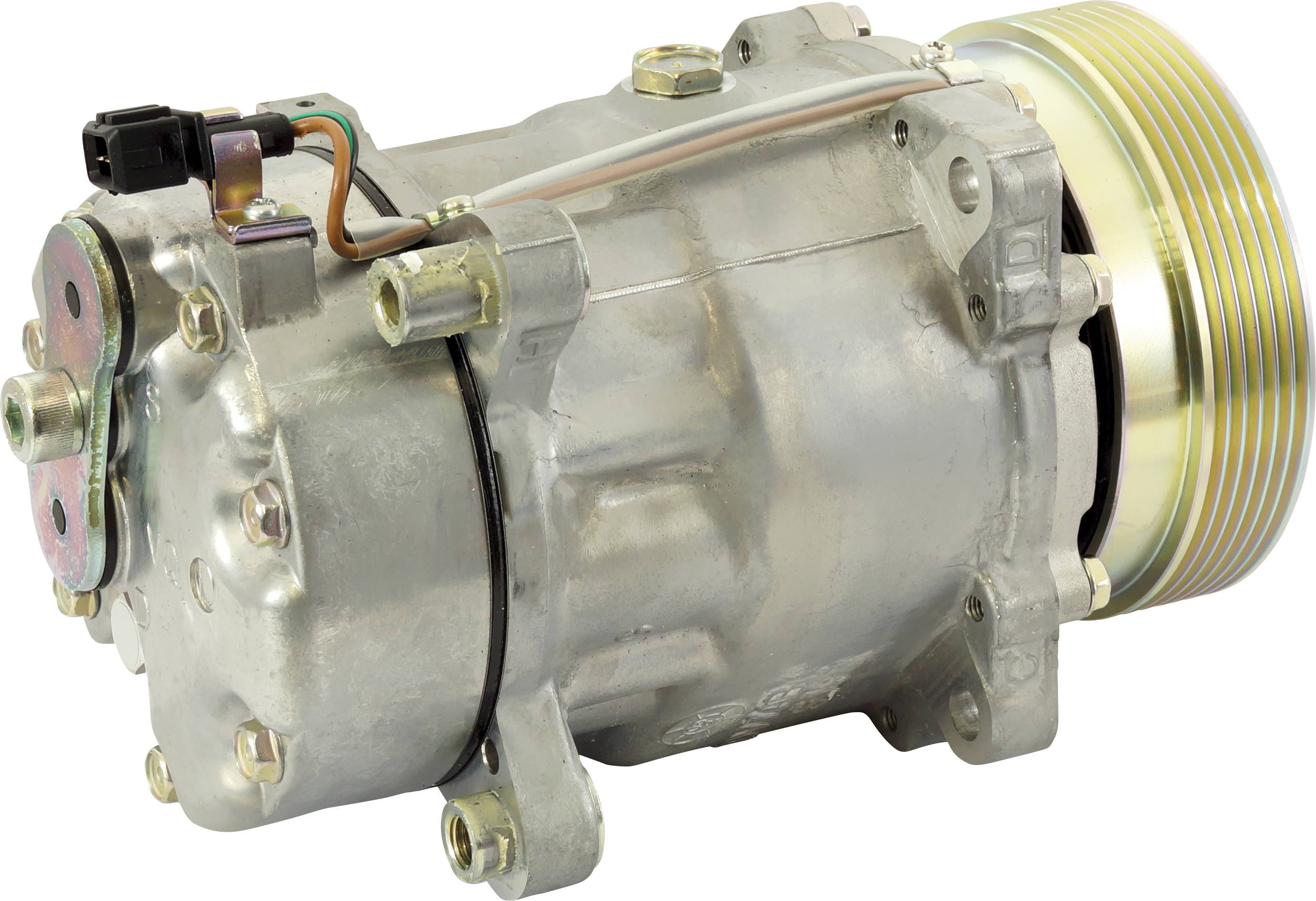

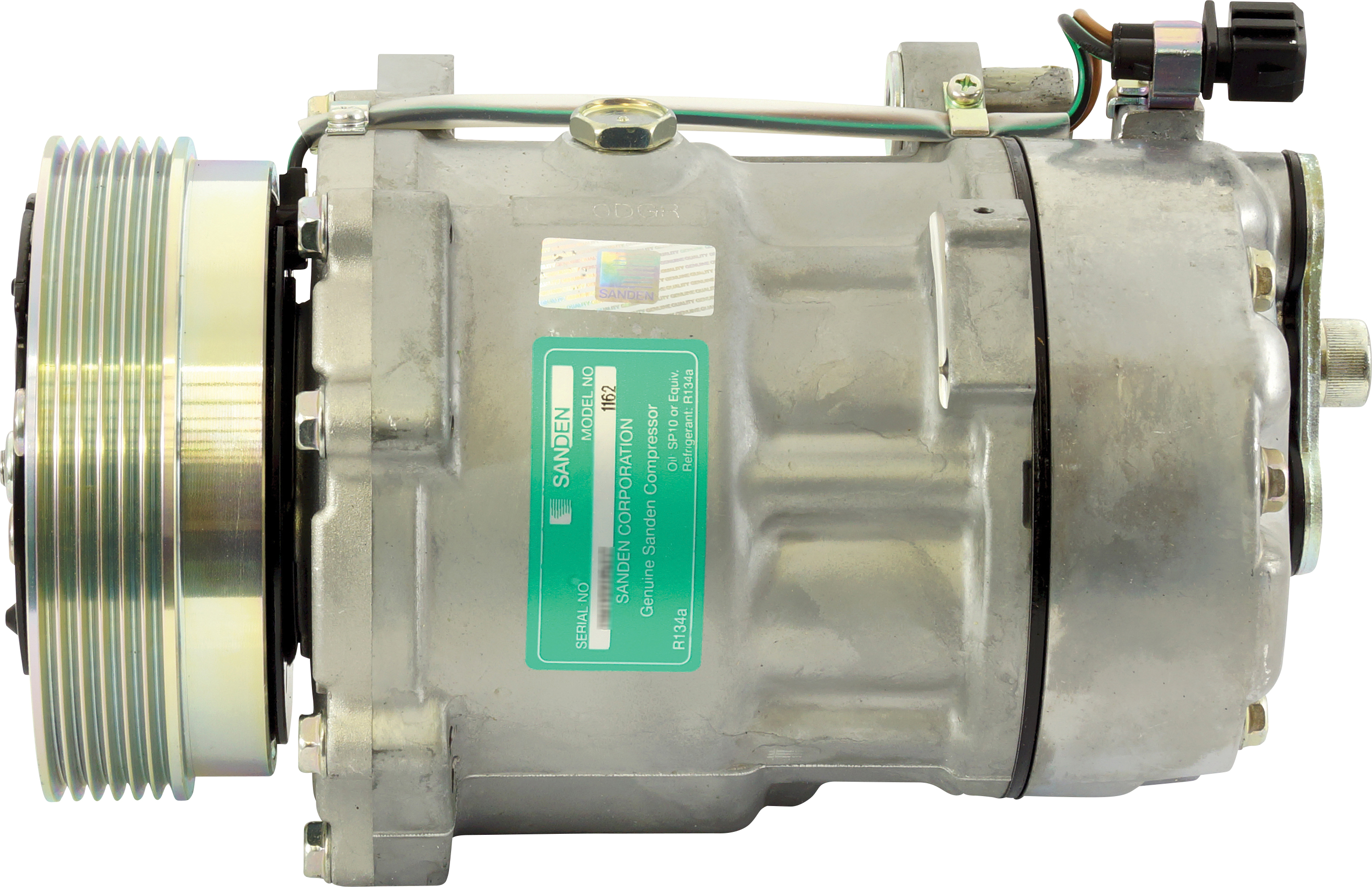

COMPRESSOR, VOLKSWAGEN GOLF SERIES-III, SANDEN, SD7V16 1100
COR-95608
Description
This Sanden SD7V16 compressor, model number 1100, is designed for R134a refrigerant systems. It features a 6-groove serpentine pulley with a 119mm diameter and operates at 12 volts. The compressor has an SDV Swing Ear 4 Left Side mount type and a horizontal port angle.
Specifications
| sanden number | 1100 |
| compressor family | SD7V16 |
| style | Standard |
| mount type | SDV Swing Ear 4 Left Side |
| rotation direction | CW |
| cylinder head | VQD |
| port angle | Horizontal |
| clutch diameter mm | 119 |
| belt type | Serpentine |
| pulley grooves | 6 |
| voltage | 12V |
| coil connector | 2 Wire VWAG |
| coil position | 12 O'clock |
| oil type | SP10 |
| oil qty cc | 115 |
| refrigerant | R134a |
| displacement cc | 160.00 |
| oem cross references | 1H0-820-803-DU, 1H0-820-803-DX, 1HO-820-803-D, 1100 (Sanden), 4252 (Sanden), CO2000CA (Sunair), 10000554 (Valeo), CO 1100JC (UAC), 1520993 (AC Delco), 0229 (AFI), 0366 (AFI), 1HO820803D (Audi/Volkswagen), 1H0820803DU (Audi/Volkswagen), 1H0820803D (Audi/Volkswagen), 1H0820803DX (Audi/Volkswagen), 10344851 (Austin Baker), 10307690 (Austin Baker), 3010311 (CARLISLE), 638858 (Compressor Works), 4717000 (Denso), 4717025 (Denso), 57591 (Four Seasons), 98591 (Four Seasons), 97591 (Four Seasons), 2041552 (Frigette), 5511665 (Global Parts Distributors), 6511665 (Global Parts Distributors), 7511665 (Global Parts Distributors), 361100NA (Hodyon), TEM254073 (NAPA), 275639 (NAPA), TEM275639 (NAPA), 254073 (NAPA), 2010781 (Omega), 2010781AM (Omega) |
Vehicle / Equipment Applications
Volkswagen Golf Series III (1993-1998 2.0L L4, 1999-2006)Volkswagen Jetta (1993, 1999-2006)Volkswagen Passat (1993)Volkswagen Cabrio (1995-2002)Volkswagen GTI (1999-2005)
Weight: 6 kg
