Sanden
Compressors

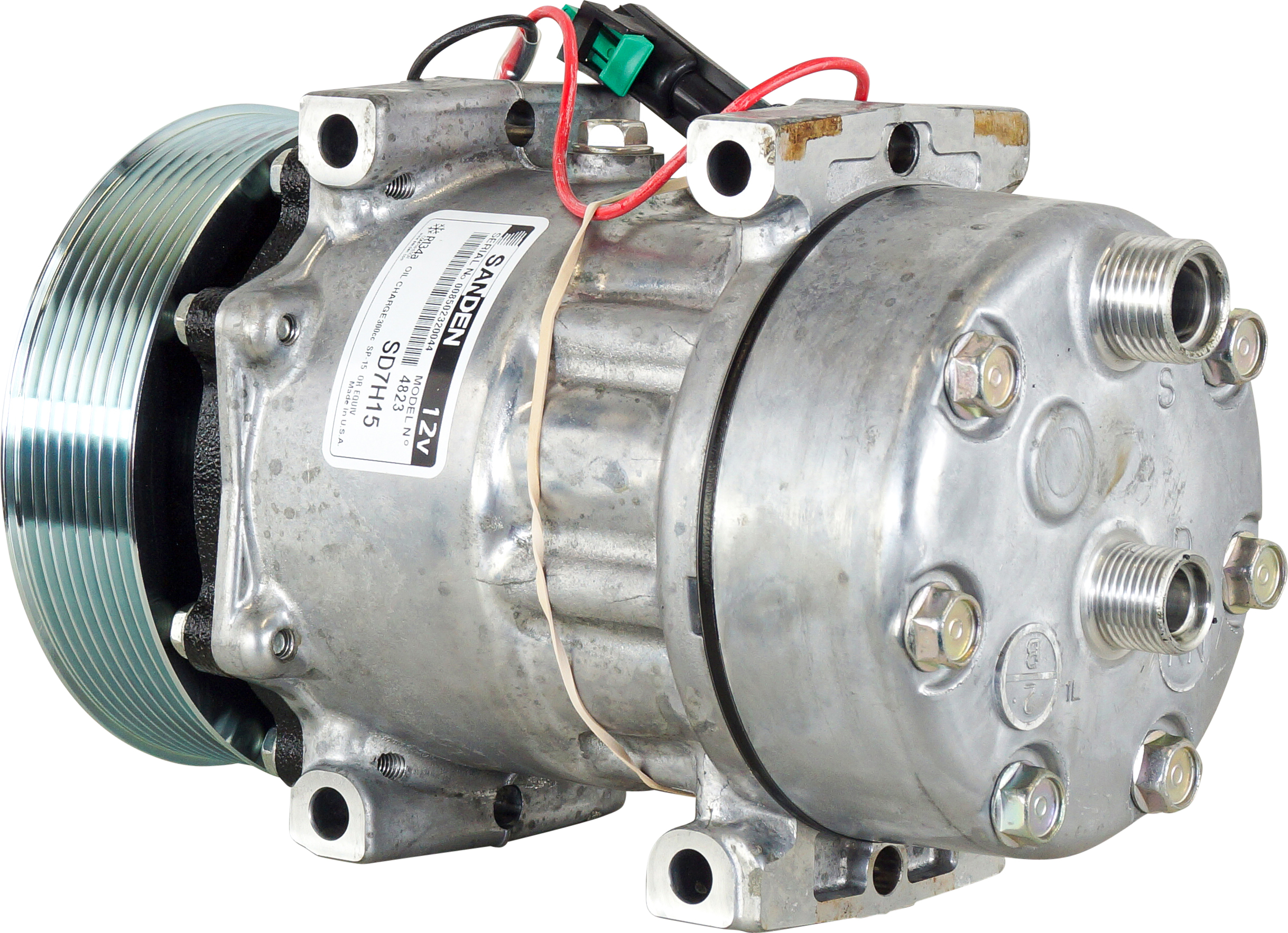

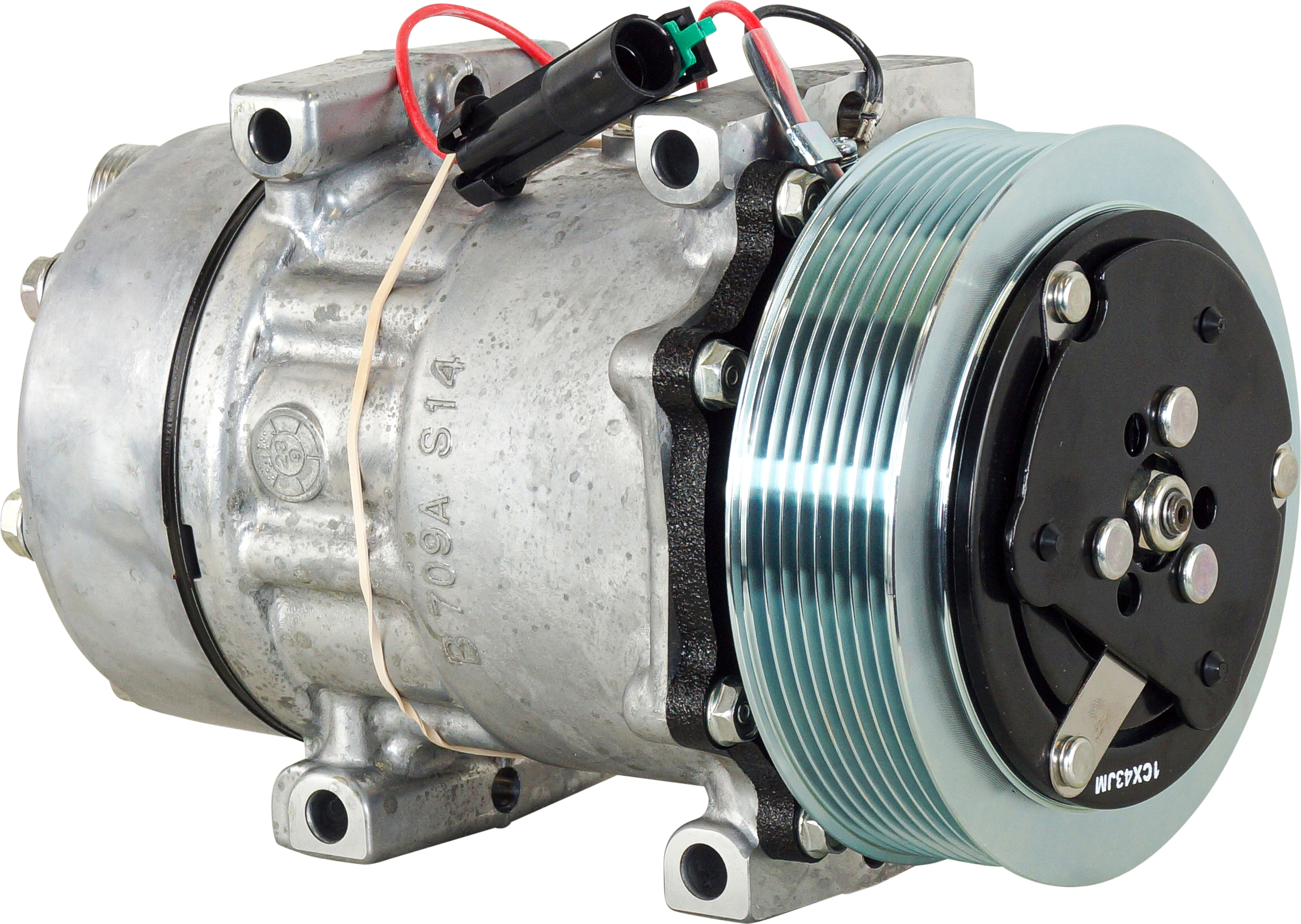

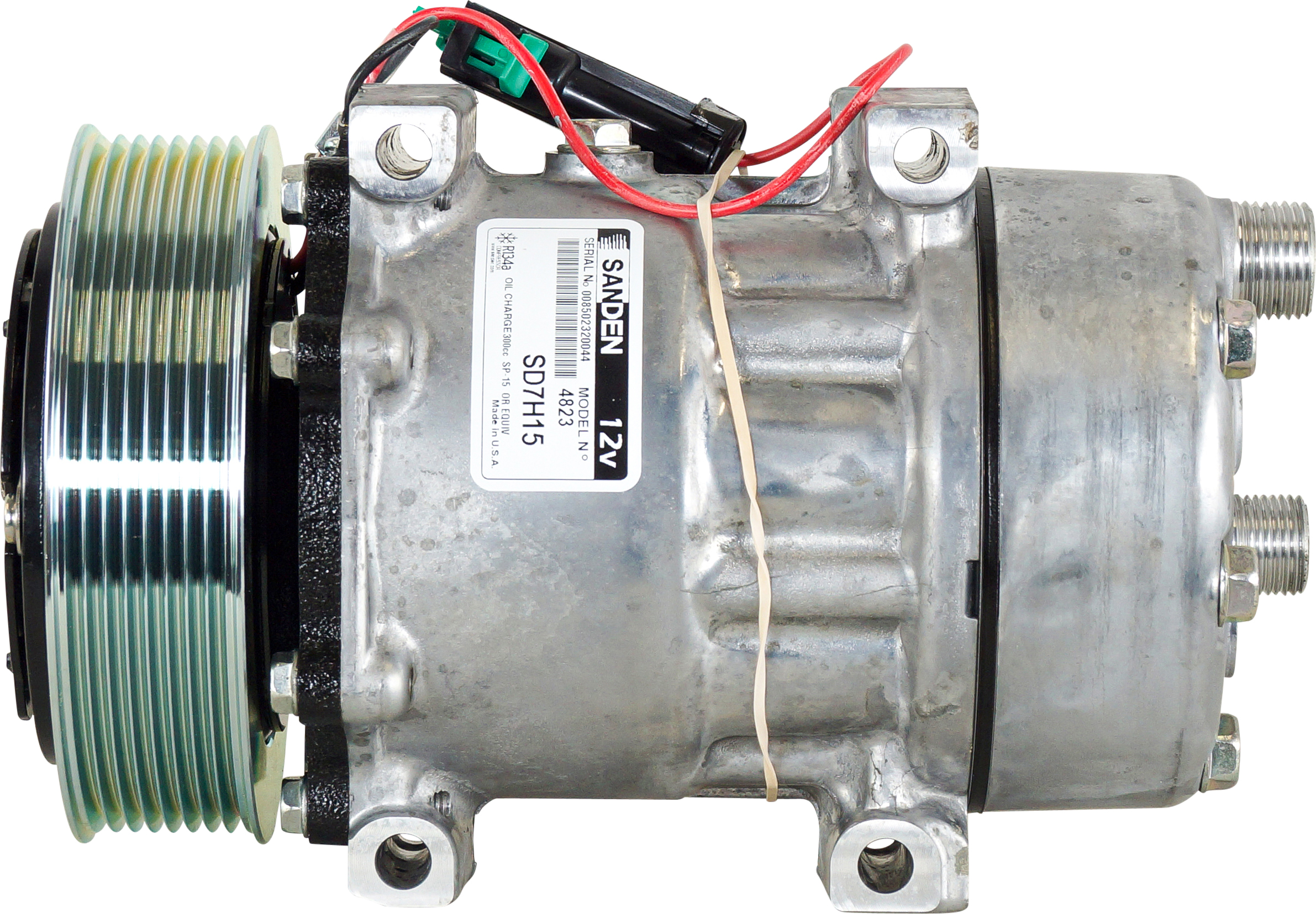

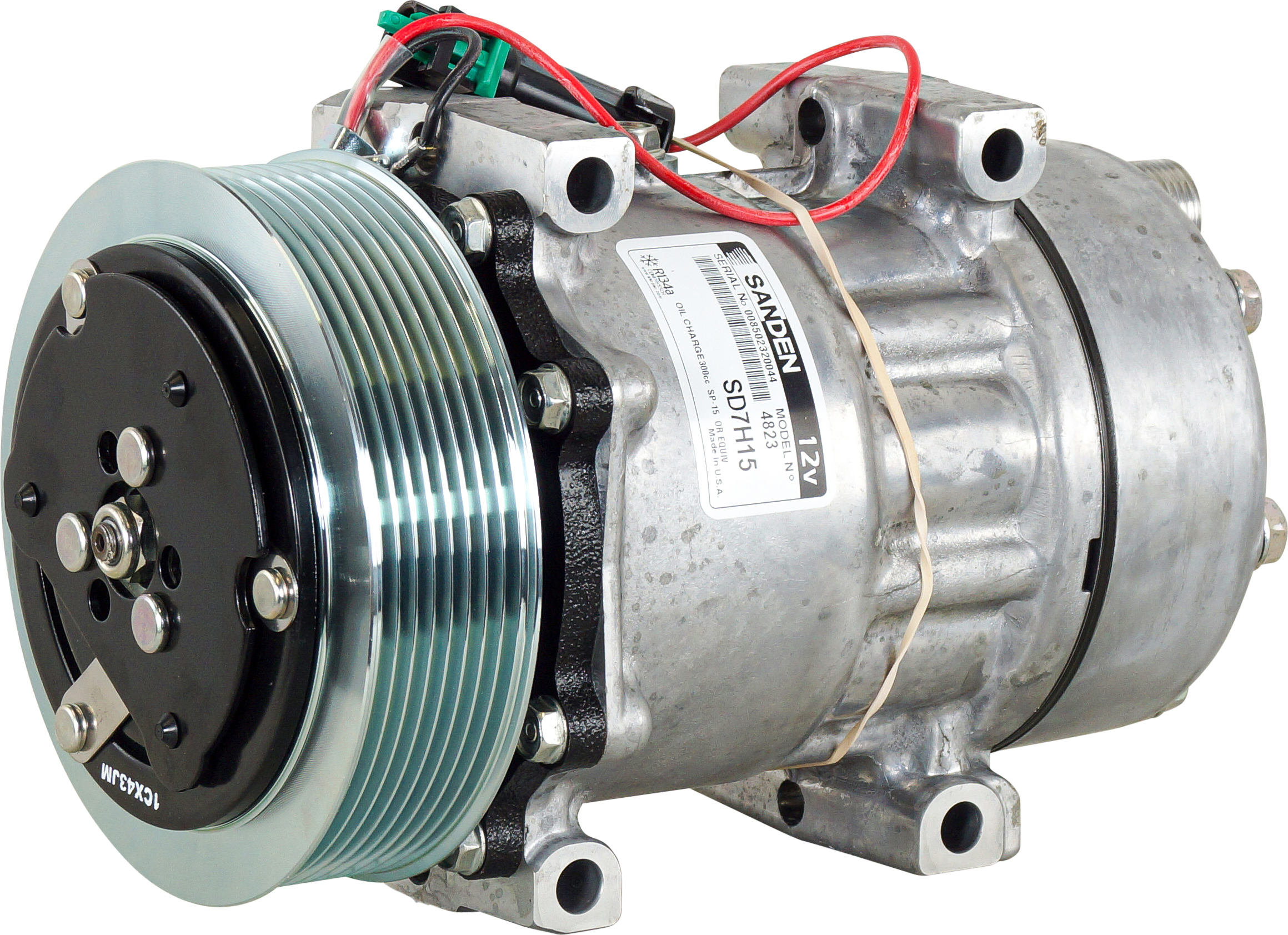

COMPRESSOR, DYNAPAC, SANDEN, SD7H15, 8PV, 12V, 130MM, HORZ O-RING HEAD
COR-81001
Description
The Sanden SD7H15 compressor is a 12V, 7-cylinder unit designed for heavy equipment applications. It features an 8-groove (8PV) serpentine clutch with a 130mm diameter and horizontal O-ring fittings. This compressor has a displacement of 154.98 cc/rev and is compatible with R134a refrigerant.
Specifications
| voltage | 12V |
| pulley grooves | 8 |
| pulley type | 8PV |
| compressor model | SD7H15 |
Weight: 6 kg
