Sanden Compressors

COMPRESSOR, SANDEN, SD7H15 4314, 12V, 8PV, 119MM, SIDE PAD, PK HEAD, DIRECT MOUNT

COMPRESSOR, SANDEN, SD7H15 4314, 12V, 8PV, 119MM, SIDE PAD, PK HEAD, DIRECT MOUNT

Name: COMPRESSOR, SANDEN, SD7H15 4314, 12V, 8PV, 119MM, SIDE PAD, PK HEAD, DIRECT MOUNT
Brand: Sanden
SKU: COR-36068

COR-36068

Pricing

View Full Details & Add to Enquiry

Description

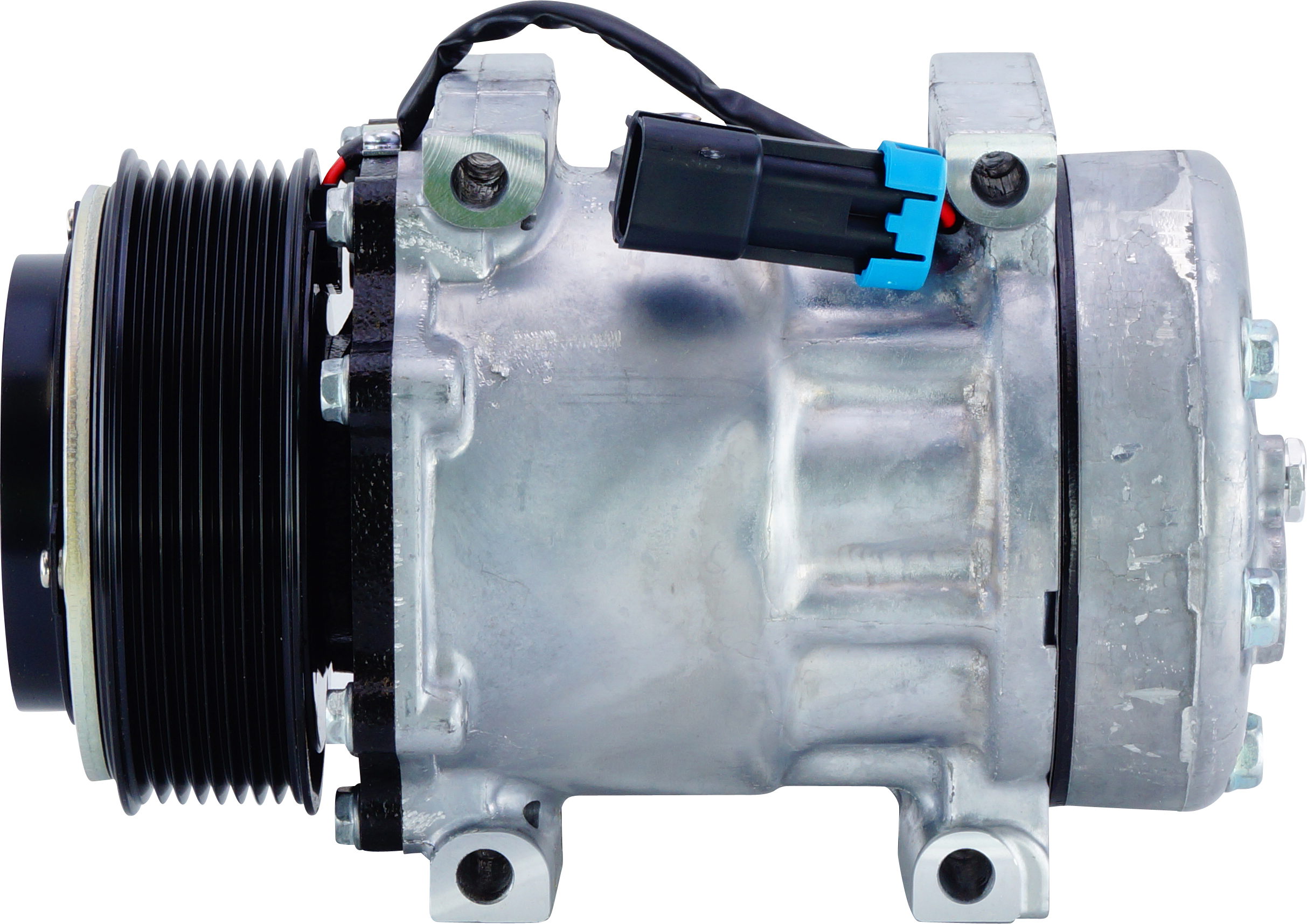

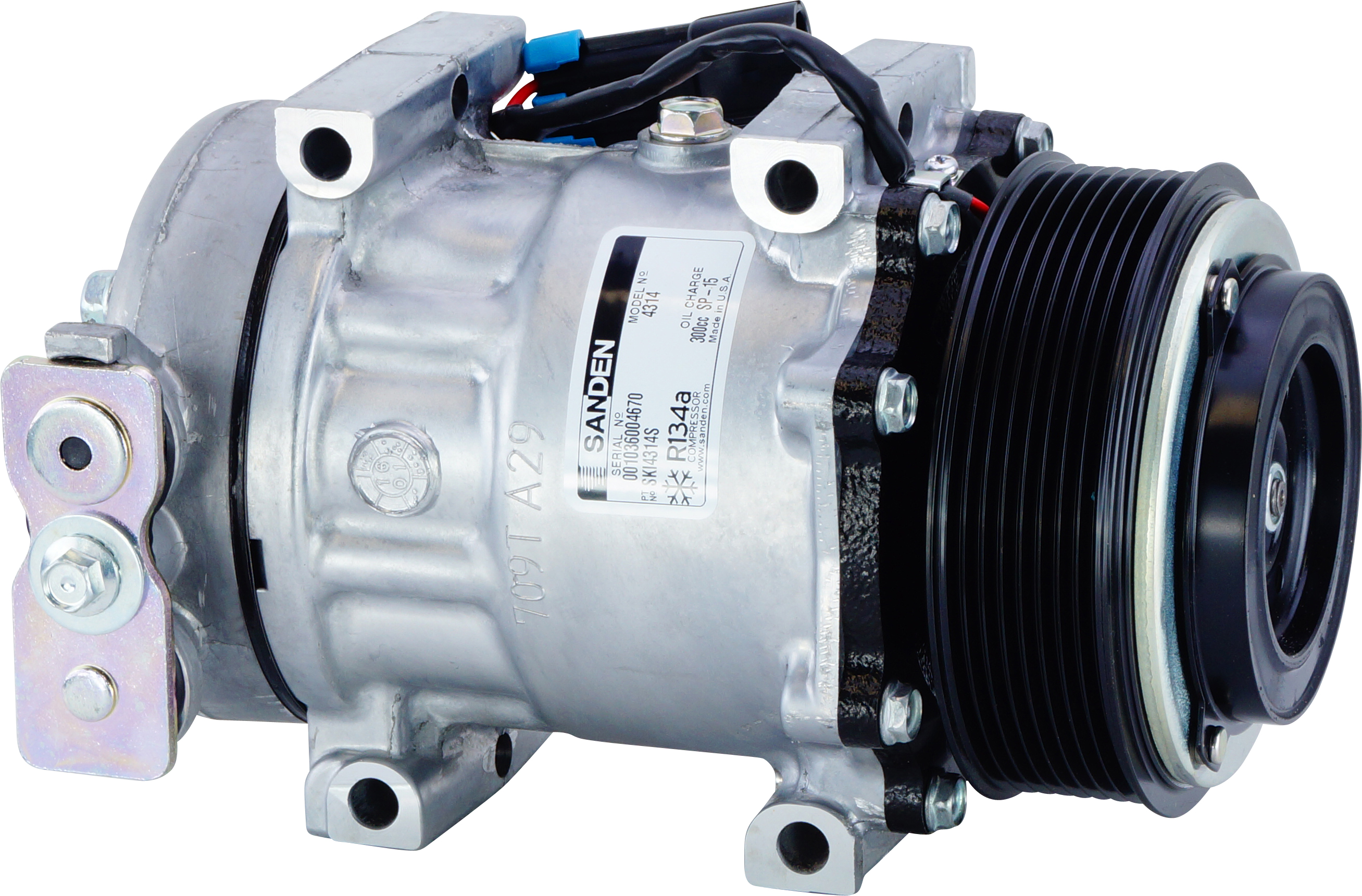

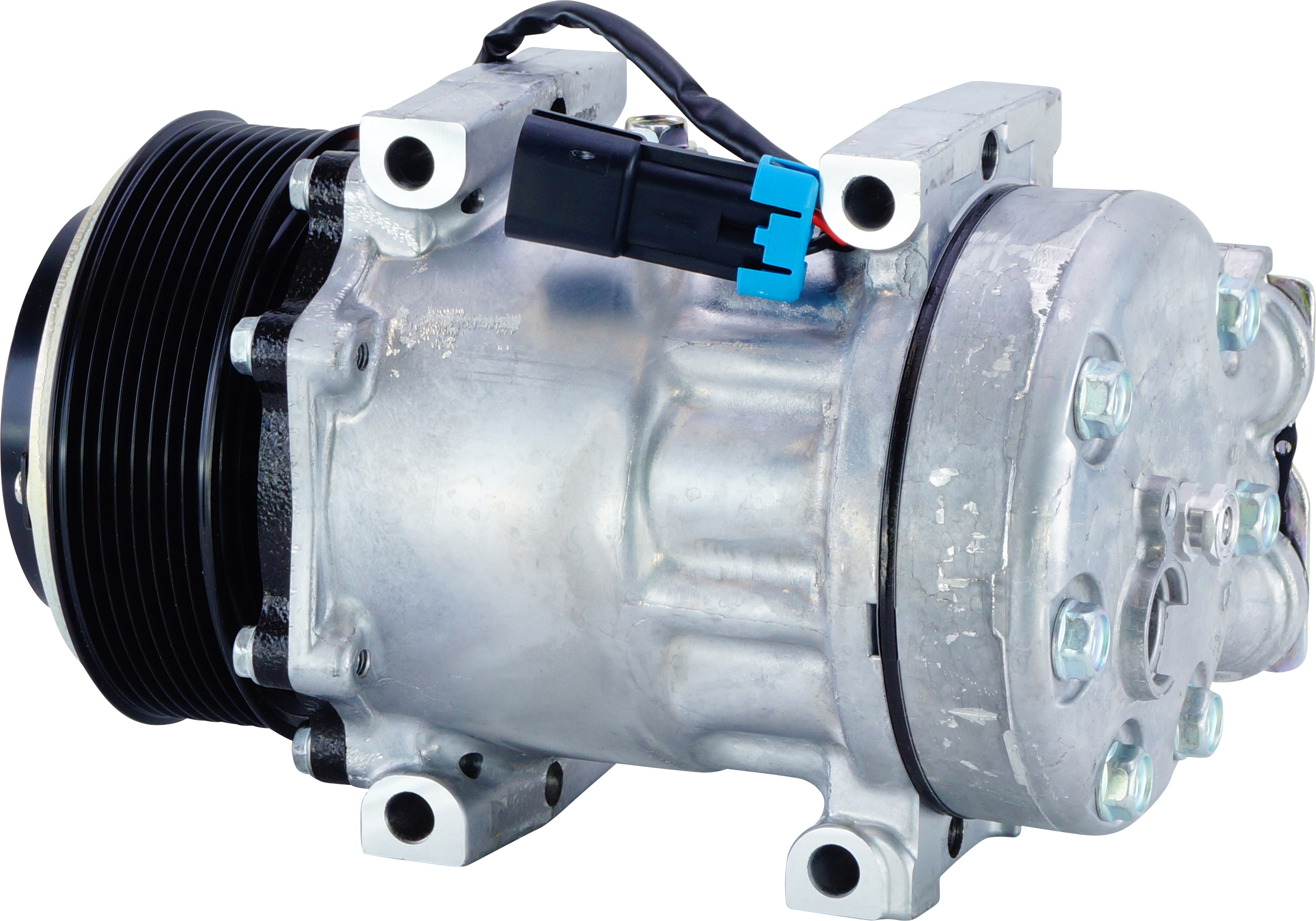

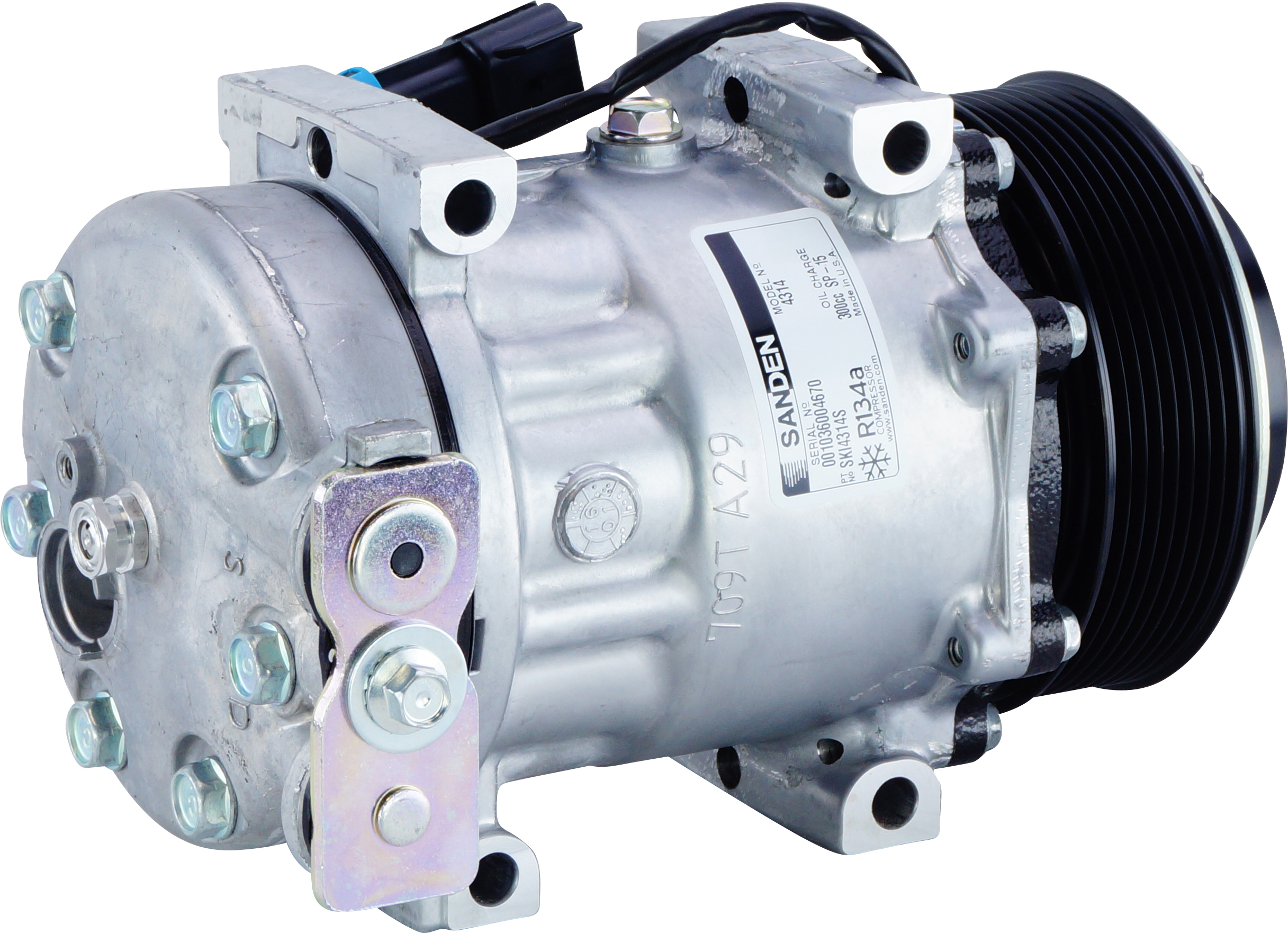

This Sanden SD7H15 4314 compressor is a 12V, 7-cylinder swash plate unit designed for R134a refrigerant systems. It features an 8-groove serpentine (8PV) pulley with a 119mm clutch diameter and a direct mount configuration. The compressor uses a 4802 cylinder head with a vertical pad port style.

Specifications

voltage	12V
pulley grooves	8
pulley type	8PV
compressor model	SD7H15

Weight: 6 kg
