Sanden
Compressors

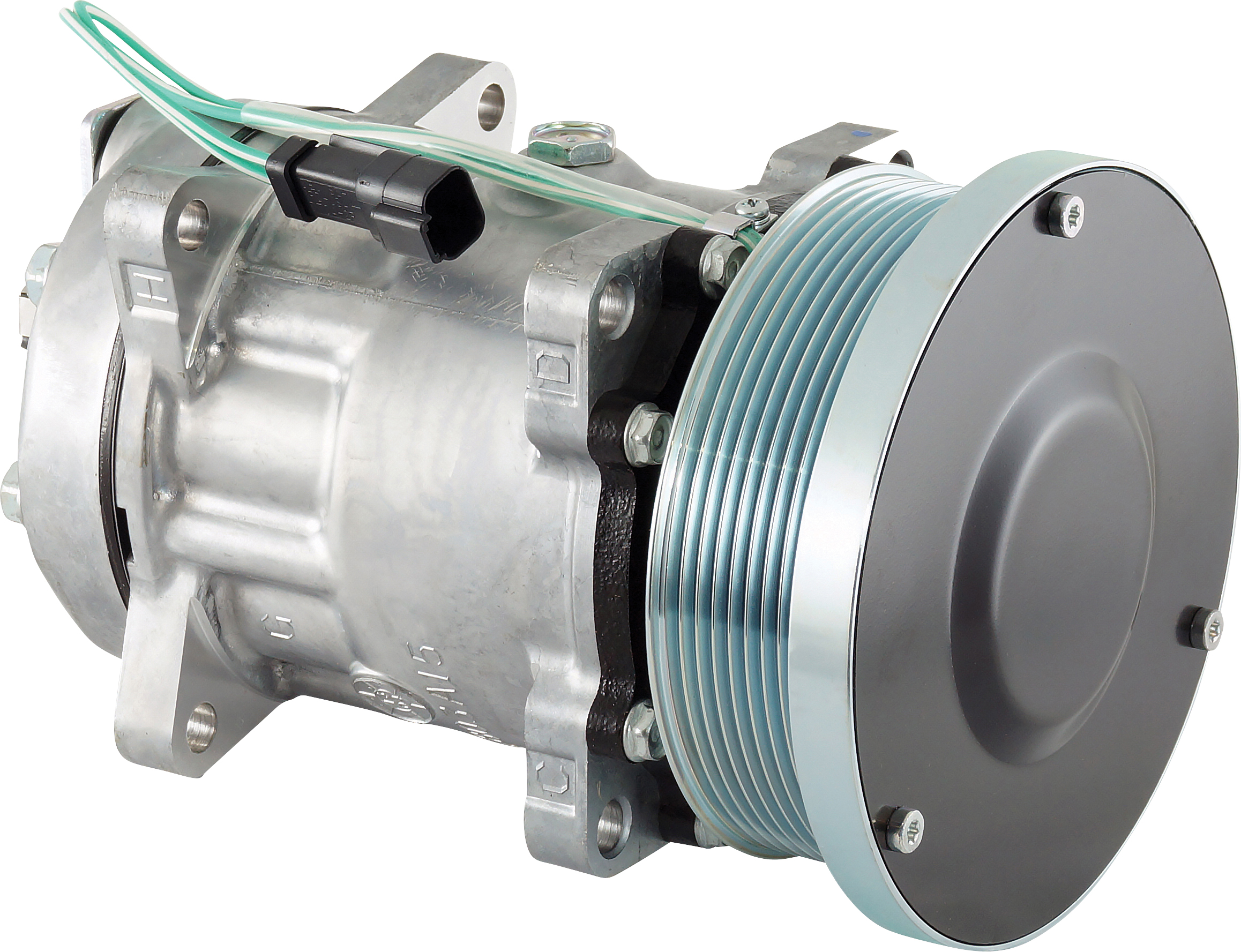

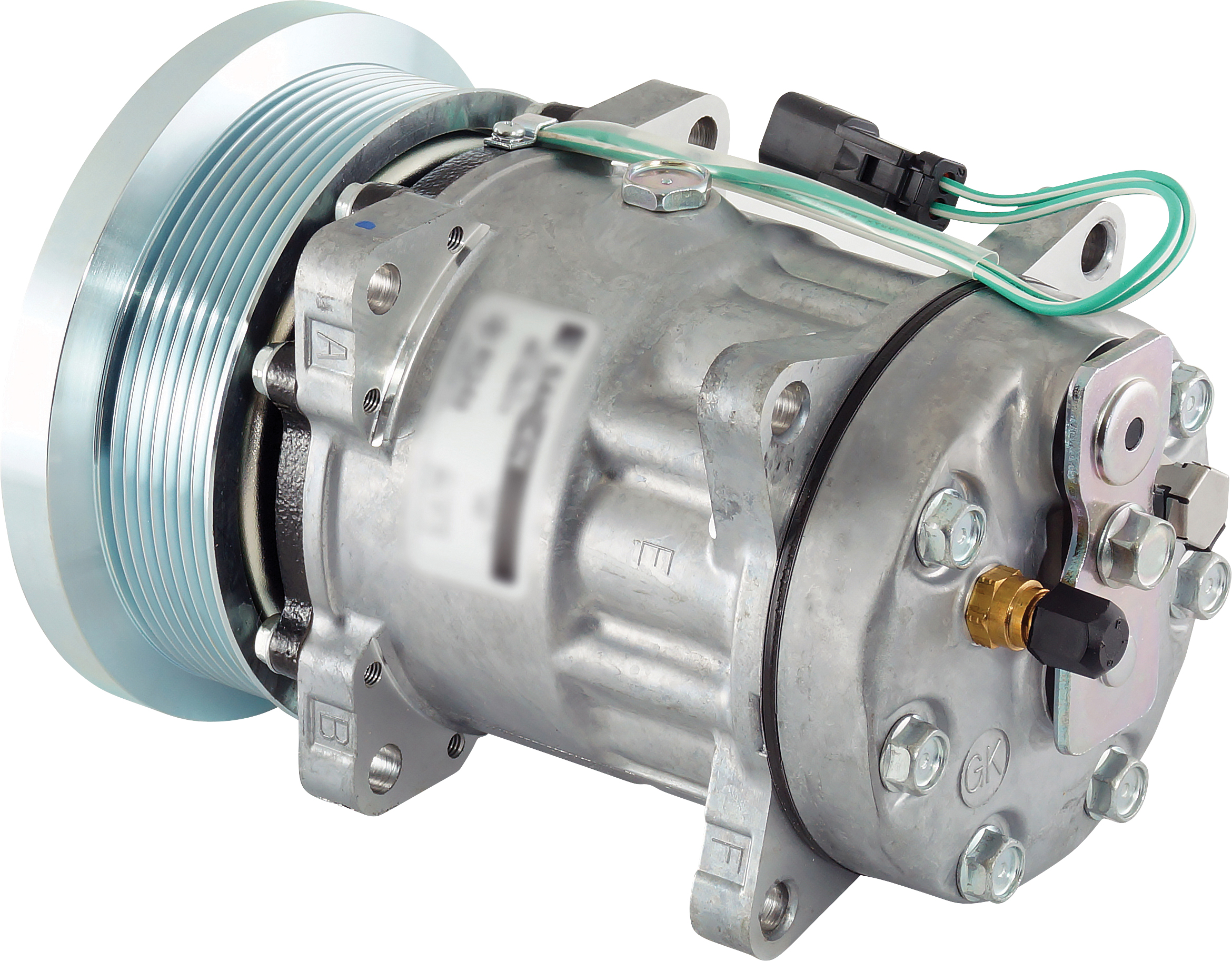

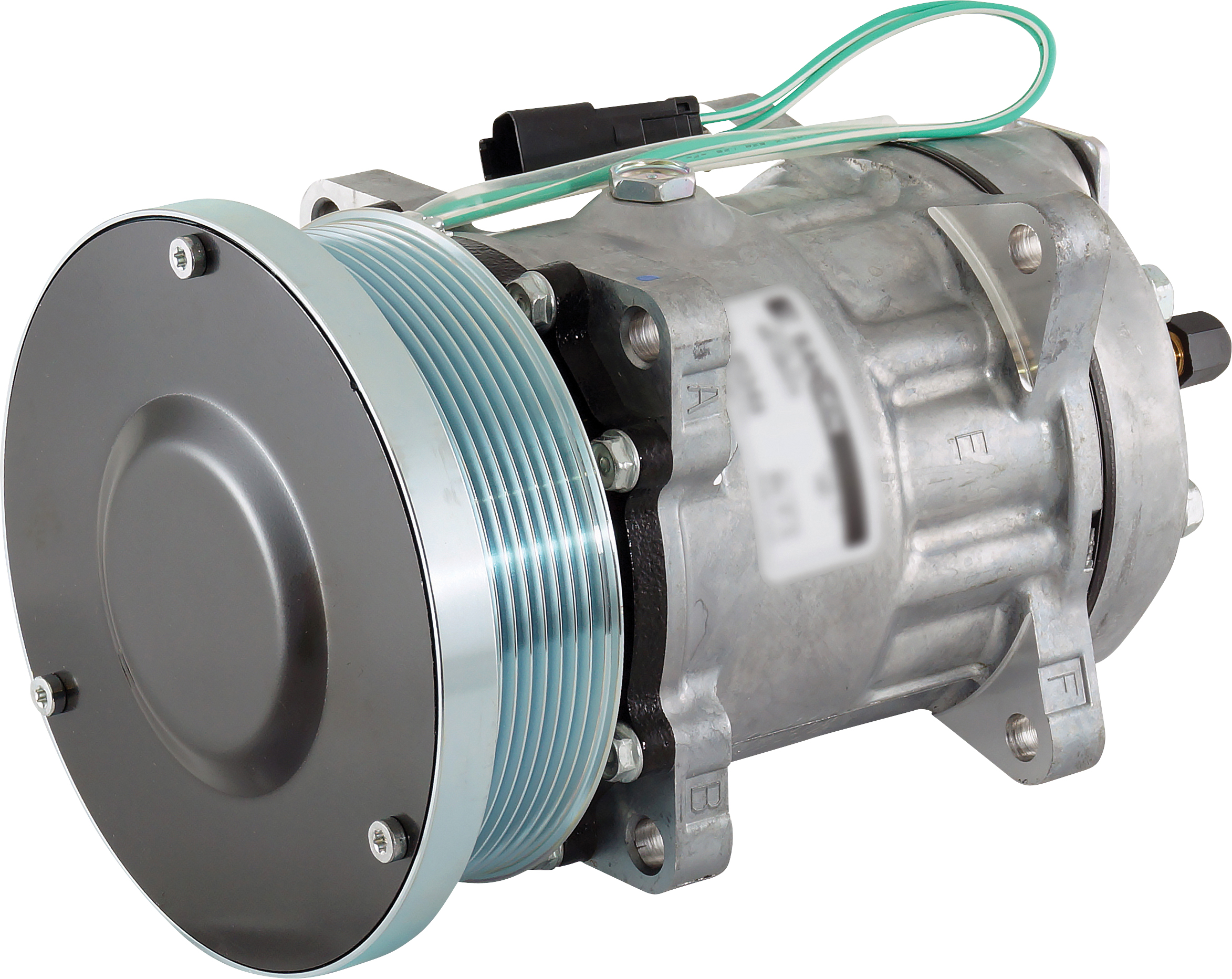

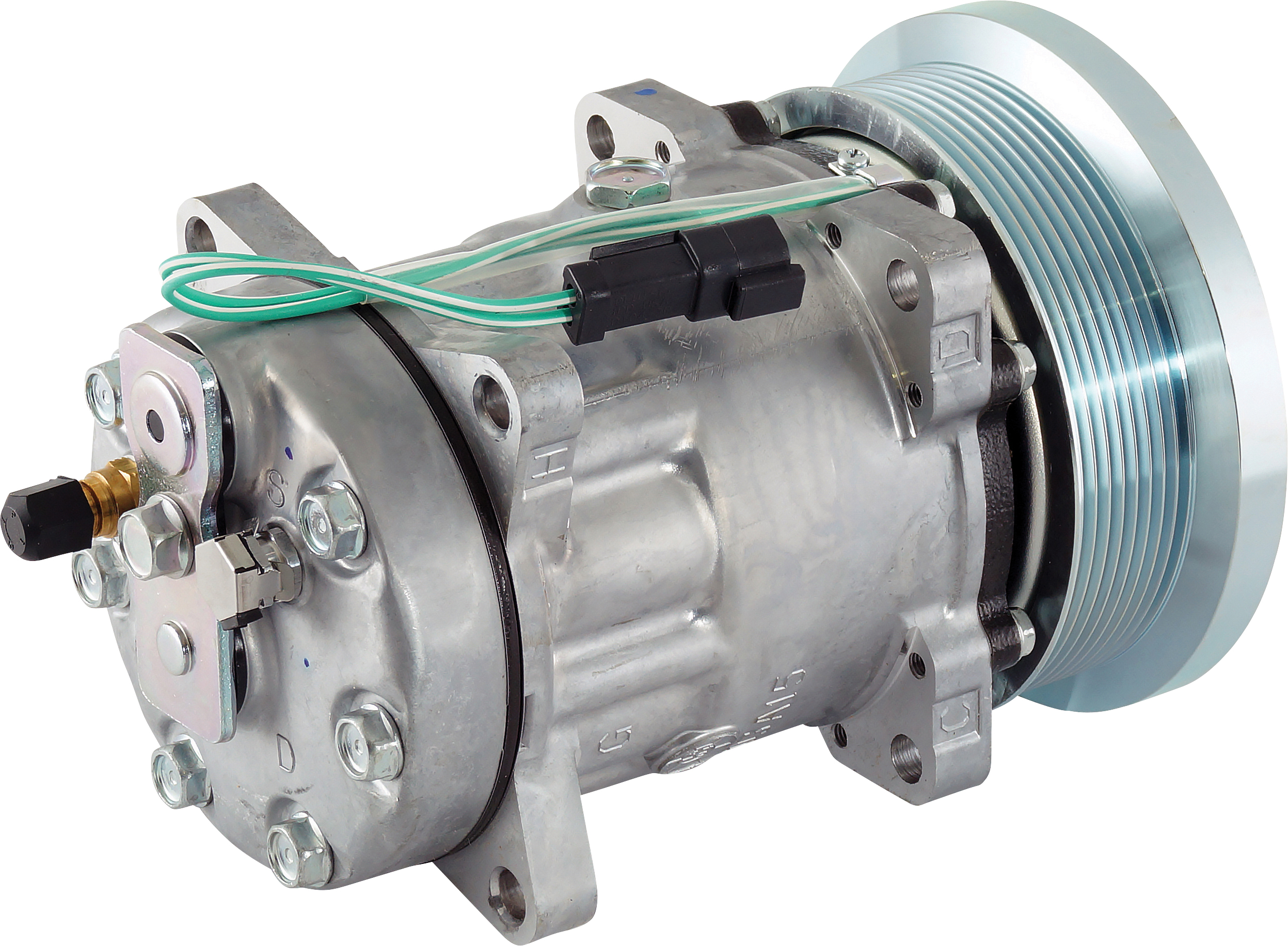

COMPRESSOR, CATERPILLAR, SANDEN, SD7H15 U4726, 24V, 8PV, 133MM, REAR PAD
COR-18416
Description
This Sanden SD7H15 air conditioning compressor is designed for Caterpillar heavy equipment. It operates on a 24V electrical system and features an 8-groove, 133mm serpentine clutch pulley with a horizontal pad mount. The compressor is compatible with R134a refrigerant.
Specifications
| voltage | 24V |
| pulley grooves | 8 |
| pulley type | 8PV |
| compressor model | SD7H15 |
Vehicle / Equipment Applications
Caterpillar
Weight: 6 kg
