Sanden
Compressors

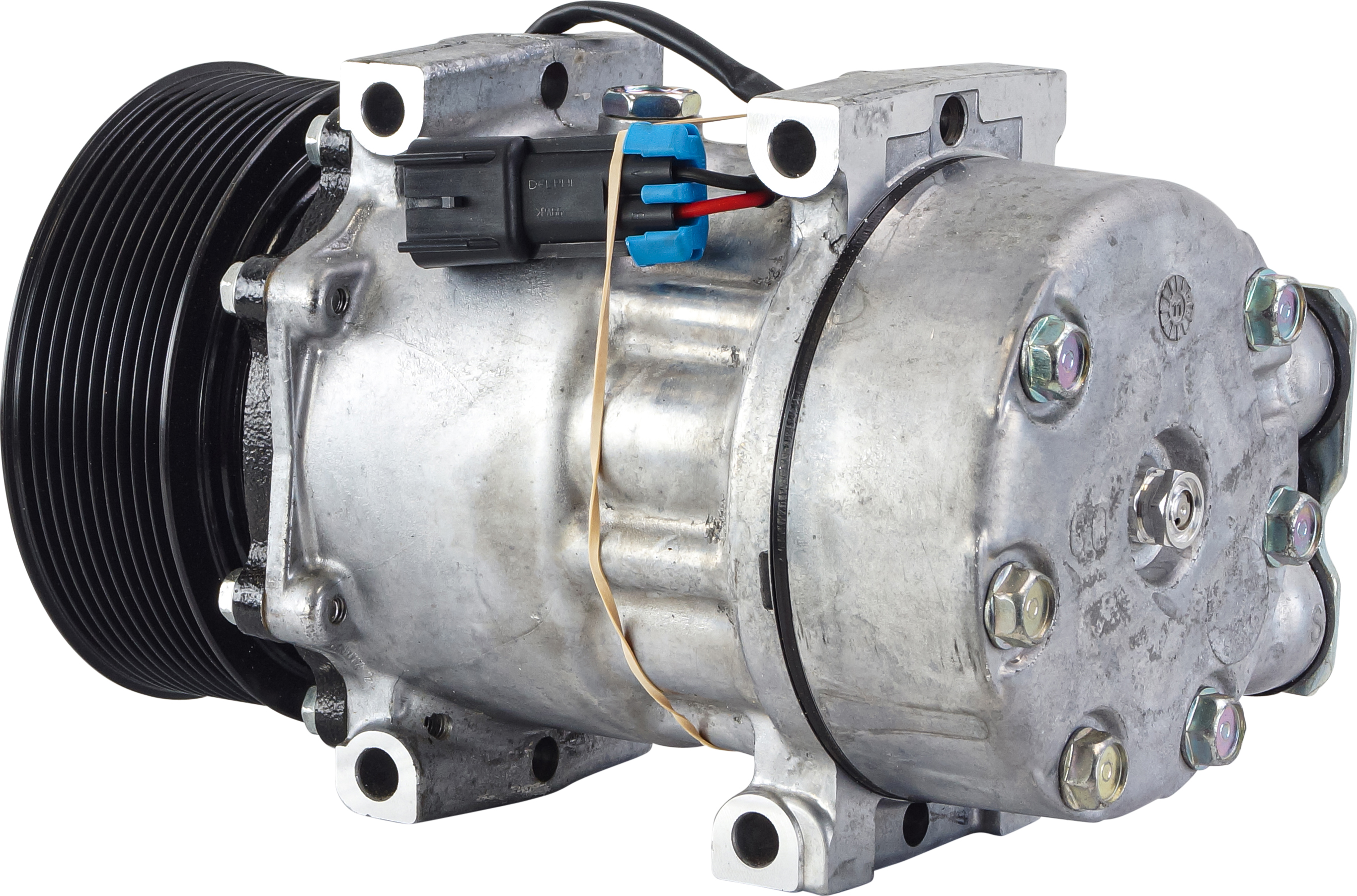

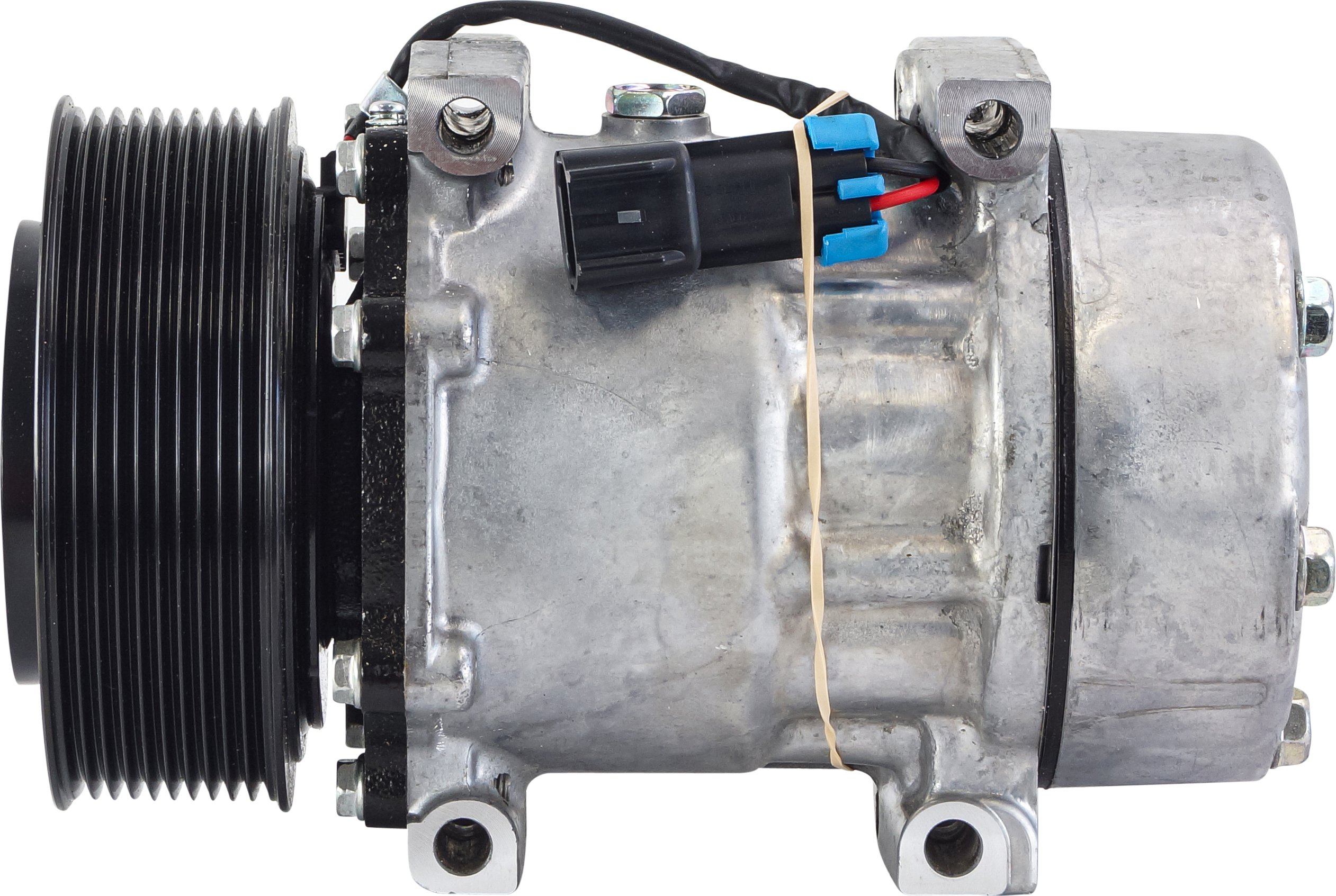

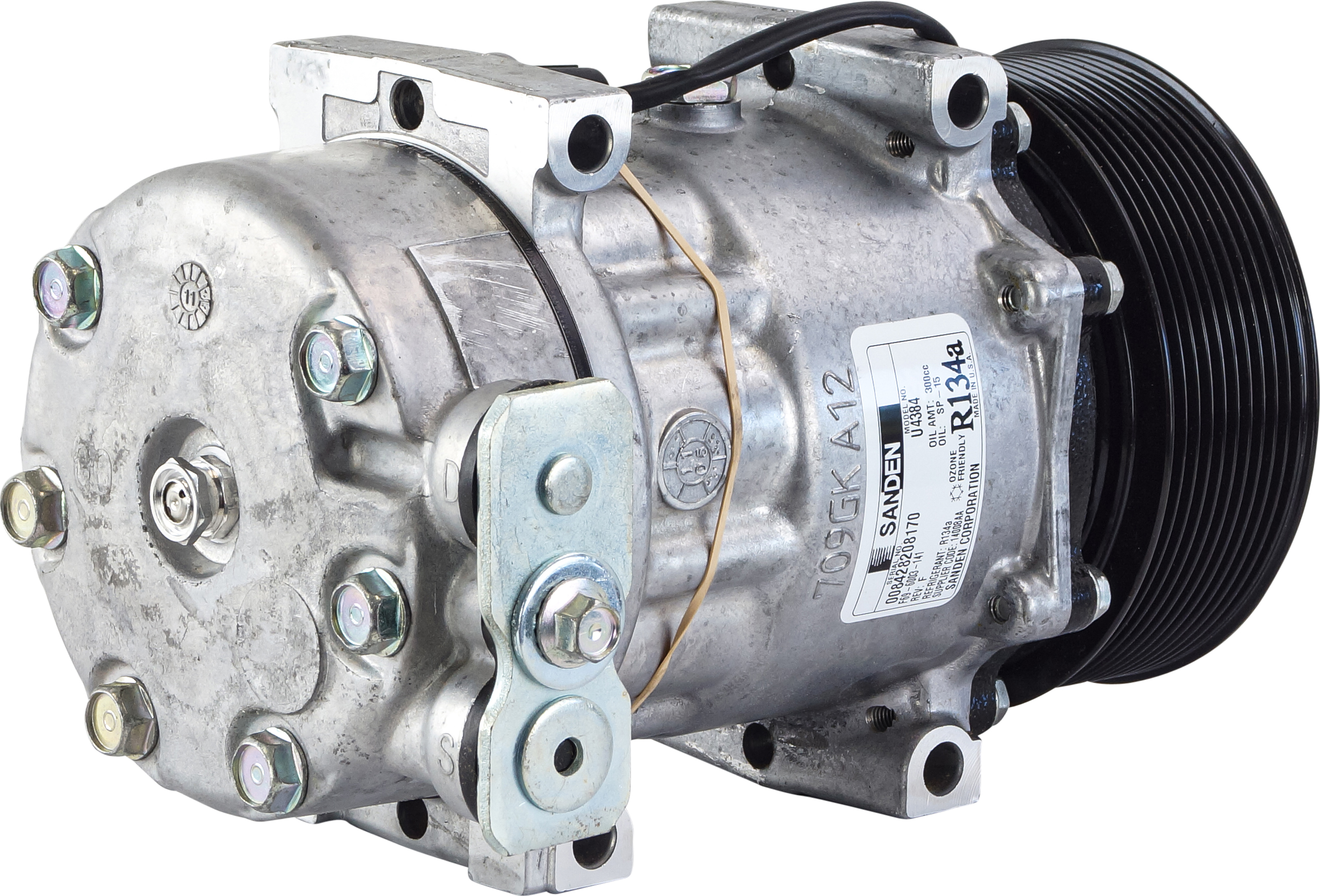

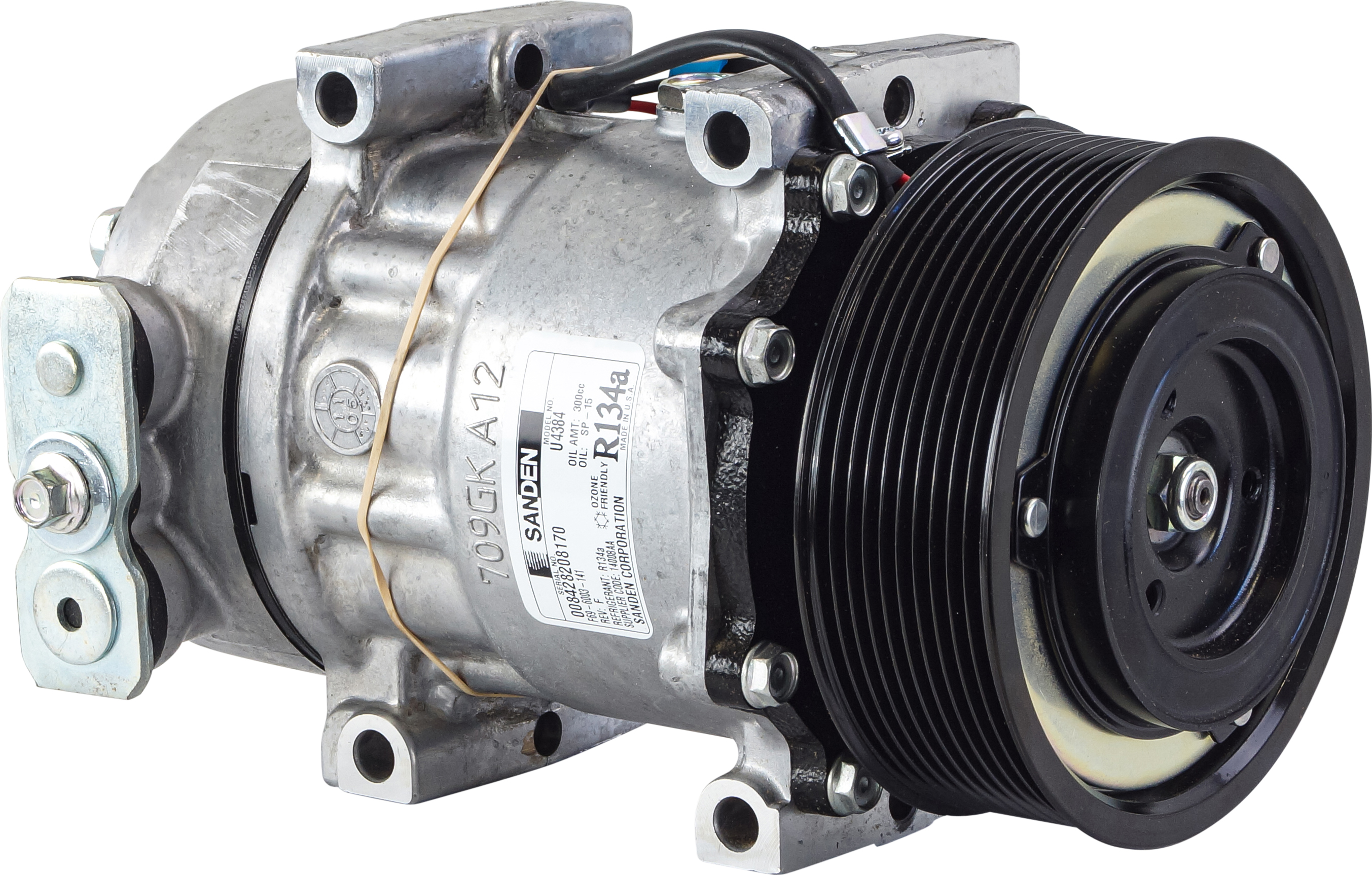

COMPRESSOR, SANDEN, SD7H15 4384, 12V, 10PV, 126MM, GQ PAD, DIRECT MOUNT, R134A
CO-56890
Description
This Sanden SD7H15 4384 compressor is a 12V, 7-cylinder unit from the Super Heavy Duty family, operating with R134a refrigerant. It features a 10-groove serpentine clutch with a 126mm diameter and a GQ cylinder head with vertical O-ring pad ports, designed for direct mounting.
Specifications
| voltage | 12V |
| pulley grooves | 10 |
| pulley type | 10PV |
| compressor model | SD7H15 |
| refrigerant | R134A |
Weight: 6 kg
