Sanden
Compressors

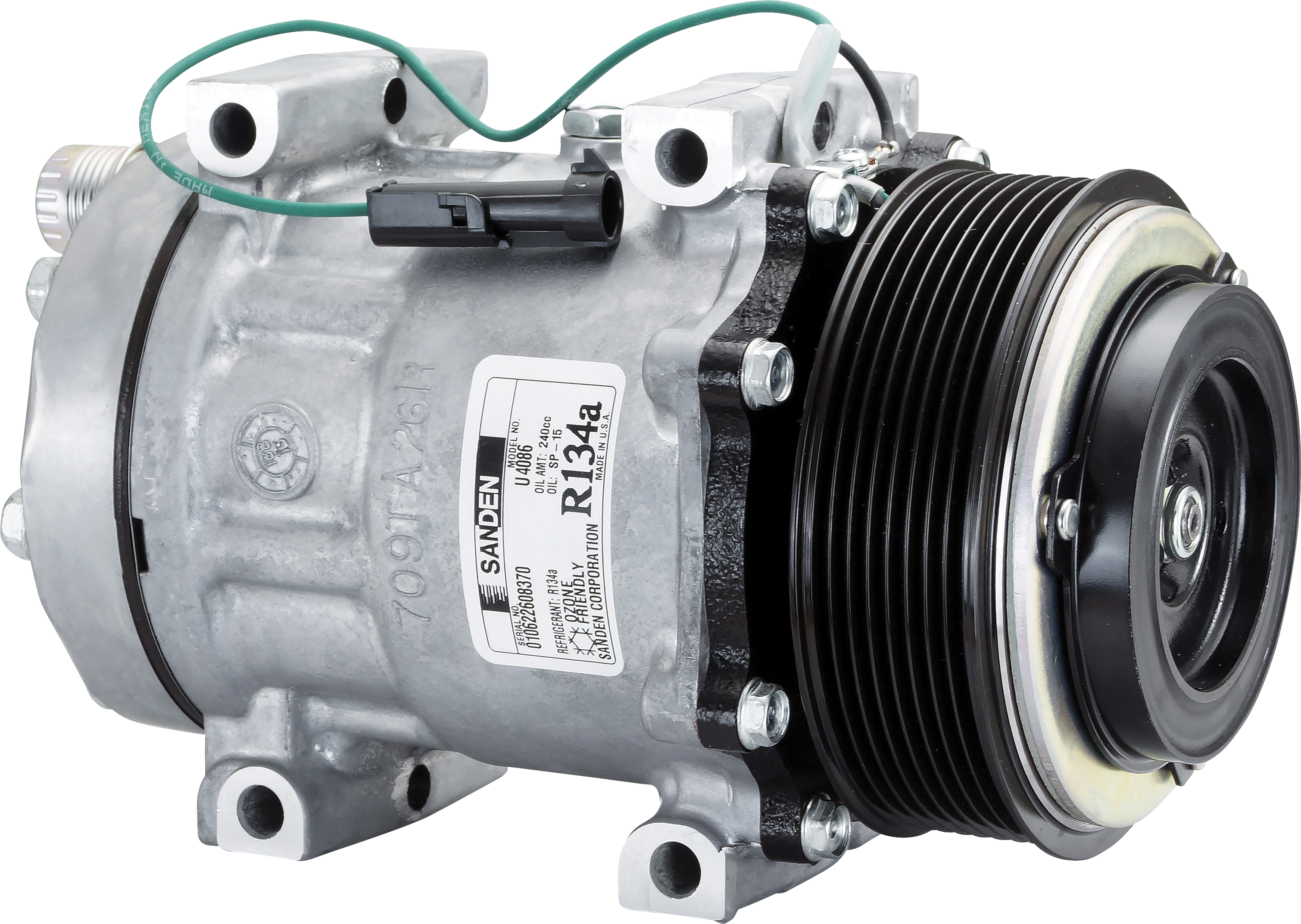

COMPRESSOR, SANDEN, SD7H15, 12V, 8PV, 119MM, REAR O-RING, DIRECT MOUNT, R134A
CO-56882
Description

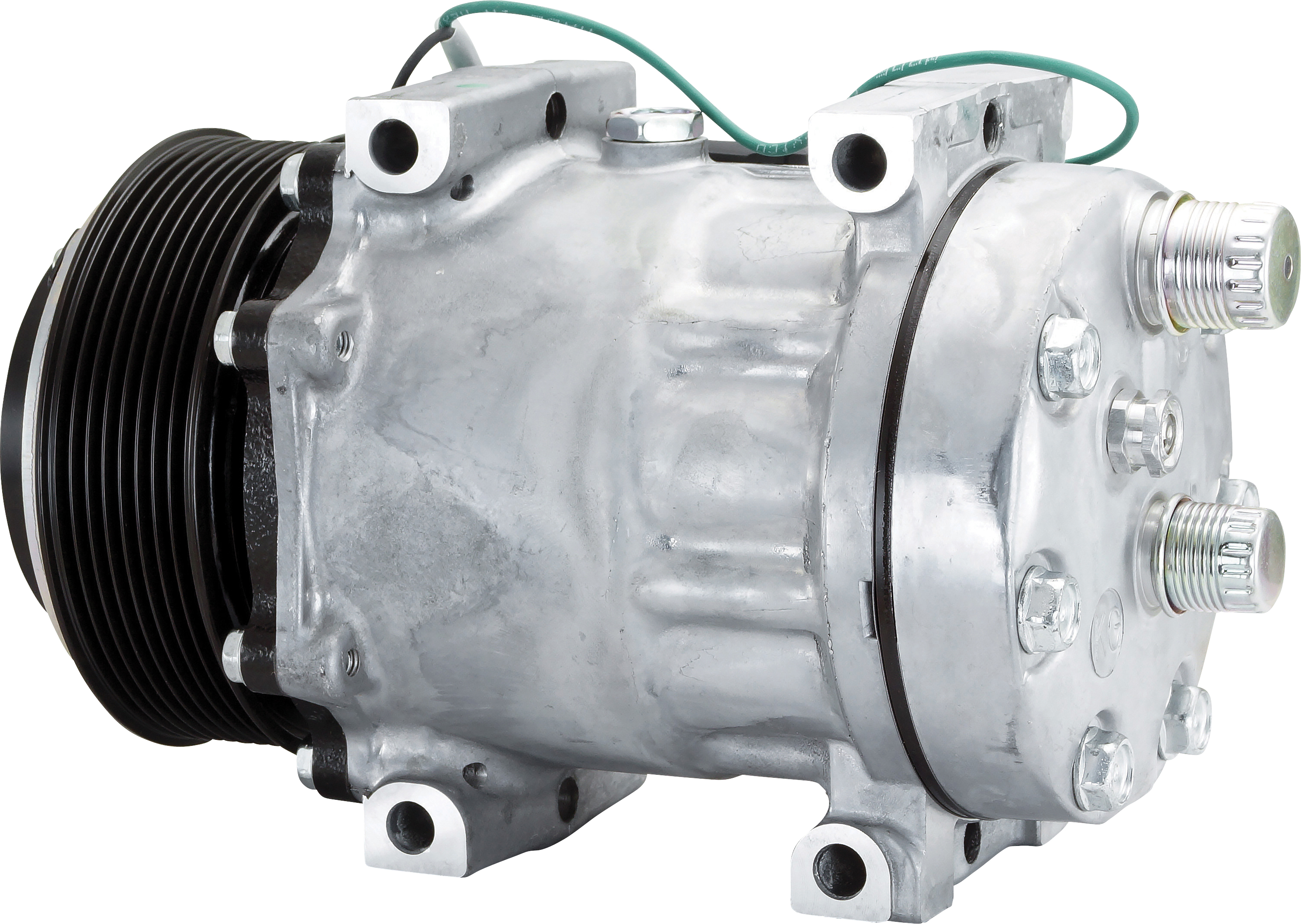

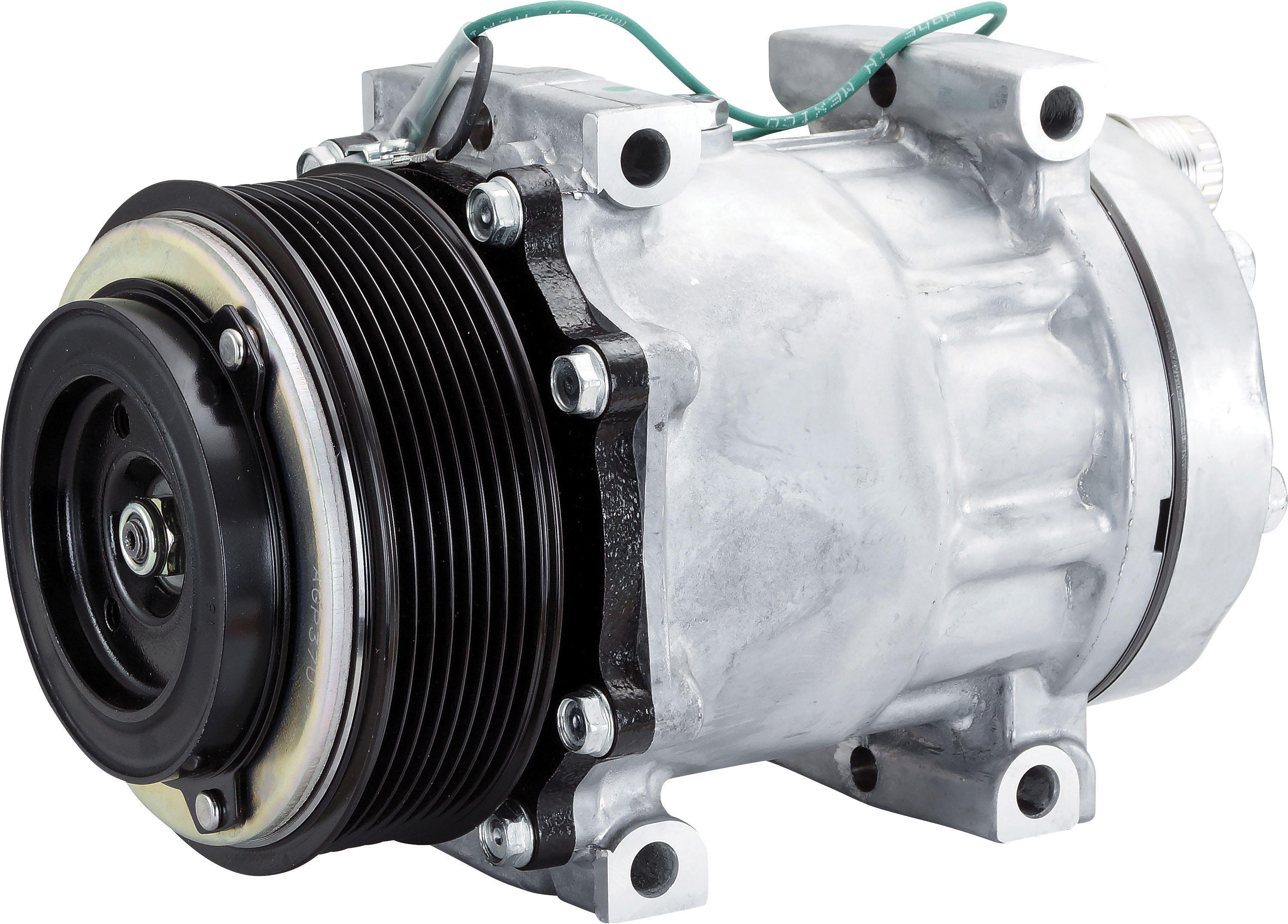

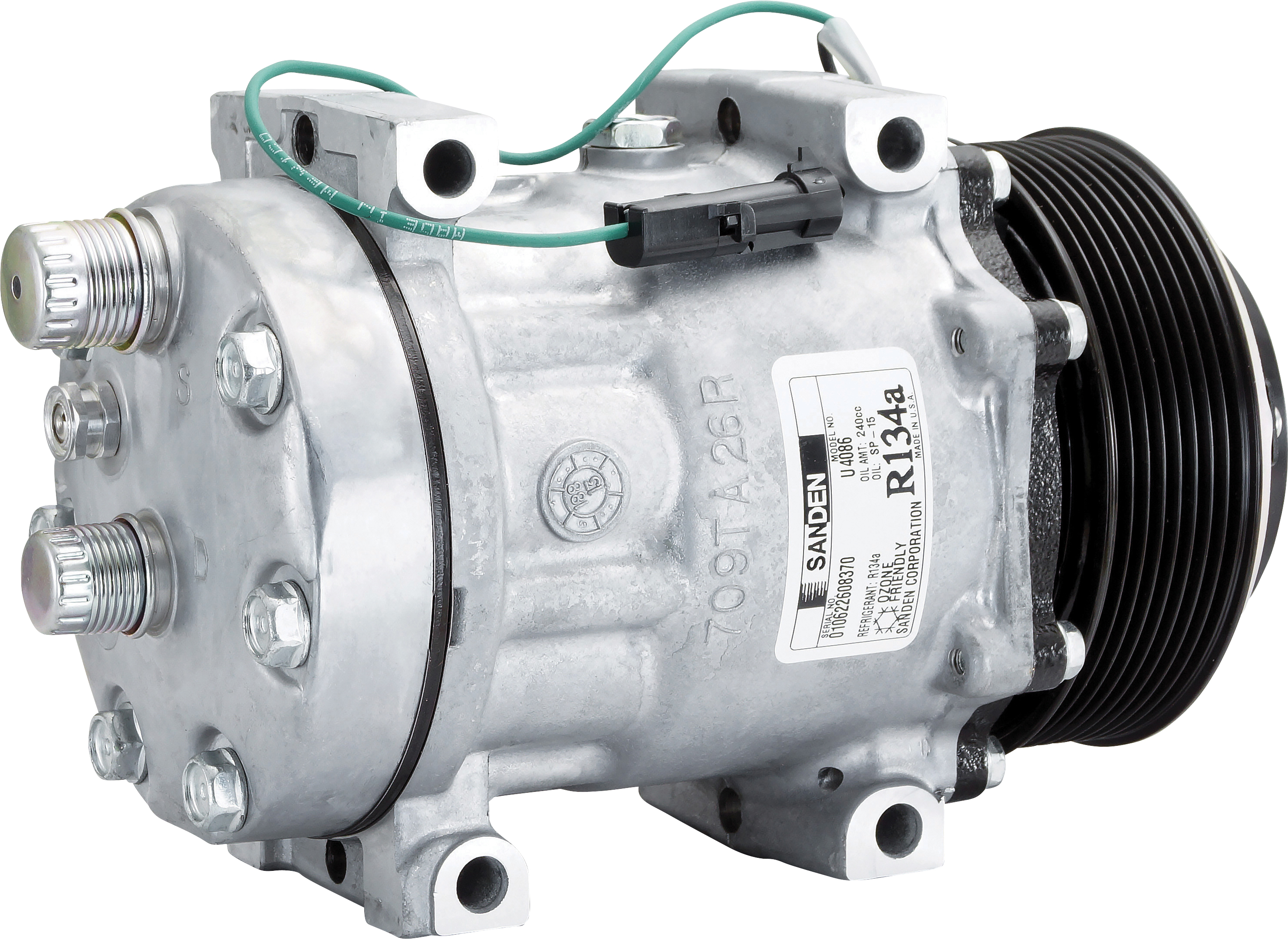

This Sanden SD7H15 fixed displacement compressor features a 7-cylinder design and a displacement of approximately 155cc. It operates on a 12V system and is compatible with R134a refrigerant. The compressor is equipped with an 8-groove serpentine clutch assembly with a 119mm pulley diameter and uses rear O-ring fittings for direct mounting.
Specifications
| voltage | 12V |
| pulley grooves | 8 |
| pulley type | 8PV |
| compressor model | SD7H15 |
| refrigerant | R134A |
Weight: 6 kg
