Sanden
Compressors

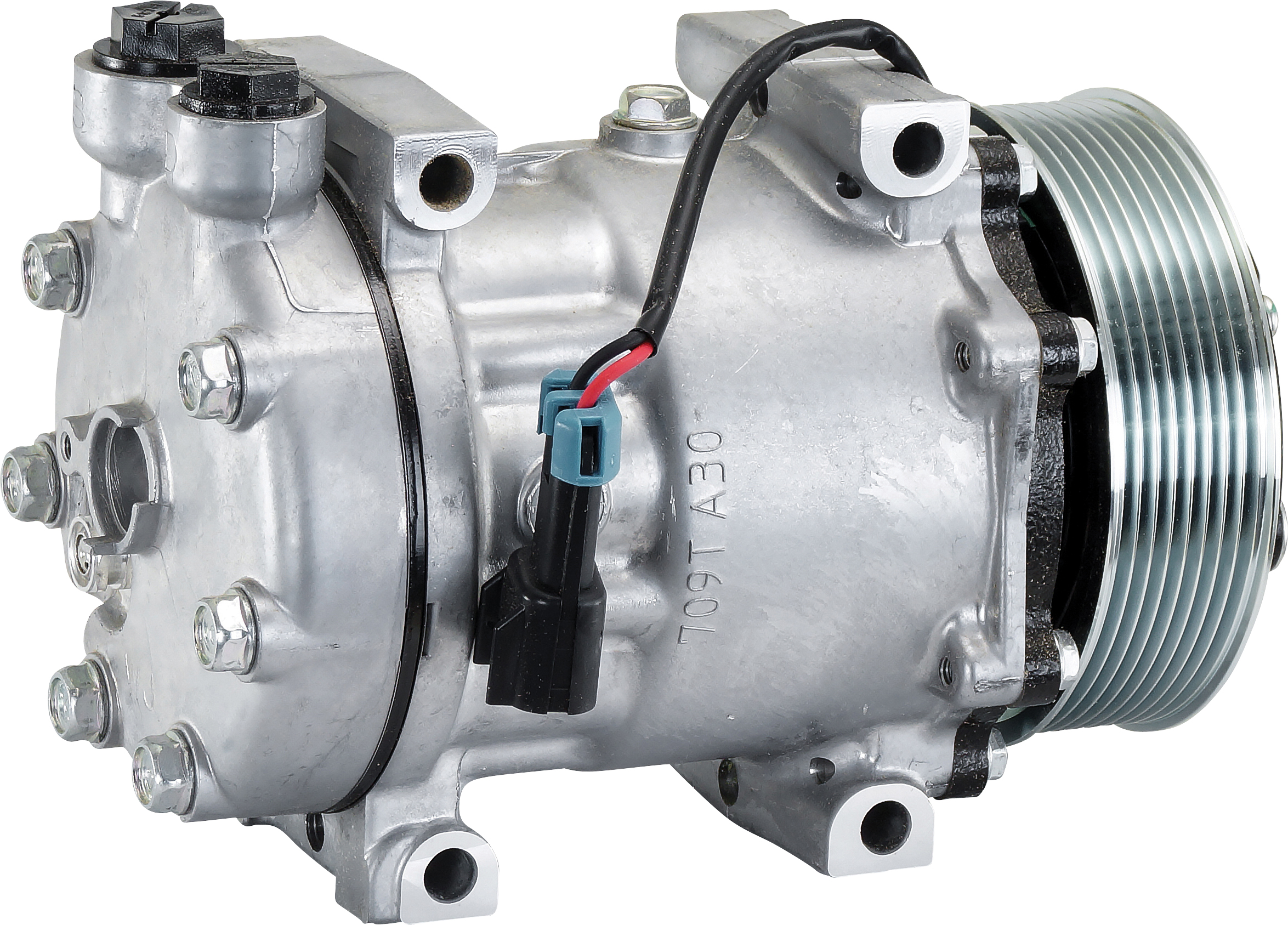

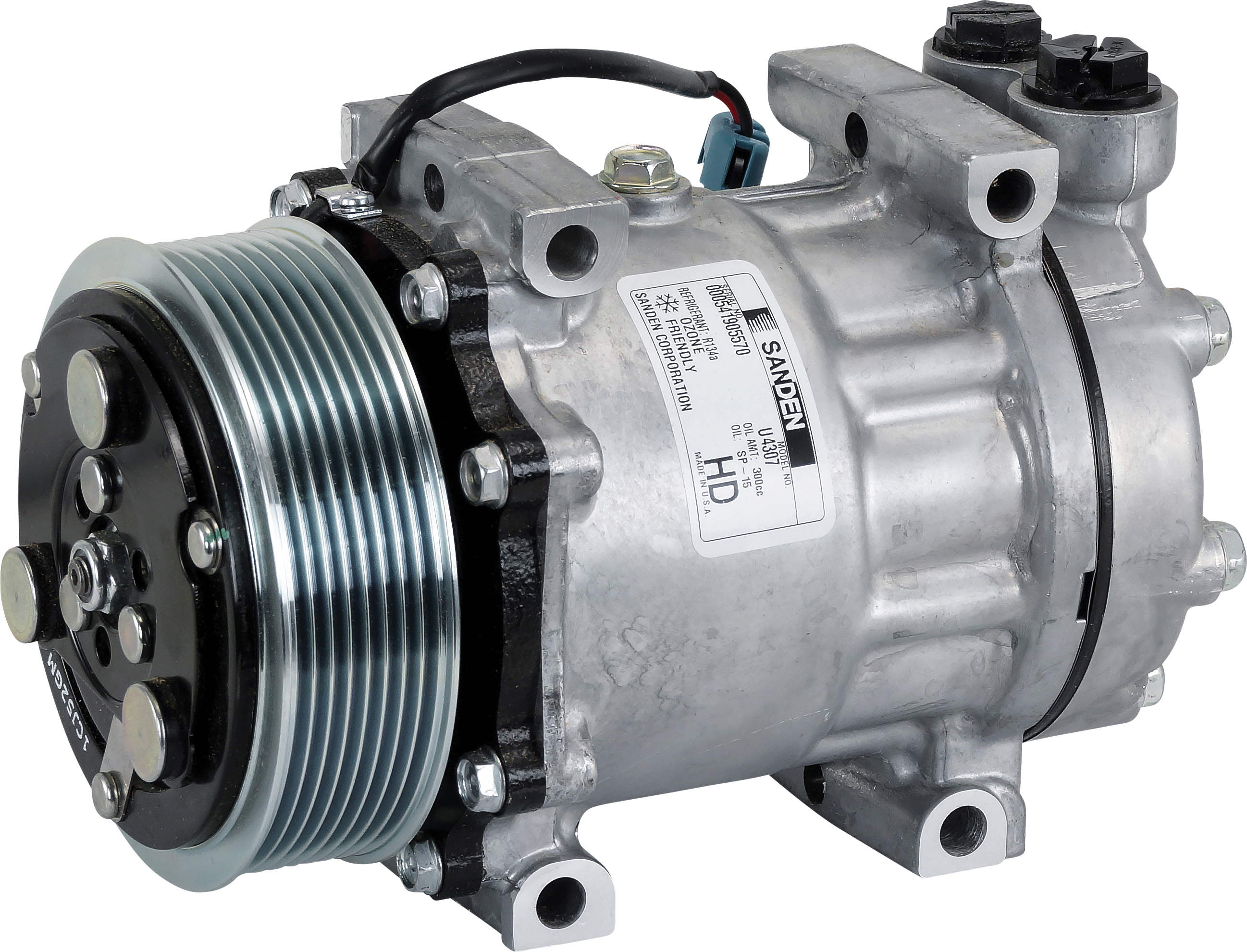

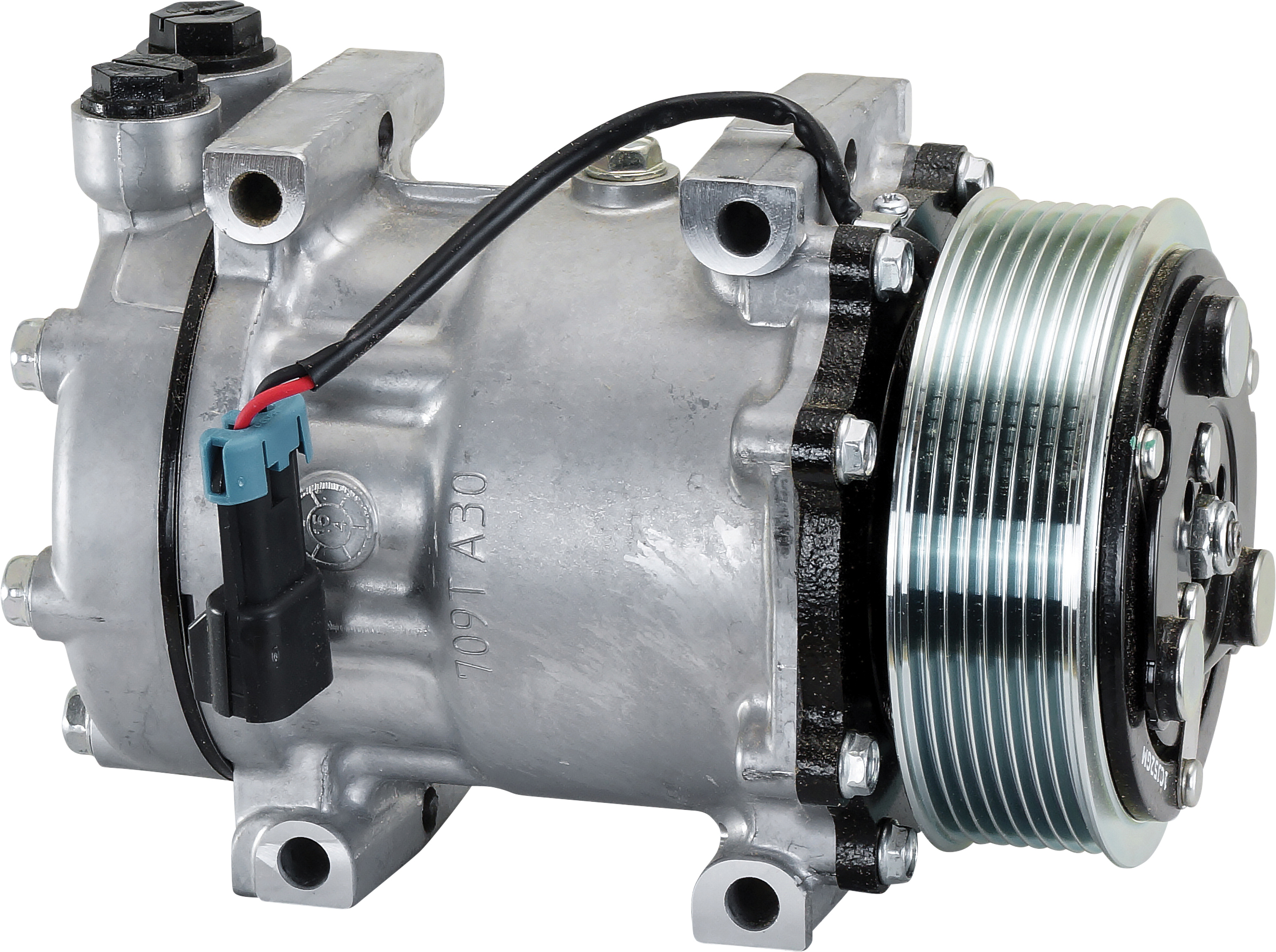

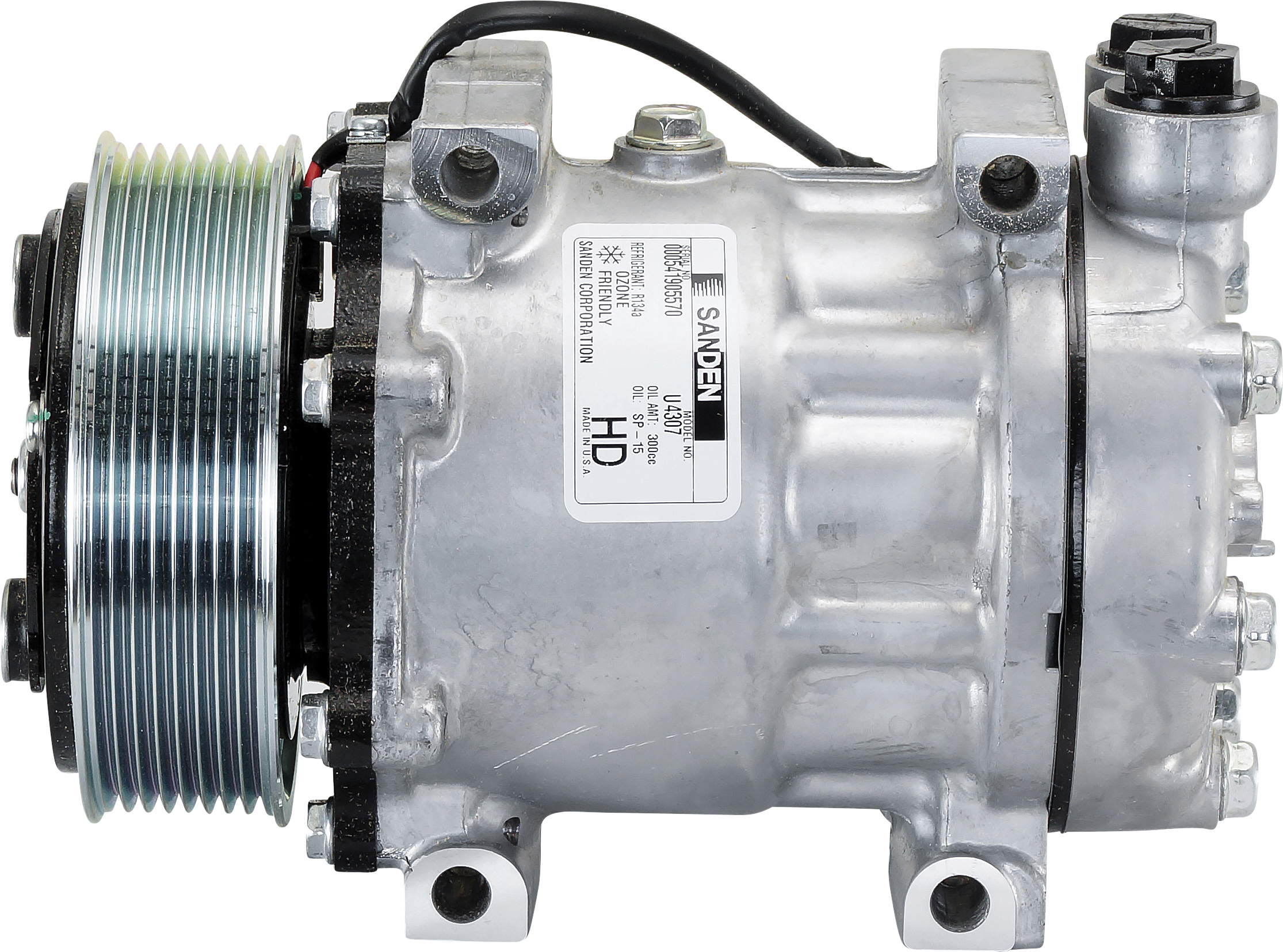

COMPRESSOR, SANDEN, SD7H15 4307, 12V, 8PV, 119MM, VERT FOR, DIRECT MOUNT, R134A
CO-56529
Description
This Sanden SD7H15 model 4307 compressor is a 12V unit compatible with R134a refrigerant. It features an 8-groove (8PV) clutch with a 119mm pulley diameter and is designed for direct mounting with vertical O-ring fittings. This heavy-duty compressor has a displacement of 9.5 cubic inches.
Specifications
| voltage | 12V |
| pulley grooves | 8 |
| pulley type | 8PV |
| compressor model | SD7H15 |
| refrigerant | R134A |
Weight: 6 kg
