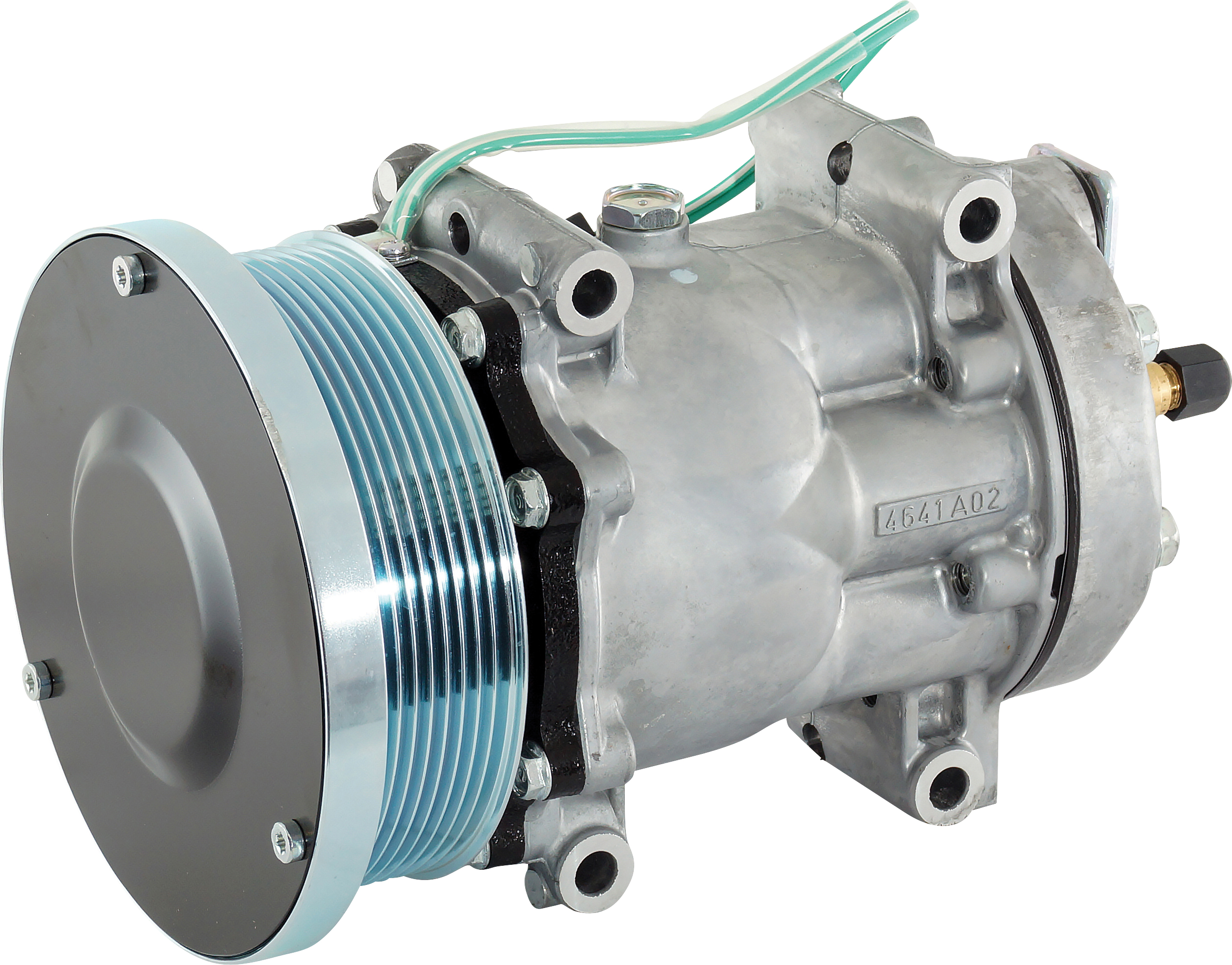

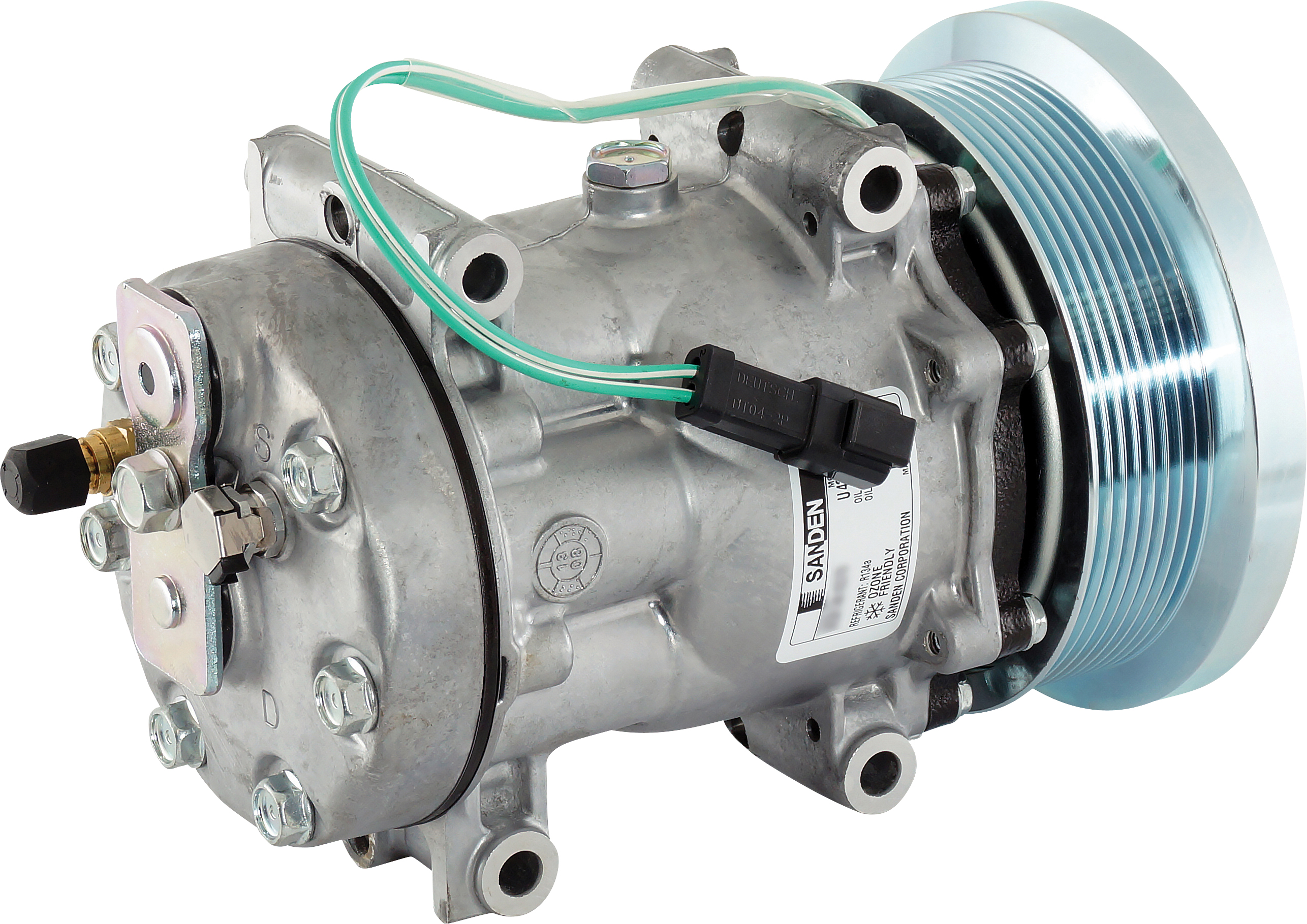

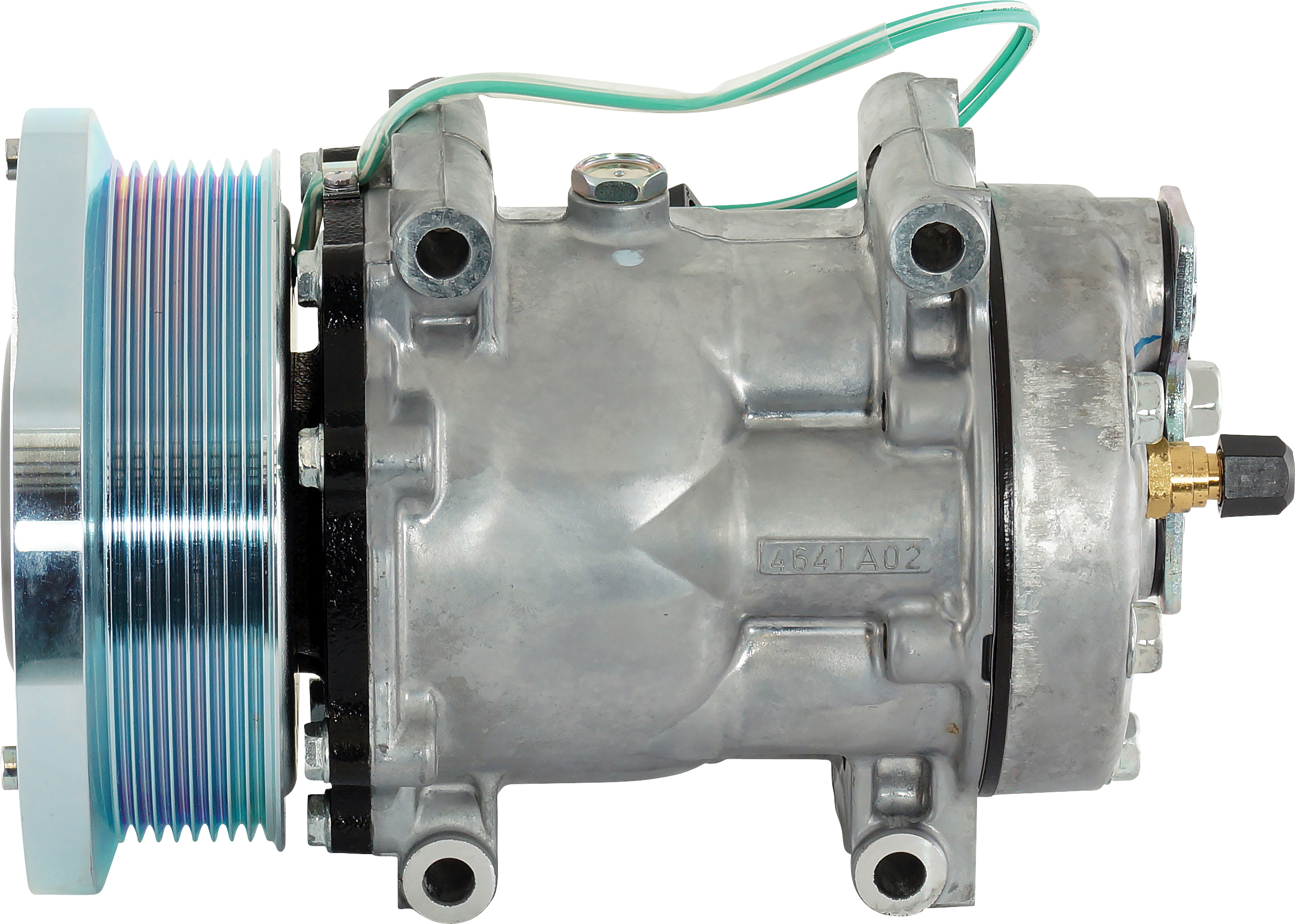

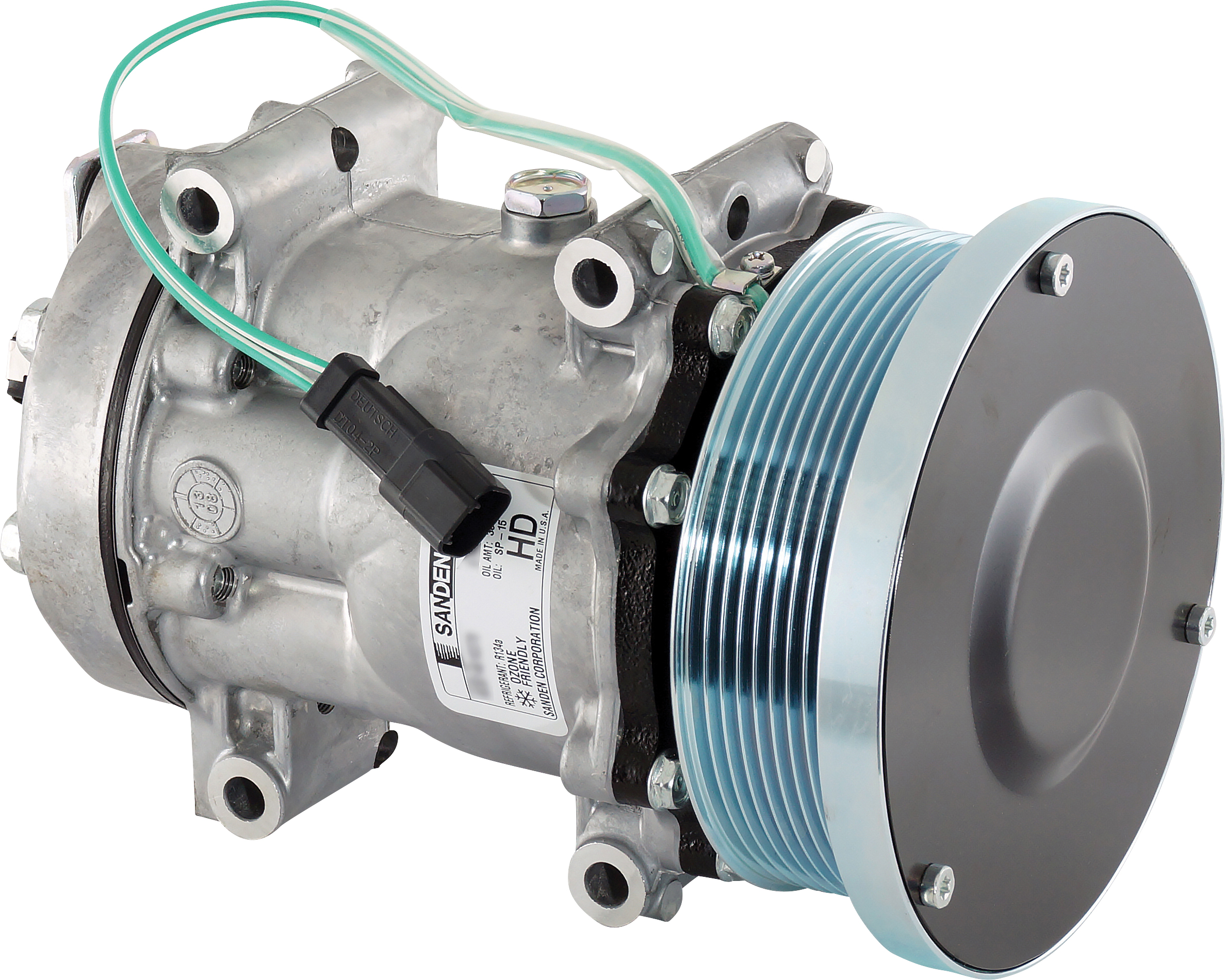

COMPRESSOR, SANDEN, SD7H15 U4769, 24V, 8PV, 133MM, US PAD, DIRECT MOUNT, R134A
CO-56500
Description
This Sanden SD7H15 U4769 compressor operates on 24V and features an 8PV (8 groove) pulley with a 133mm diameter. It is a direct mount compressor with a US pad fitting, designed for R134a refrigerant systems.
Specifications
| voltage | 24V |
| pulley grooves | 8 |
| pulley type | 8PV |
| compressor model | SD7H15 |
| refrigerant | R134A |
Weight: 6 kg
