Sanden
Compressors

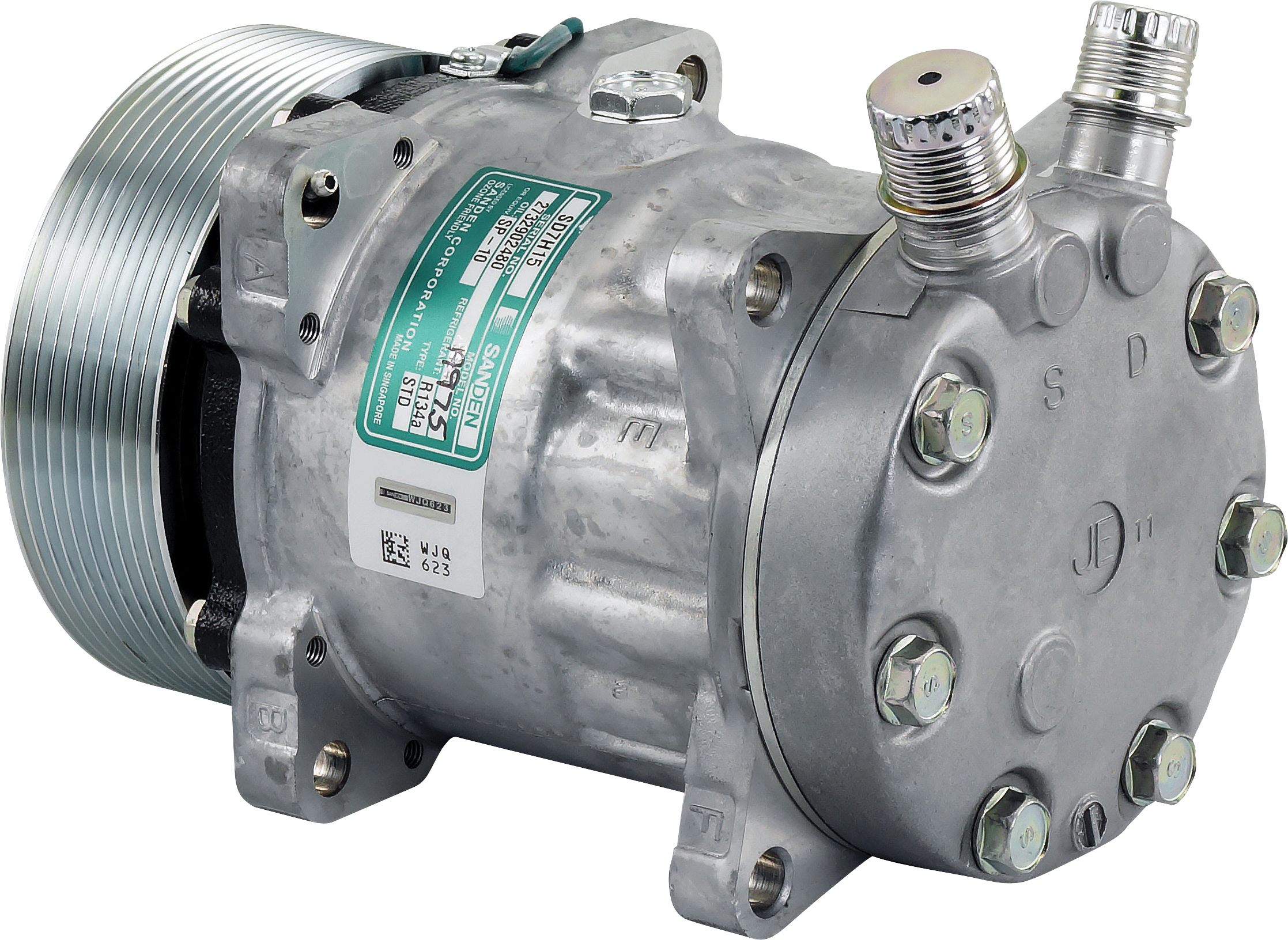

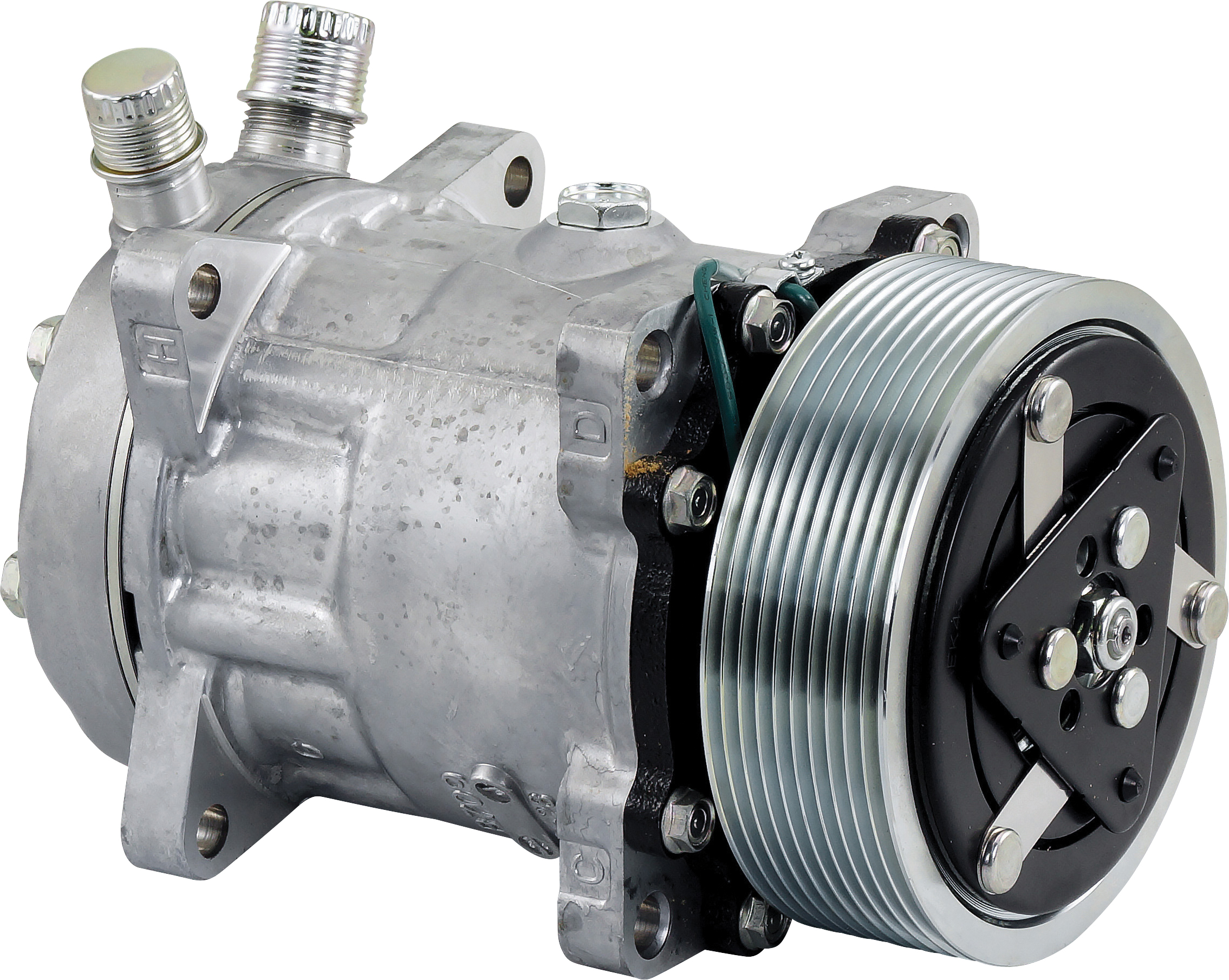

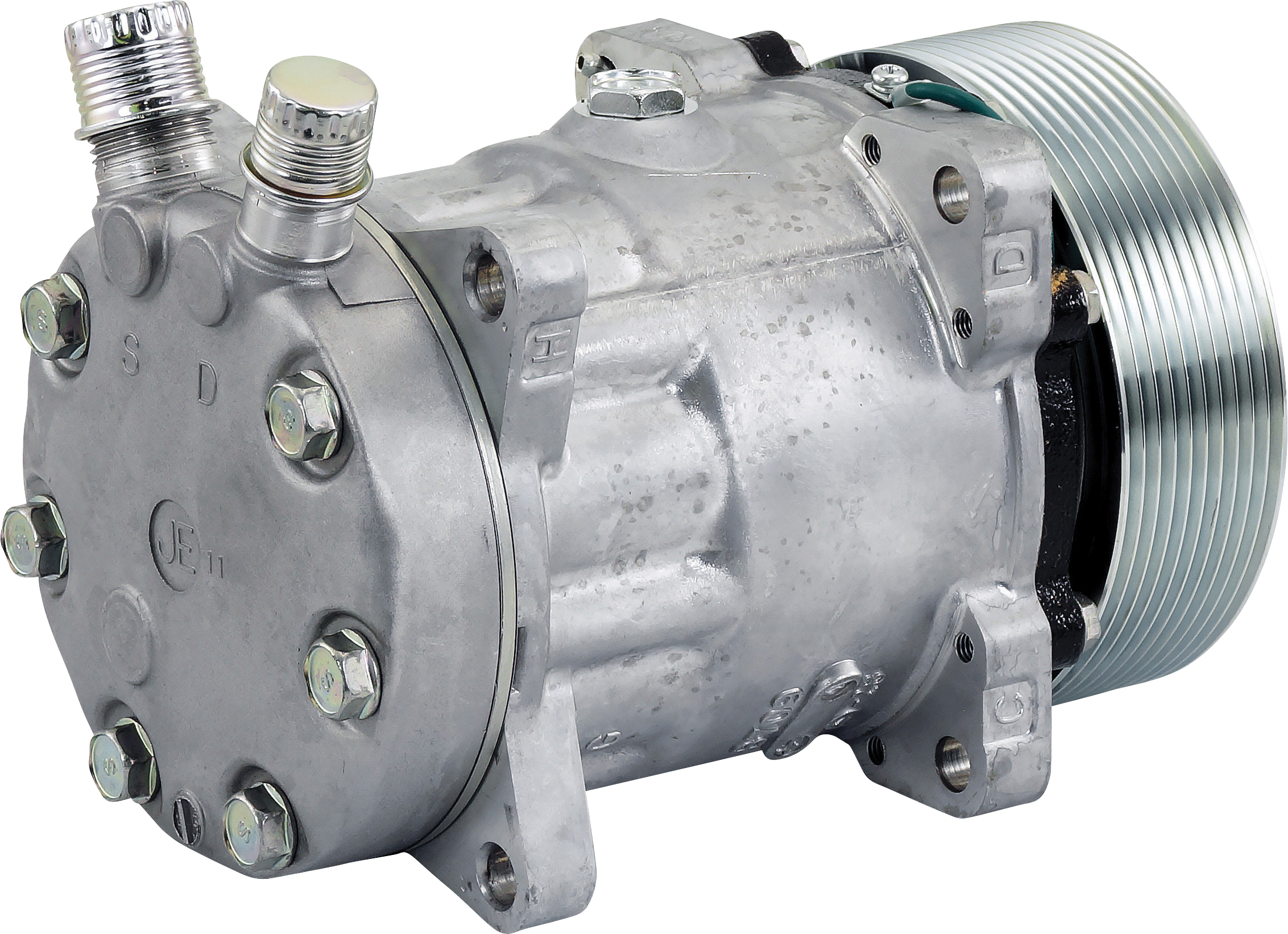

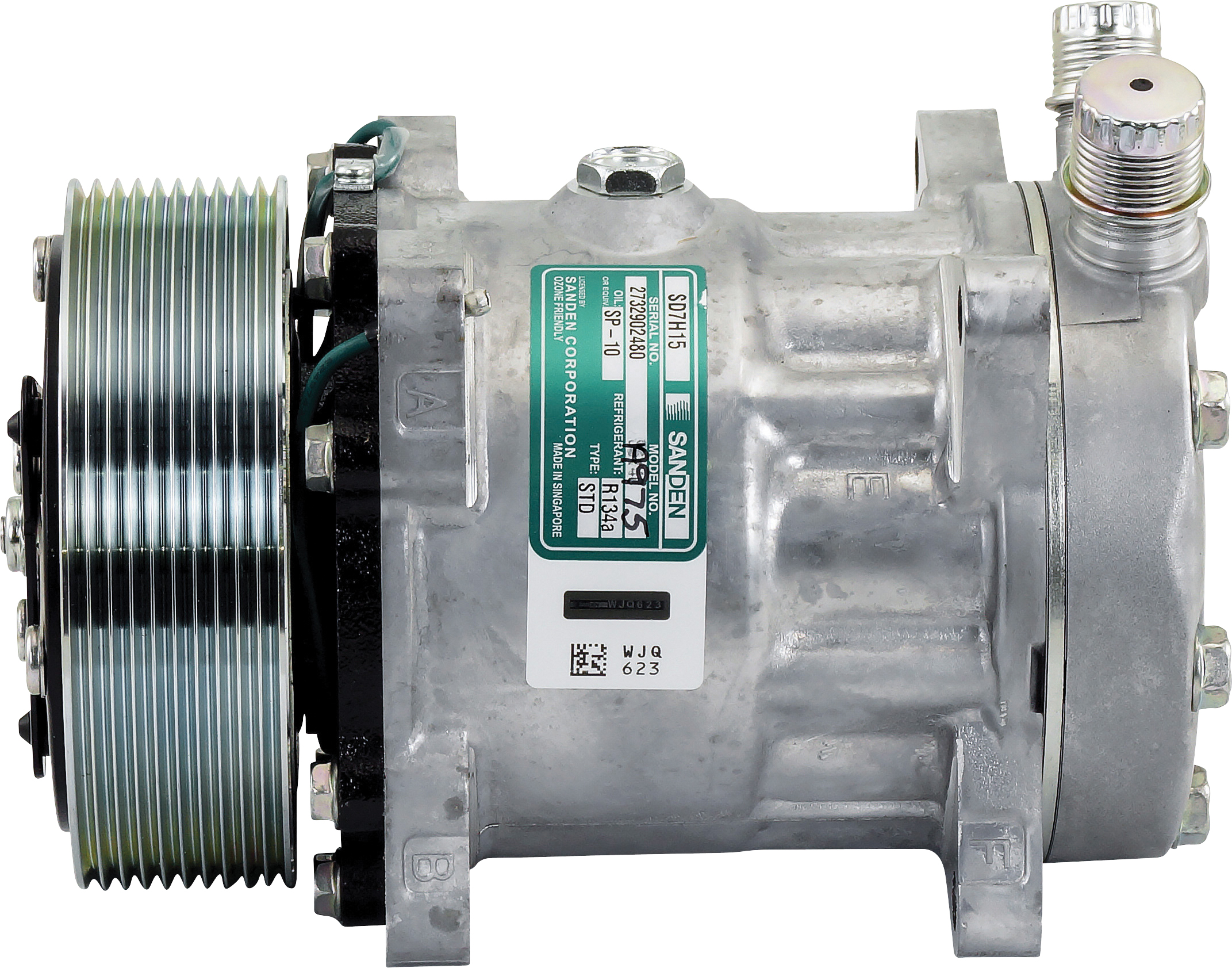

COMPRESSOR, SANDEN, SD7H15 A975, 24V, 10PV, 125MM, VERT O-RING, R134A
CO-55838
Description
The Sanden SD7H15 A975 is a 24V air conditioning compressor designed for R134a refrigerant. It features a 10PV pulley with 10 grooves and a 125mm clutch diameter, utilising vertical O-ring fittings. This 7-cylinder compressor has a displacement of 154.98 cc/rev.
Specifications
| voltage | 24V |
| pulley grooves | 10 |
| pulley type | 10PV |
| compressor model | SD7H15 |
| refrigerant | R134A |
Weight: 6 kg
