Sanden
Compressors

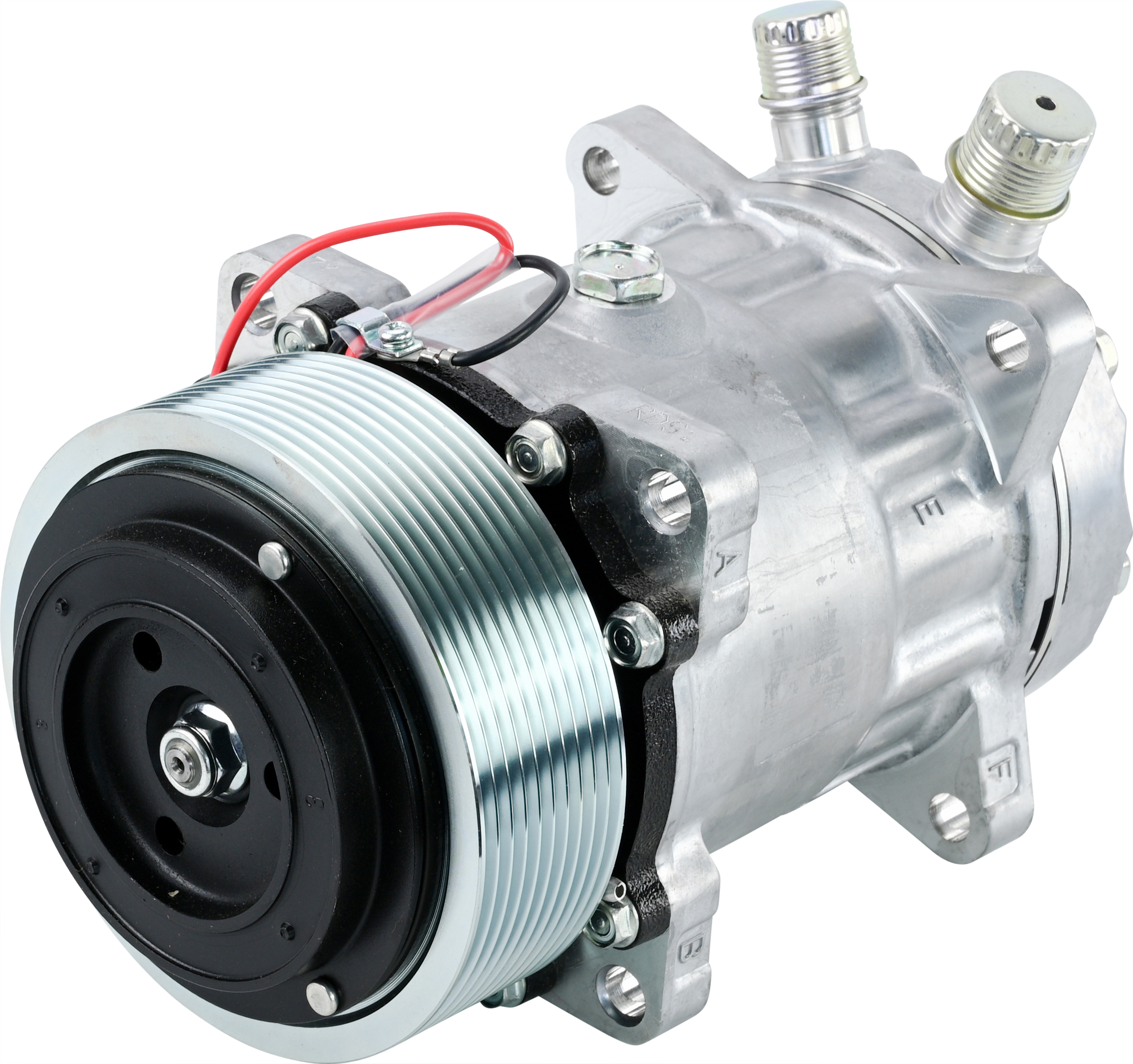

COMPRESSOR, SANDEN, SD7H15 8035, 12V, 10PV, 125MM, VERT O-RING, R134A
CO-55835HD
Description

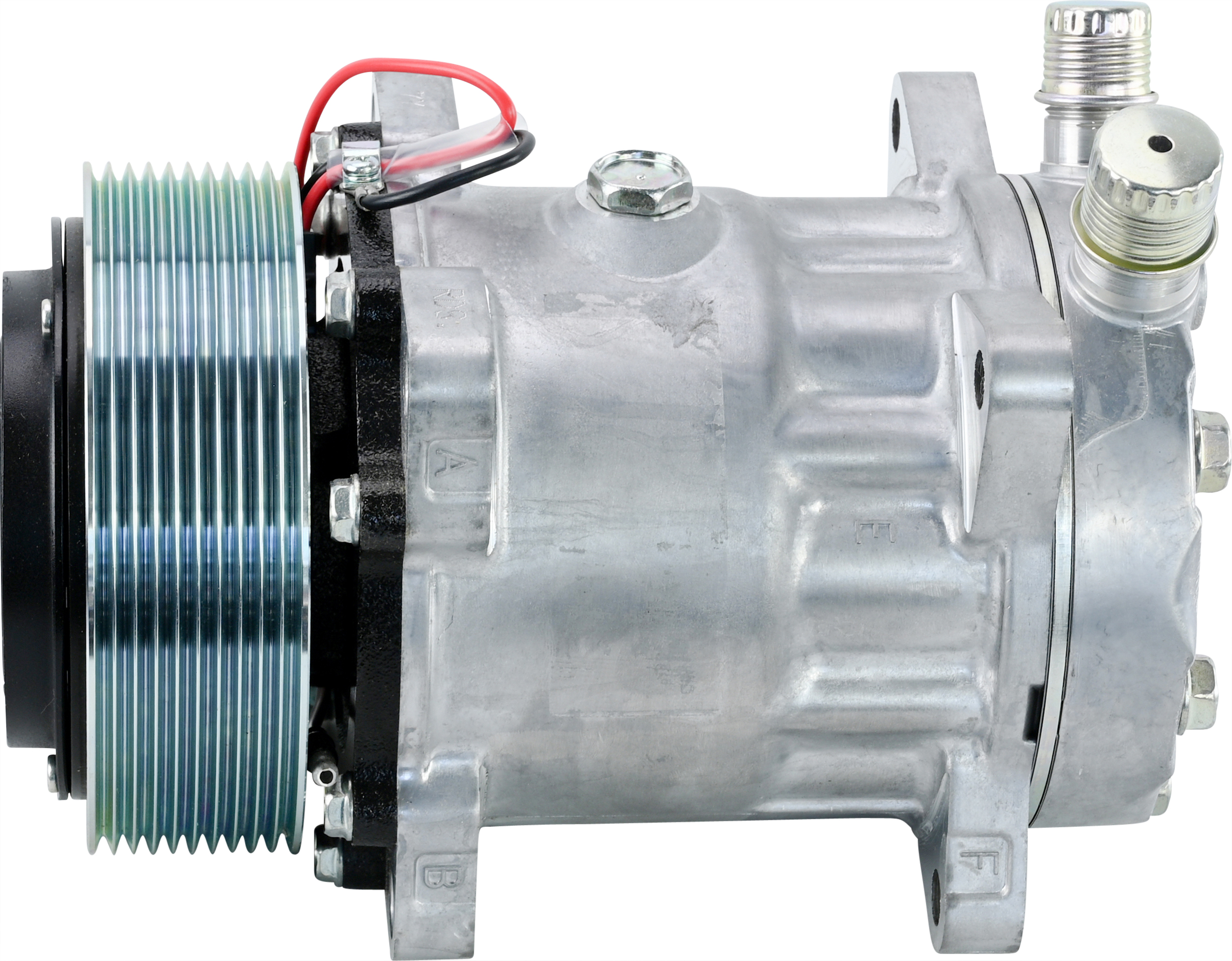

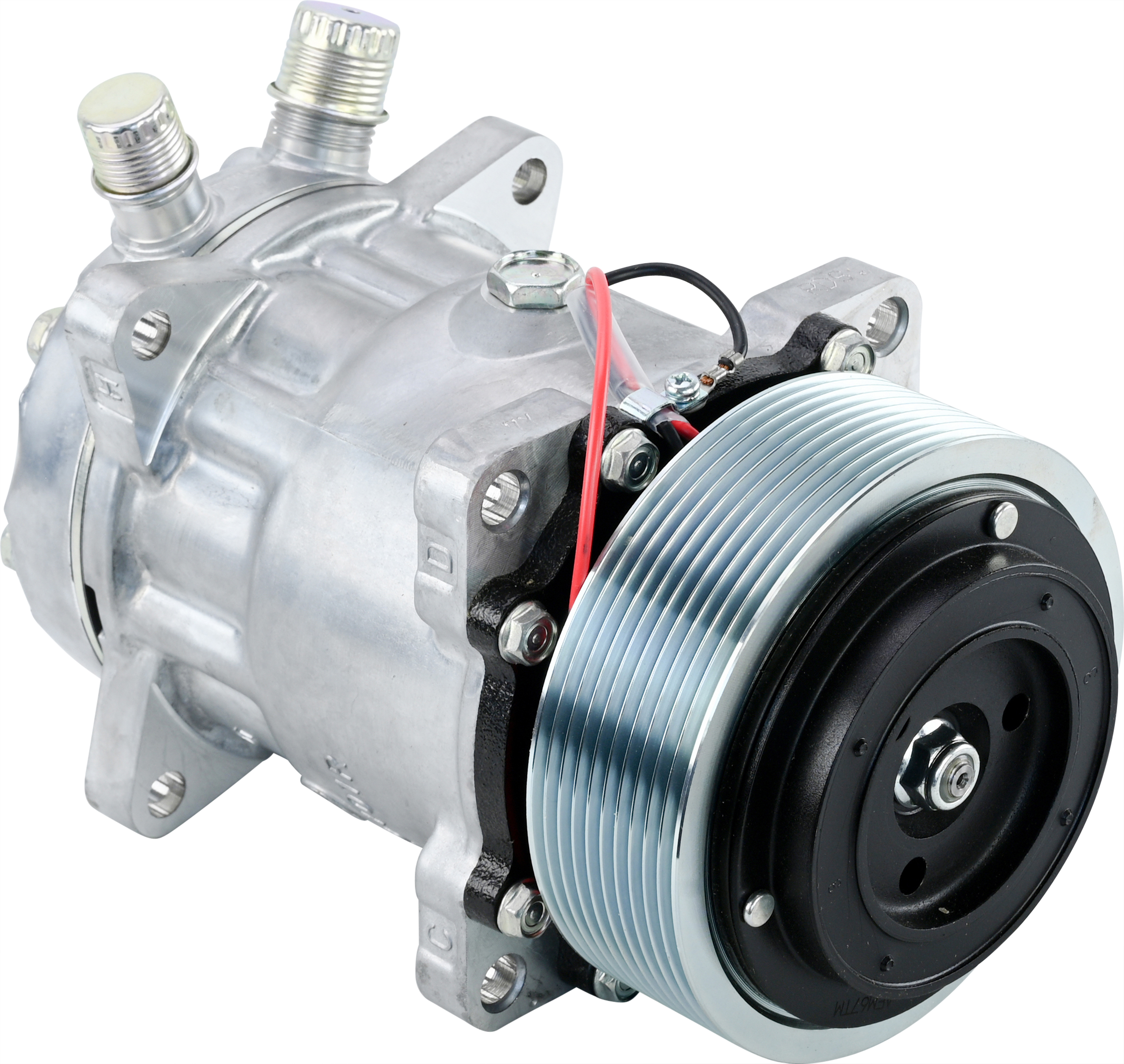

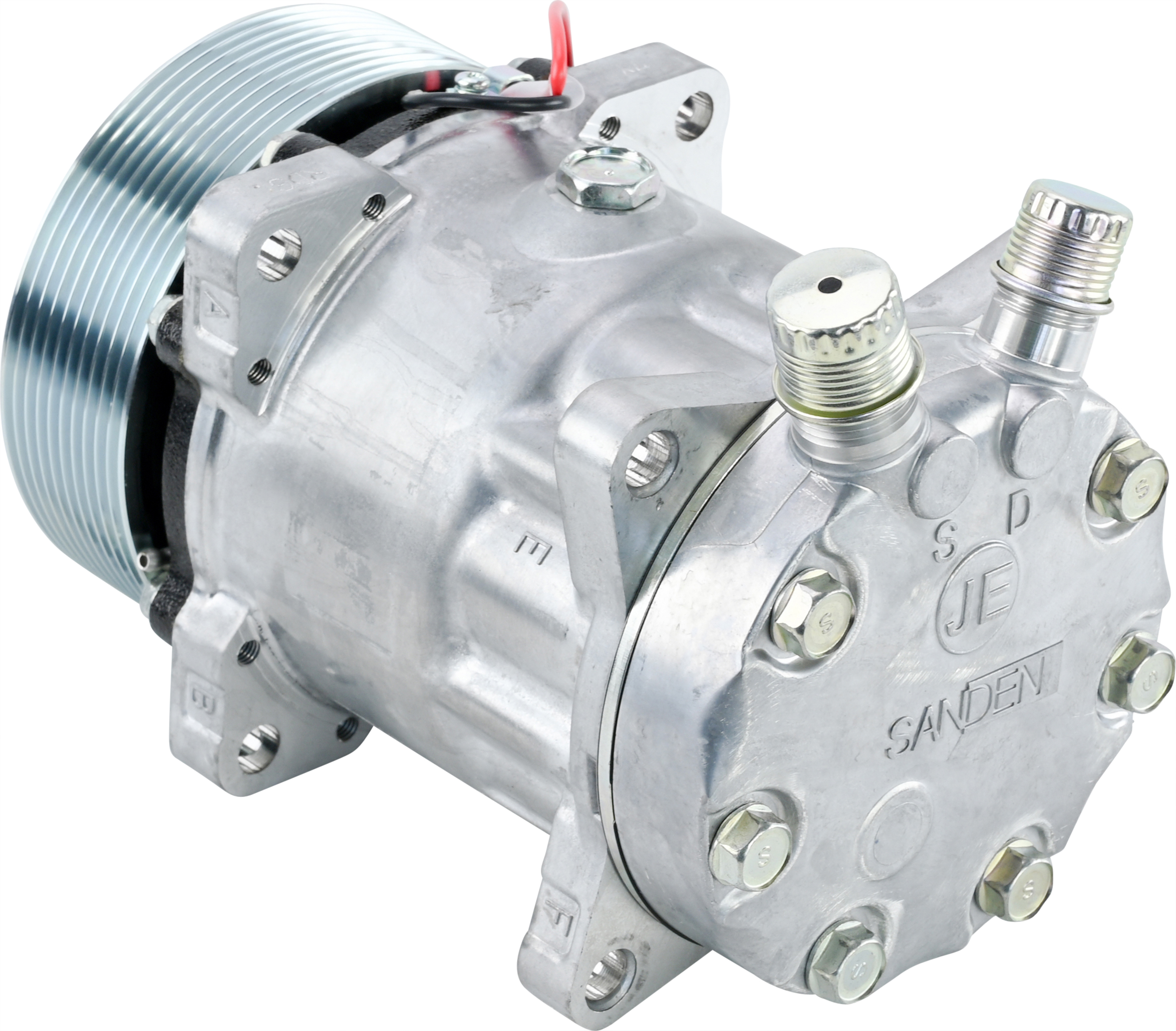

This Sanden SD7H15 8035 compressor is a 12V unit designed for R134a refrigerant systems. It features a 10PV (10 groove poly-V) clutch with a 125mm diameter pulley and vertical O-ring fittings. The compressor has a displacement of 154.9 cc/rev and uses PAG 46 or SP10 oil.
Specifications
| voltage | 12V |
| pulley grooves | 10 |
| pulley type | 10PV |
| compressor model | SD7H15 |
| refrigerant | R134A |
Weight: 6 kg
