Sanden
Compressors

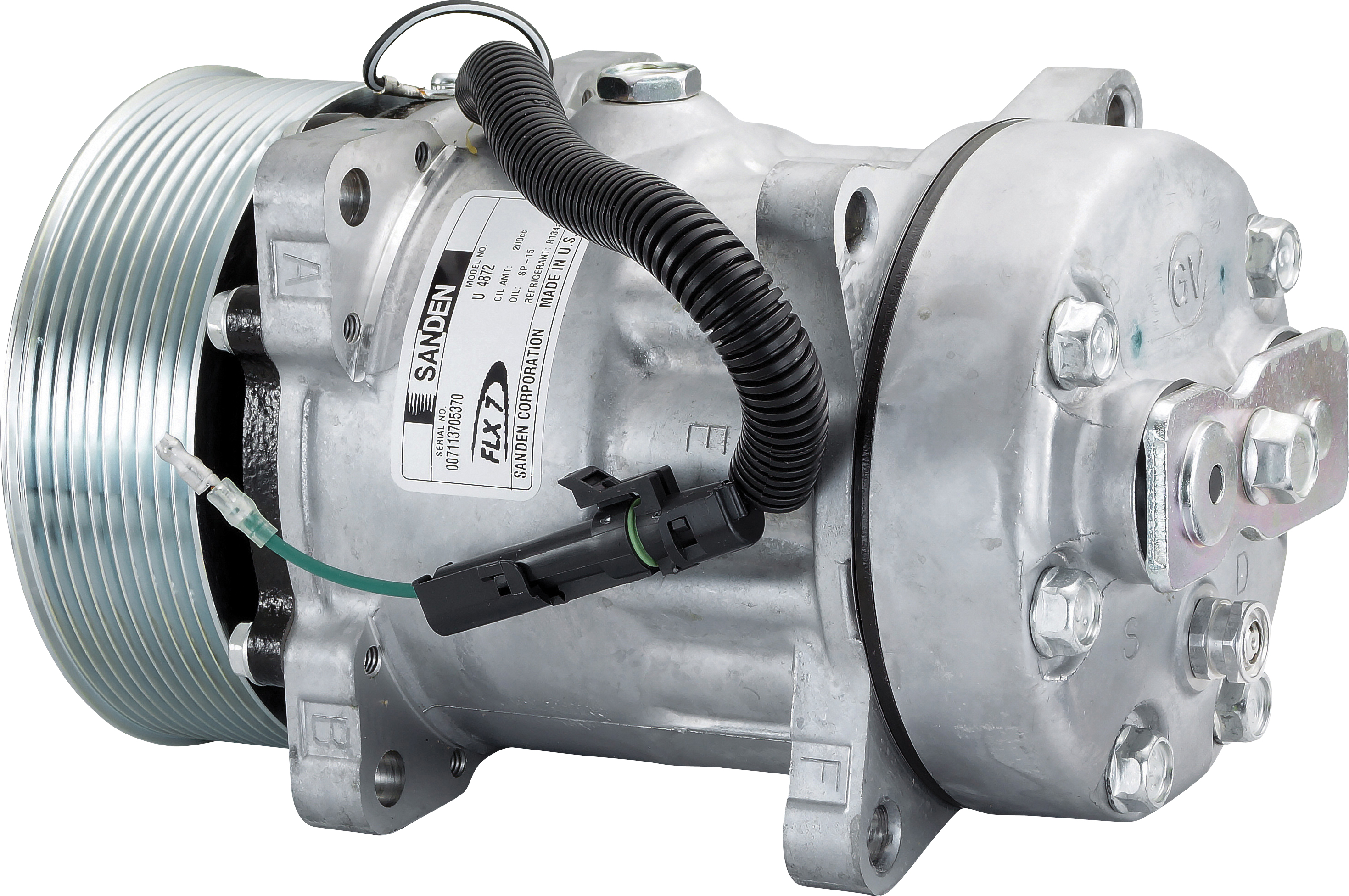

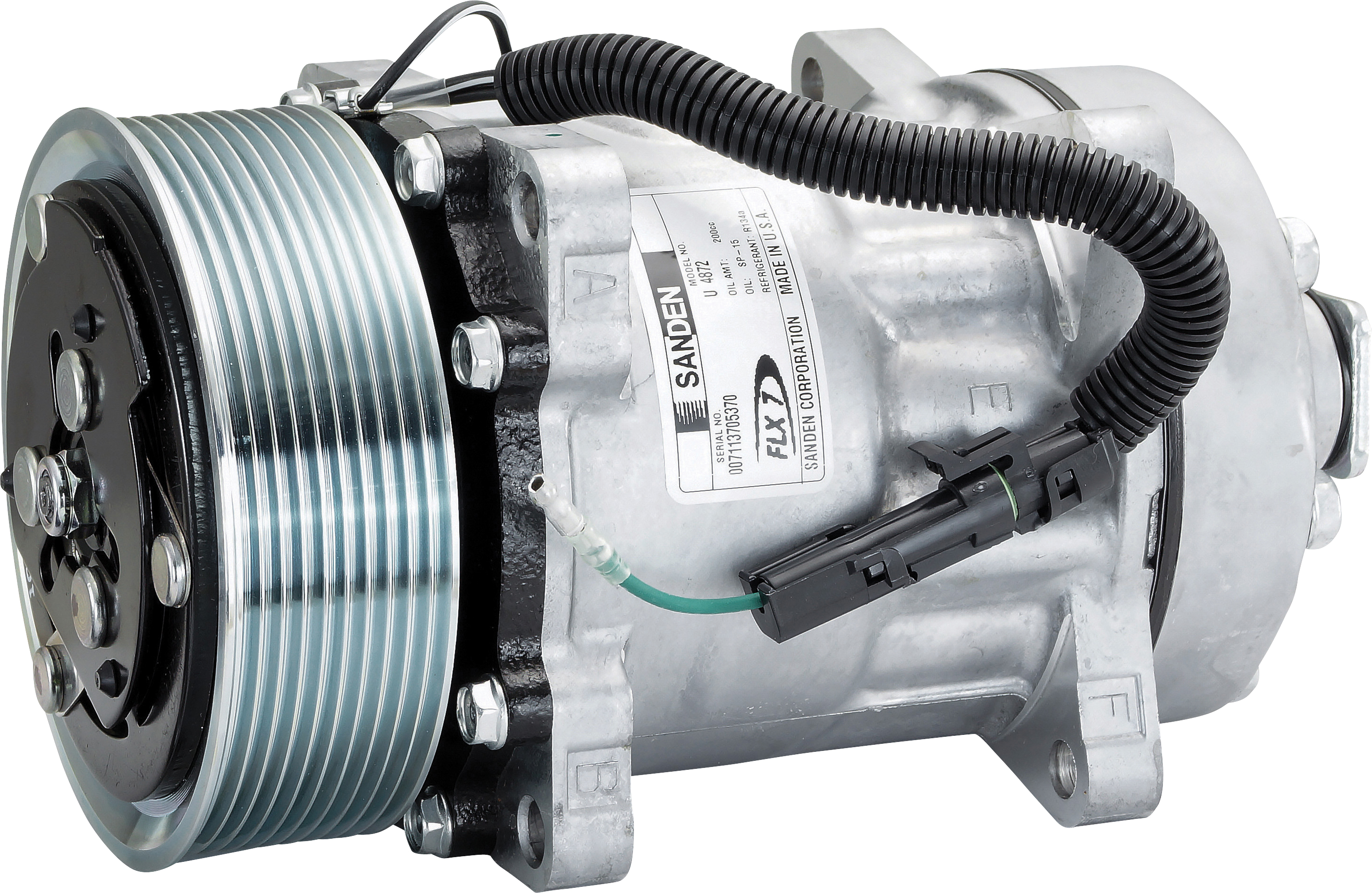

COMPRESSOR, SANDEN, SD7H15, 12V, 10PV, 125MM, HORIZONTAL PAD, GV HEAD, R134A
CO-55834
Description
This Sanden SD7H15 compressor features a 12V, 10-groove (10PV) serpentine clutch with a 125mm pulley diameter. It is designed for R134a refrigerant systems and utilises a GV head with horizontal pad fittings. The compressor has a displacement of 9.5 cubic inches.
Specifications
| voltage | 12V |
| pulley grooves | 10 |
| pulley type | 10PV |
| compressor model | SD7H15 |
| refrigerant | R134A |
Weight: 6 kg
