Sanden
Compressors
COMPRESSOR, BOBCAT EXCAVATOR, SANDEN, SD5H11, 12V, 4PV, 125MM, GM PAD, WITH ADAPTOR TO VERT O-RING
CO-55699
Description

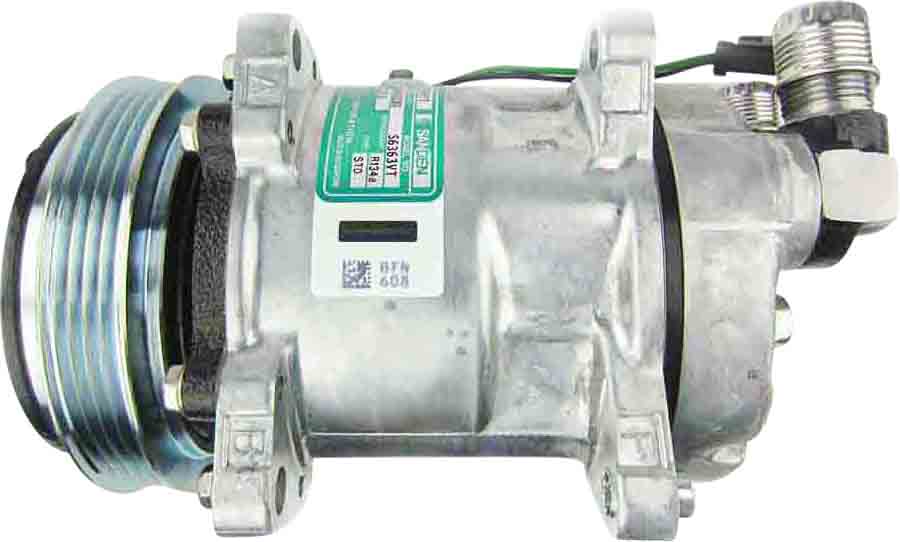

This Sanden SD5H11 compressor is a 12V unit featuring a 4PV (4-groove) clutch with a 125mm diameter. It is designed with a GM pad mount and includes an adaptor for vertical O-ring fittings. This fixed displacement compressor has 5 cylinders and a displacement of 108 cc/rev, operating with HFC134A refrigerant.
Specifications
| voltage | 12V |
| pulley grooves | 4 |
| pulley type | 4PV |
| compressor model | SD5H11 |
Vehicle / Equipment Applications
Bobcat
Weight: 6 kg
