Sanden
Compressors

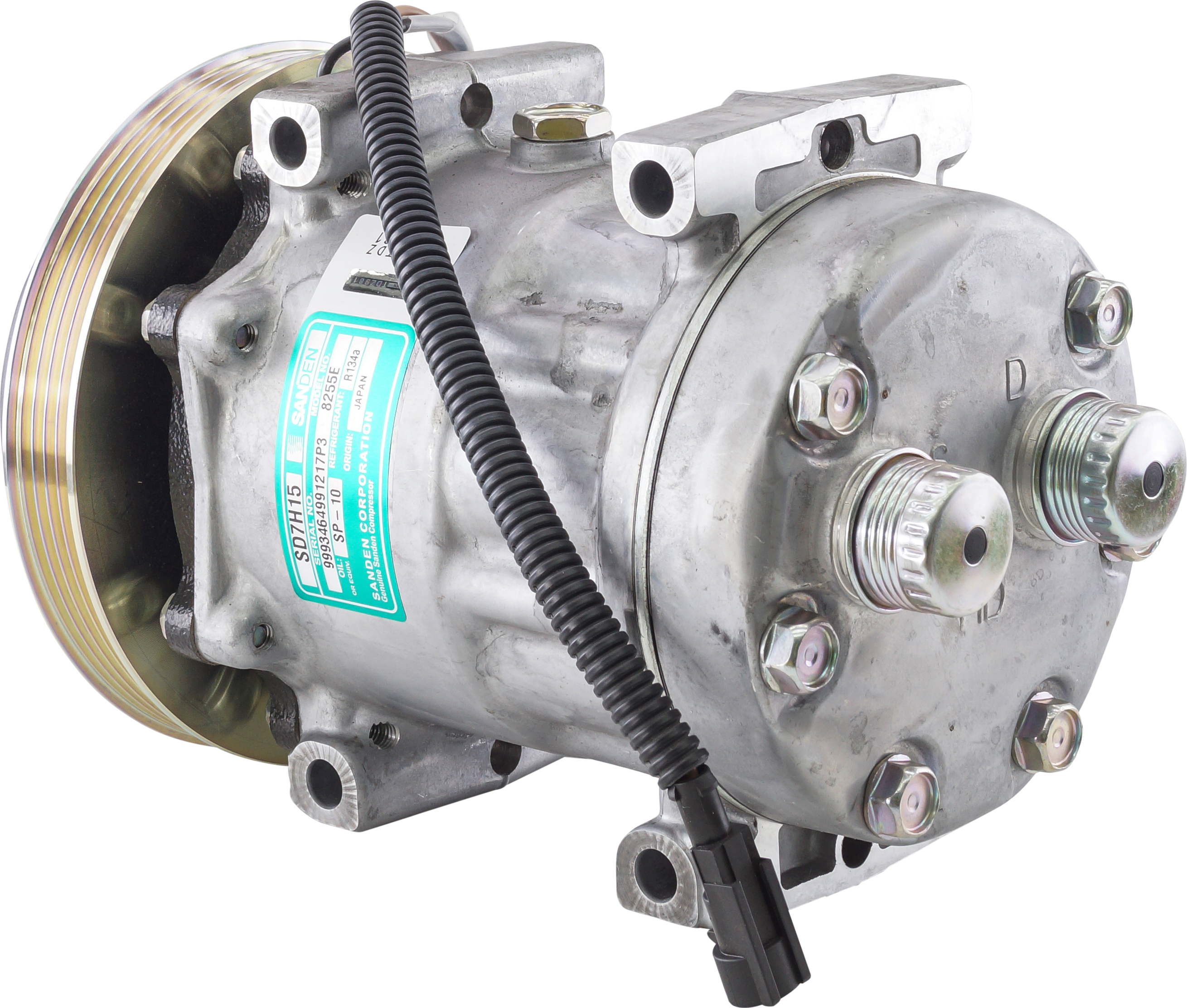

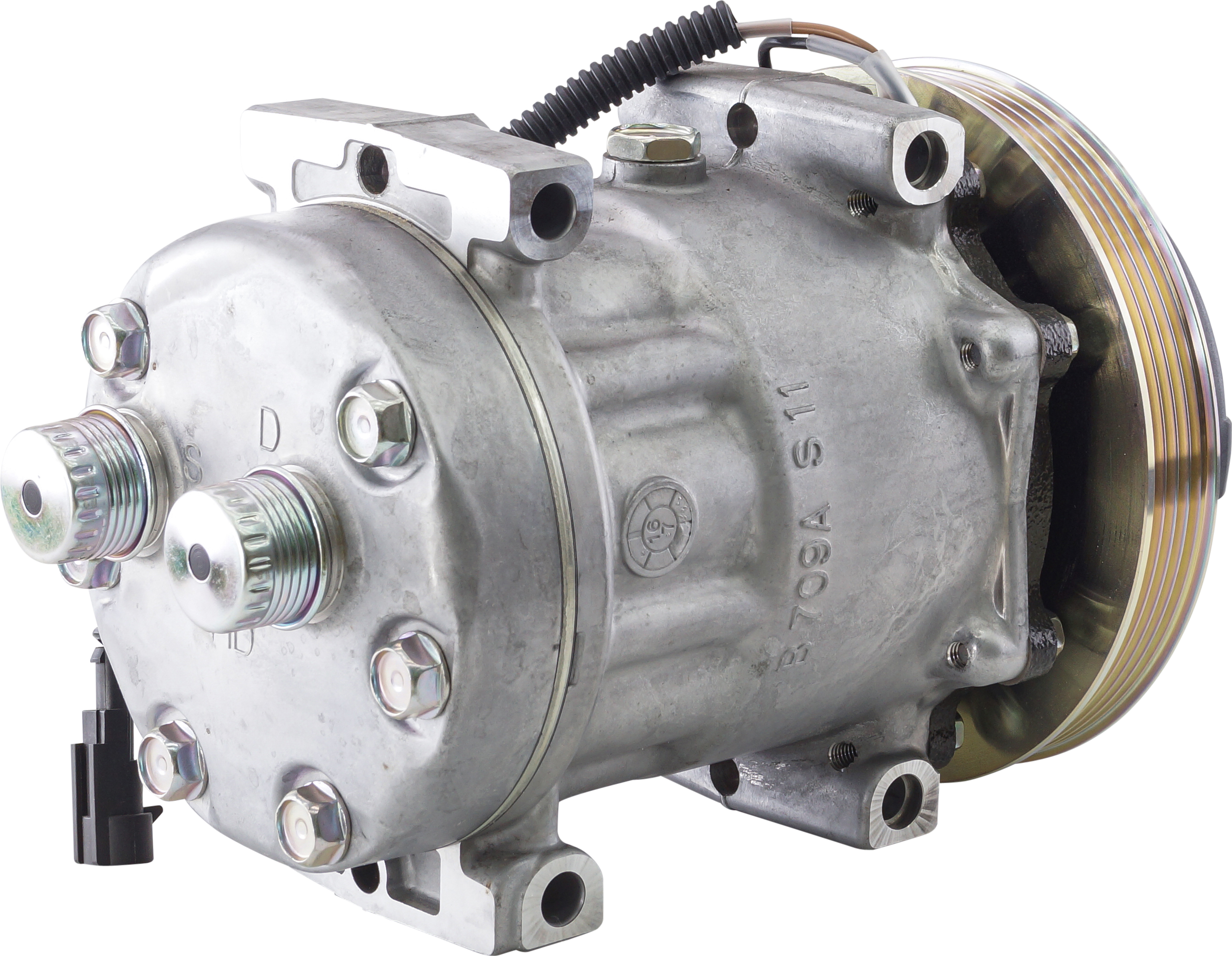

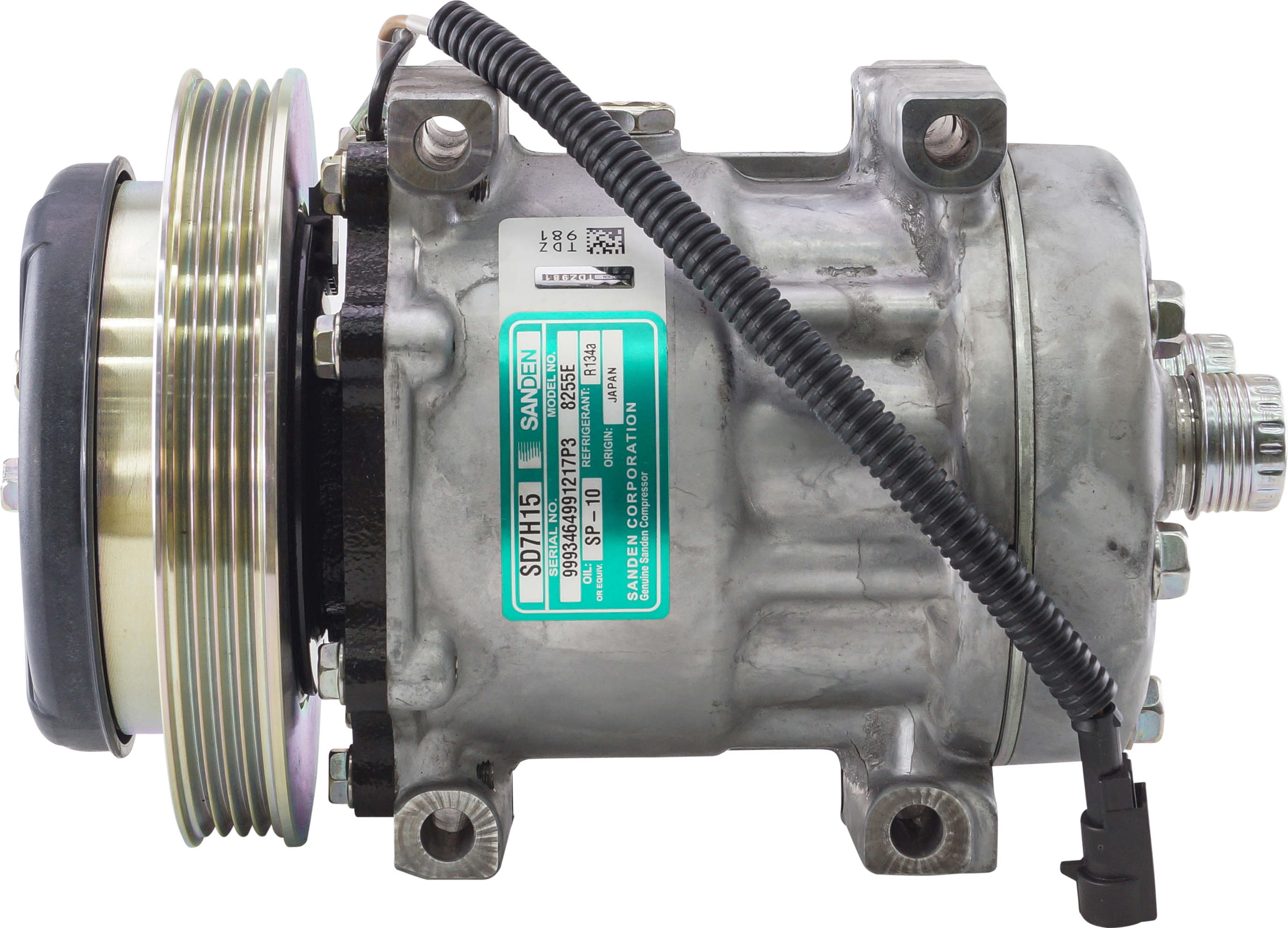

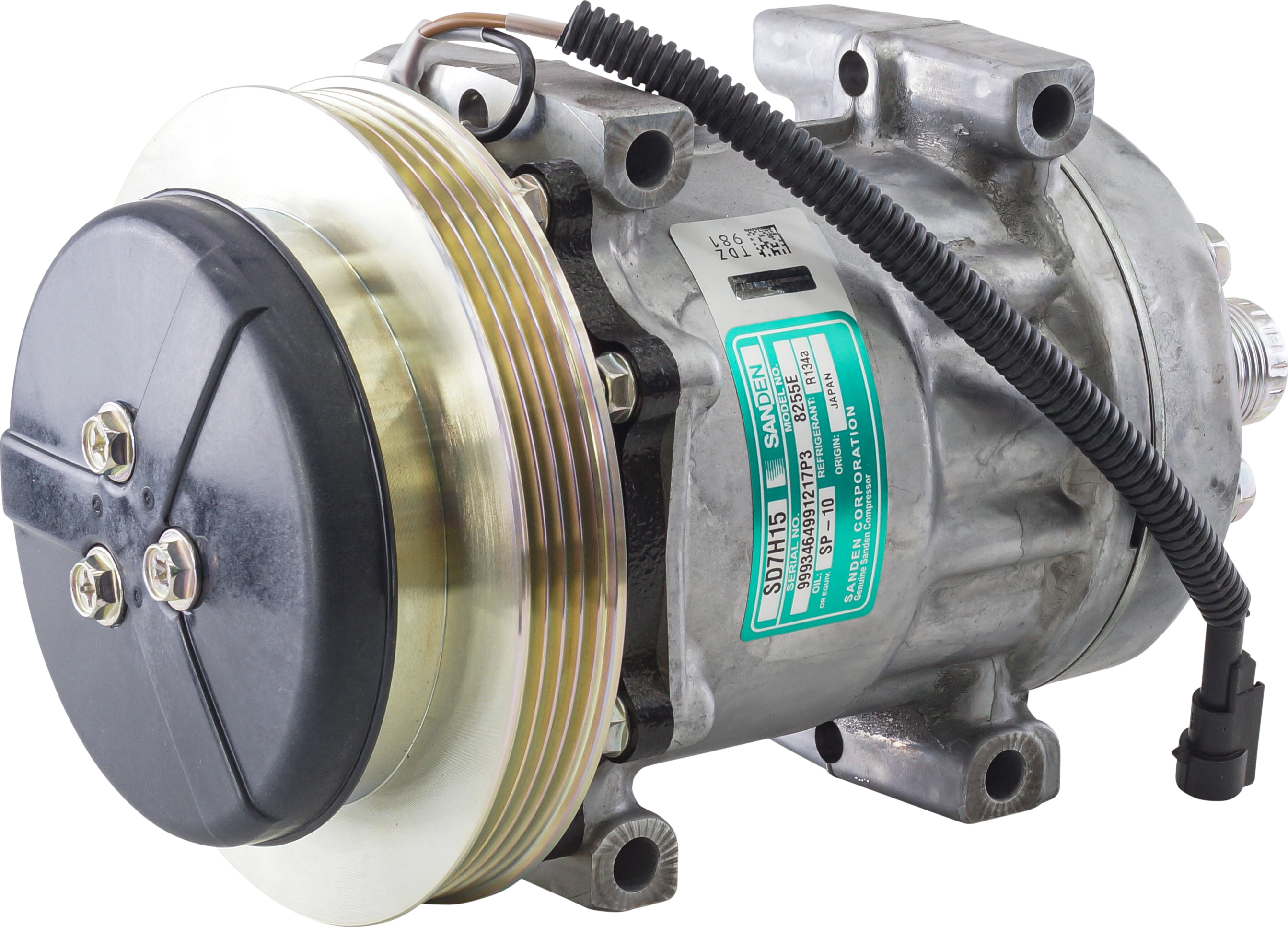

COMPRESSOR, SANDEN, SD7H15 8255, 12V, 4PV, DIRECT MOUNT, REAR TUBE-O, R134A
CO-55685
Description
This Sanden SD7H15 8255 compressor is a 12V unit designed for R134a refrigerant. It features a 4-groove (4PV) pulley and a direct mount configuration with rear Tube-O fittings. The SD7H15 series typically has a 7-cylinder design with a displacement of 154.98 cc/rev.
Specifications
| voltage | 12V |
| pulley grooves | 4 |
| pulley type | 4PV |
| compressor model | SD7H15 |
| refrigerant | R134A |
Weight: 6 kg
