Sanden
Compressors

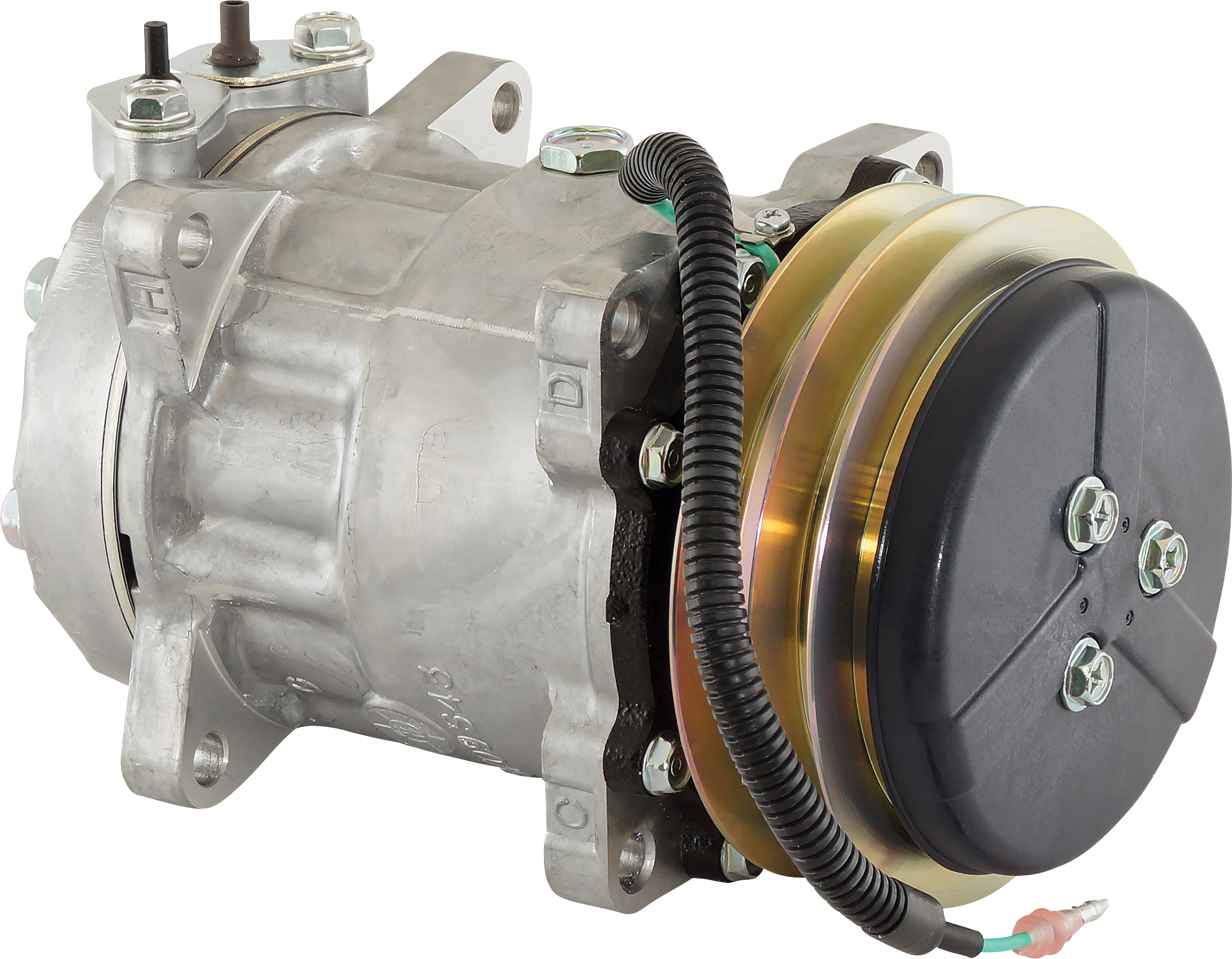

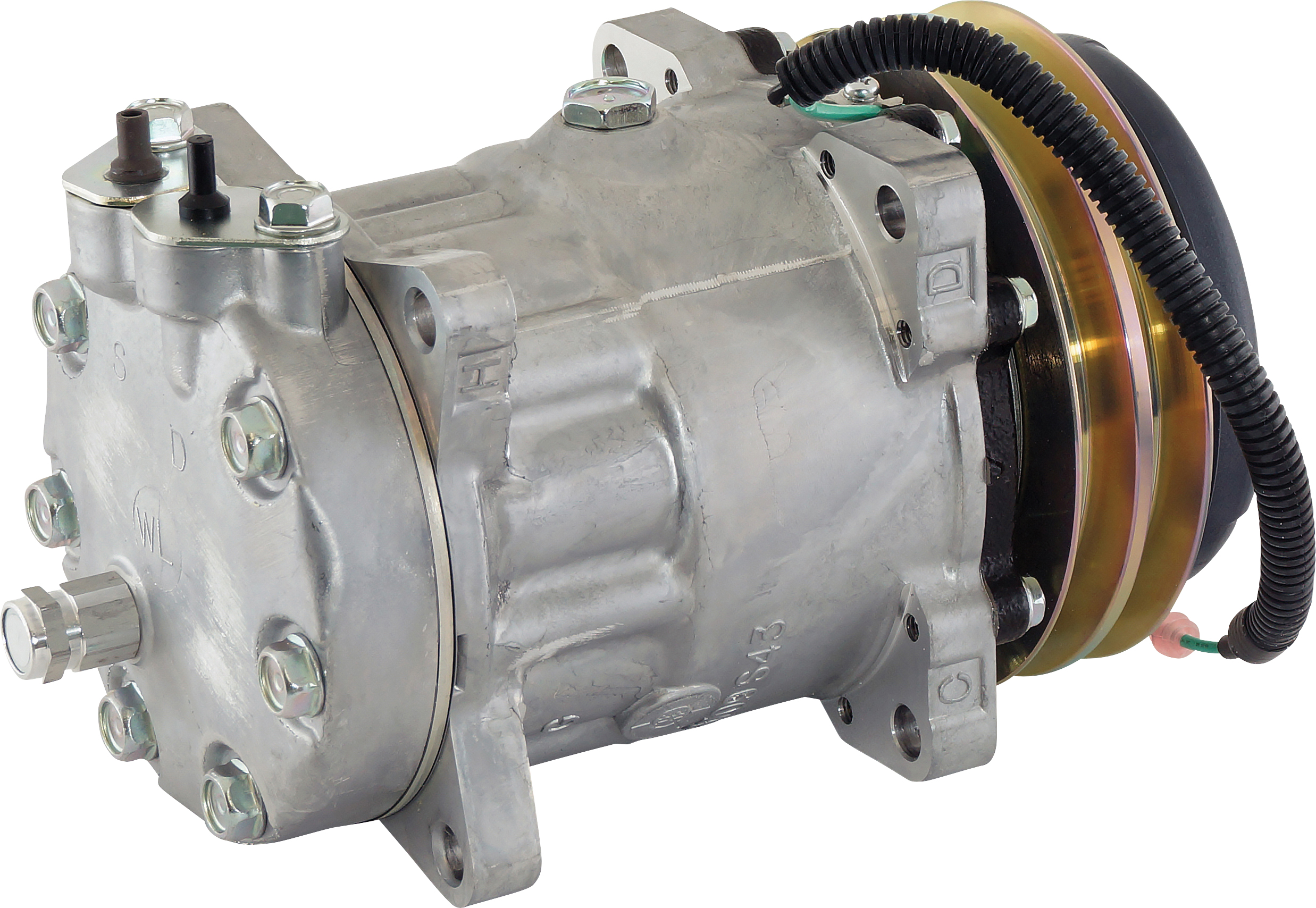

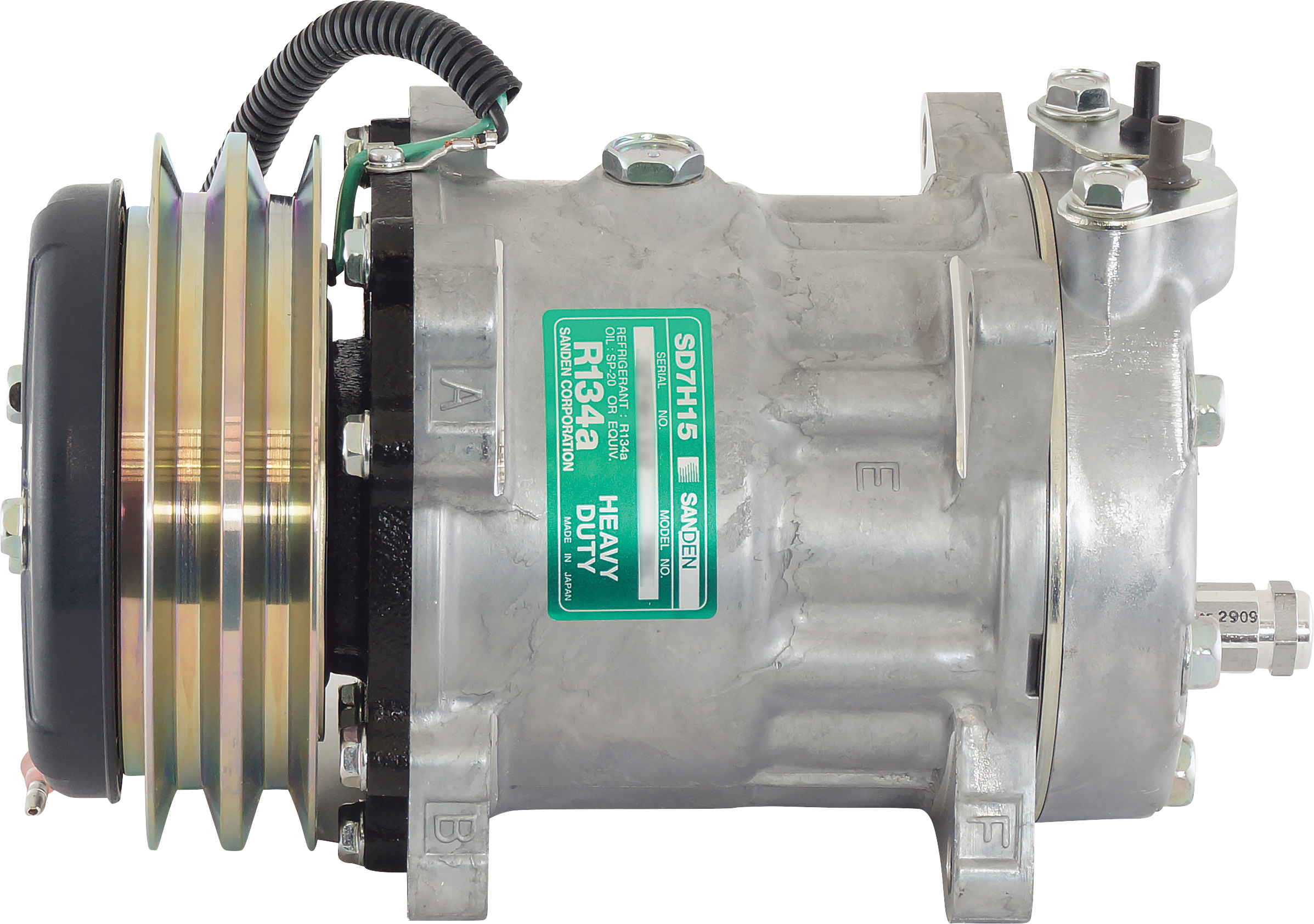

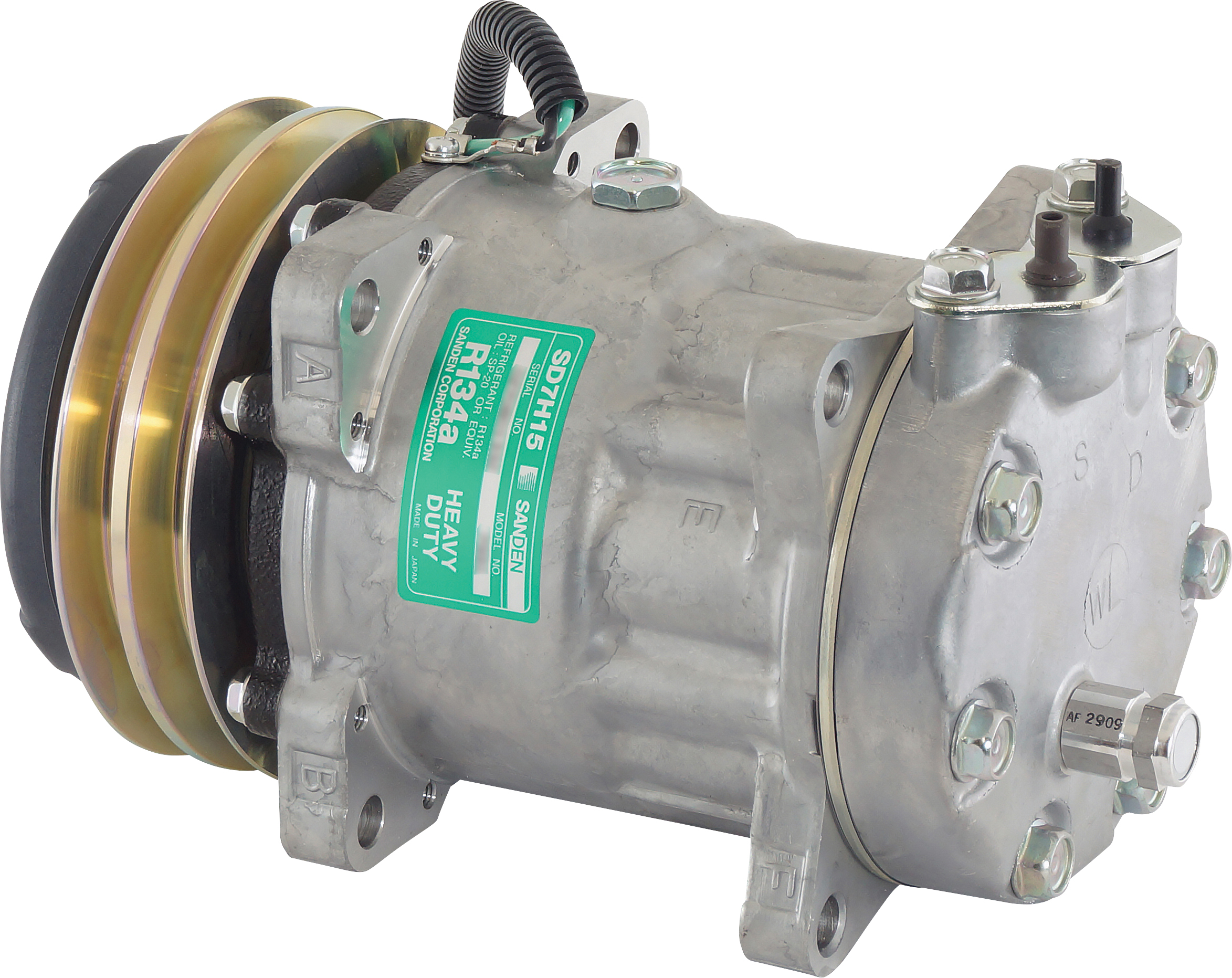

COMPRESSOR, SANDEN, SD7H15 7991, 24V, 2A, 132MM, VERT PAD, R134A
CO-55182
Description
This is a Sanden SD7H15 compressor, model 7991, operating at 24V and compatible with R134a refrigerant. It features a 2-groove (2A) V-belt clutch with a 132mm diameter and a vertical pad head port style with O-ring fittings. This heavy-duty compressor is commonly used as an OEM replacement for Hitachi Excavators.
Specifications
| voltage | 24V |
| pulley type | 2A |
| compressor model | SD7H15 |
| refrigerant | R134A |
Weight: 6 kg
