Sanden
Compressors

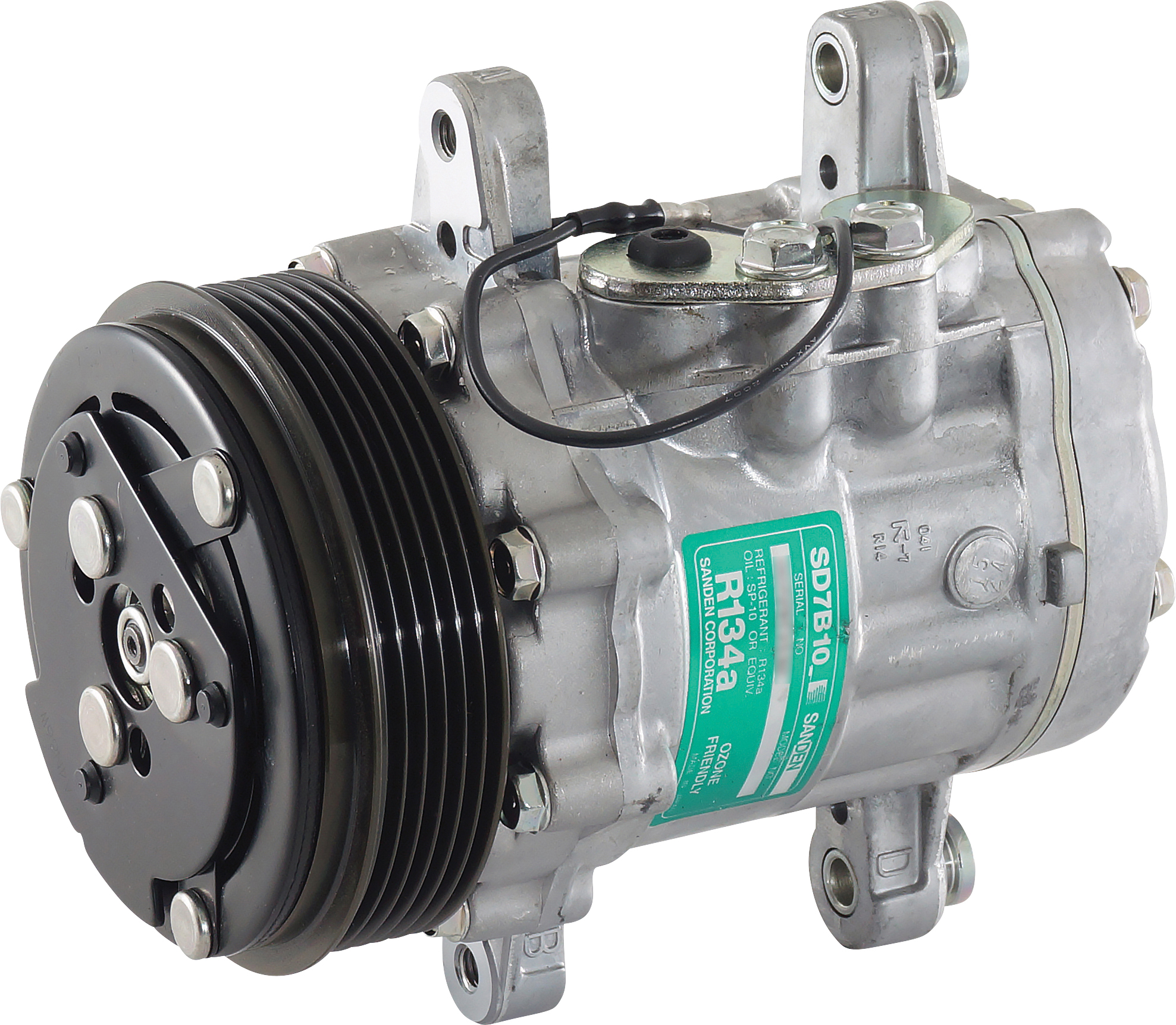

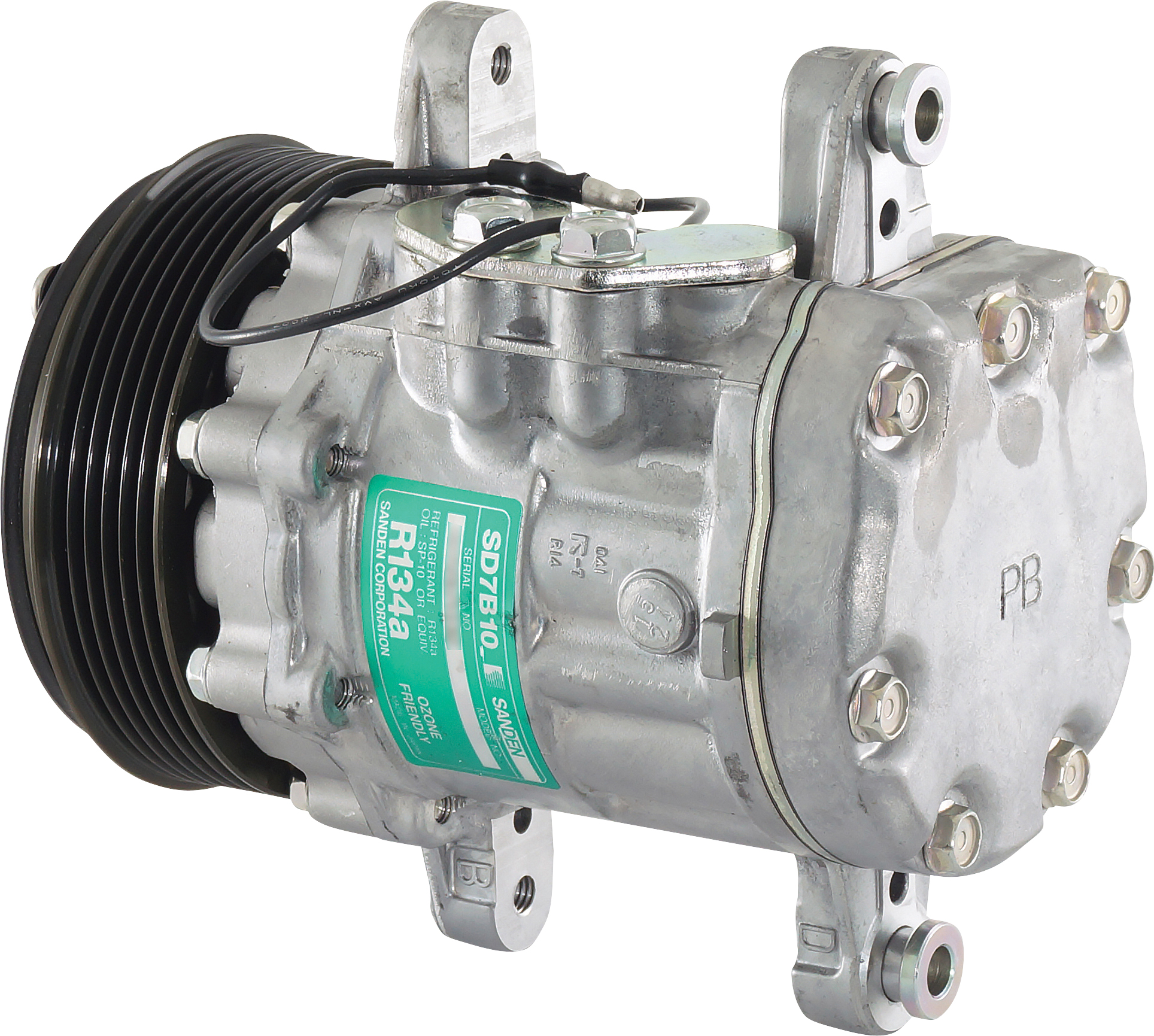

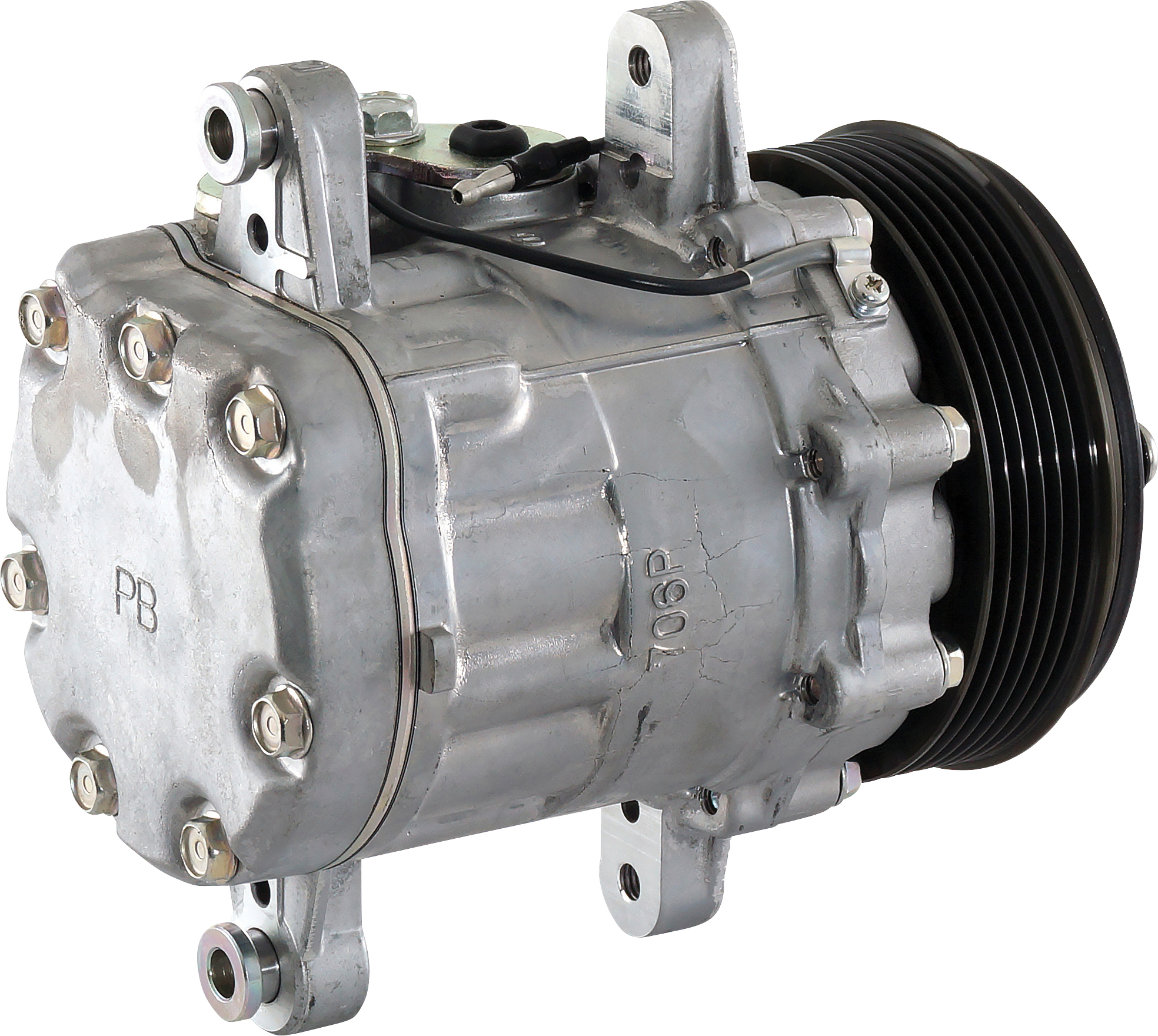

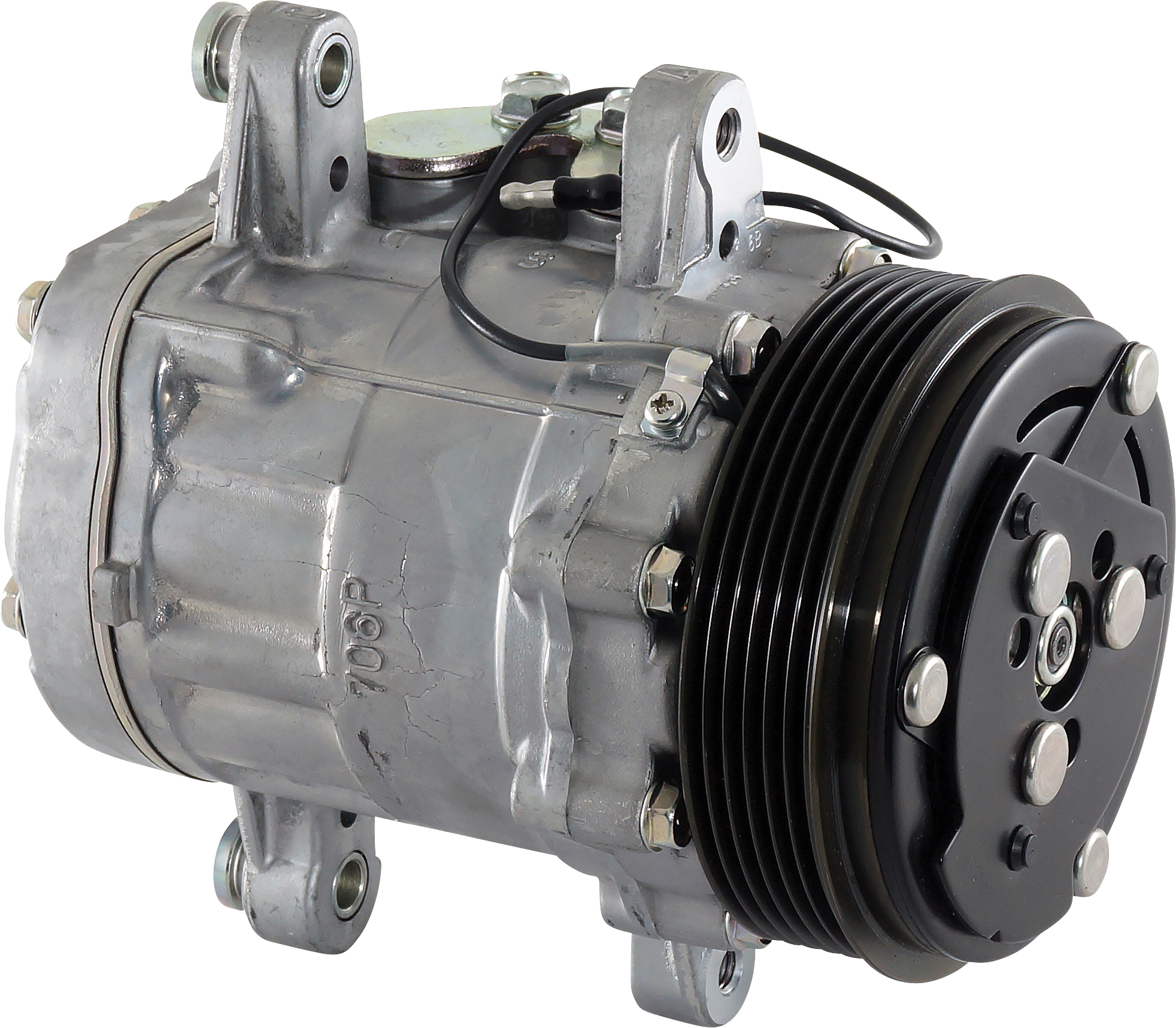

COMPRESSOR, SANDEN, SD7B10 7176, 12V, 6PV, 112MM, PAD, RH SIDE, R134A
CO-53346
Description
This Sanden SD7B10 7176 compressor is a 12V unit designed for R134a refrigerant systems. It features a 6-groove serpentine pulley with a 112mm diameter and a pad-style body port fitting. The compressor has a displacement of 99.80cc (6.1 cubic inches) and a swing mount body.
Specifications
| voltage | 12V |
| pulley grooves | 6 |
| pulley type | 6PV |
| refrigerant | R134A |
Weight: 6 kg
