Sanden
Compressors

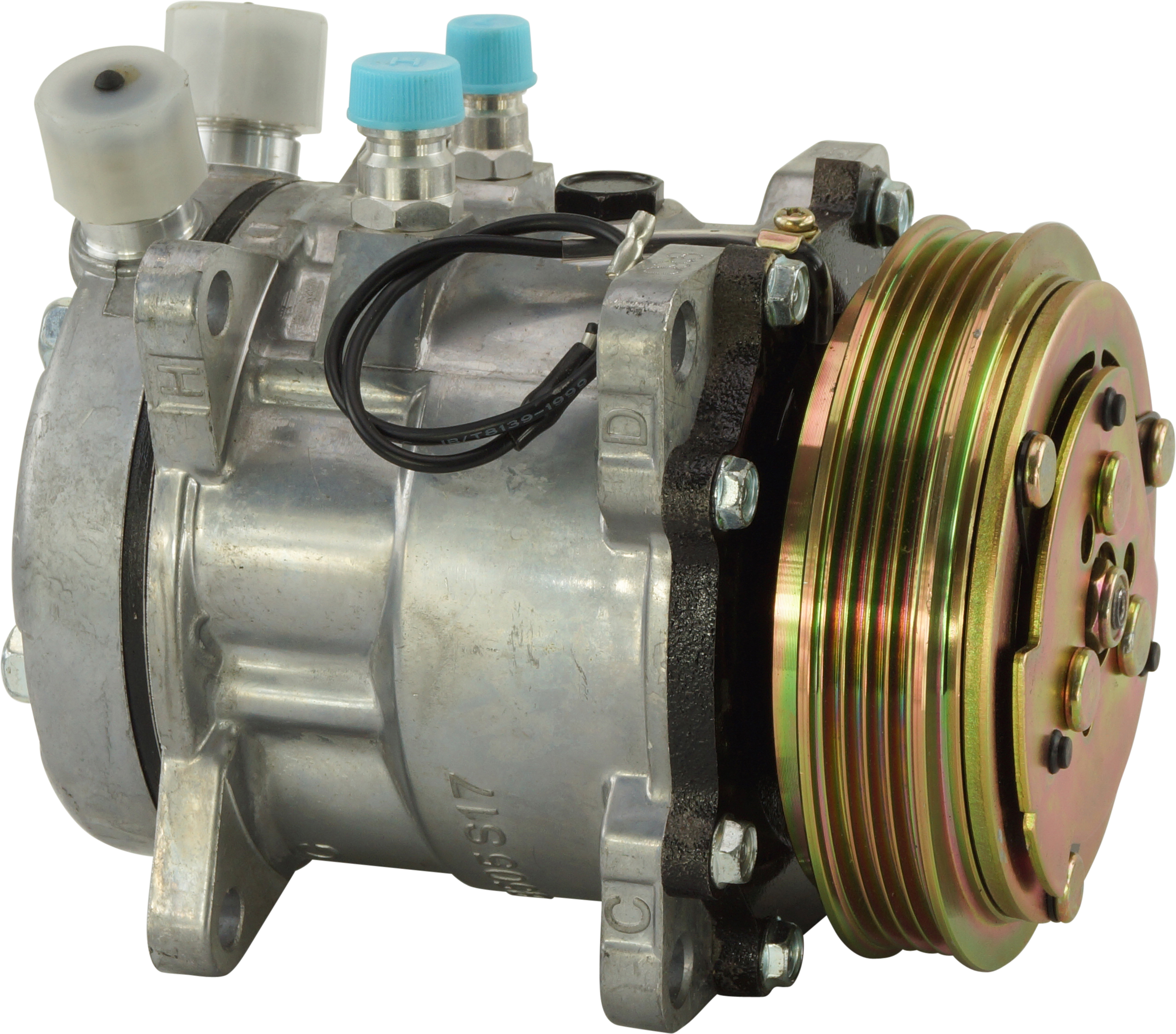

COMPRESSOR, S-SERIES (REPL SANDEN), SD5H09, 12V, 4PV, 125MM, VERT O-RING, R134A
CO-52705S
Description

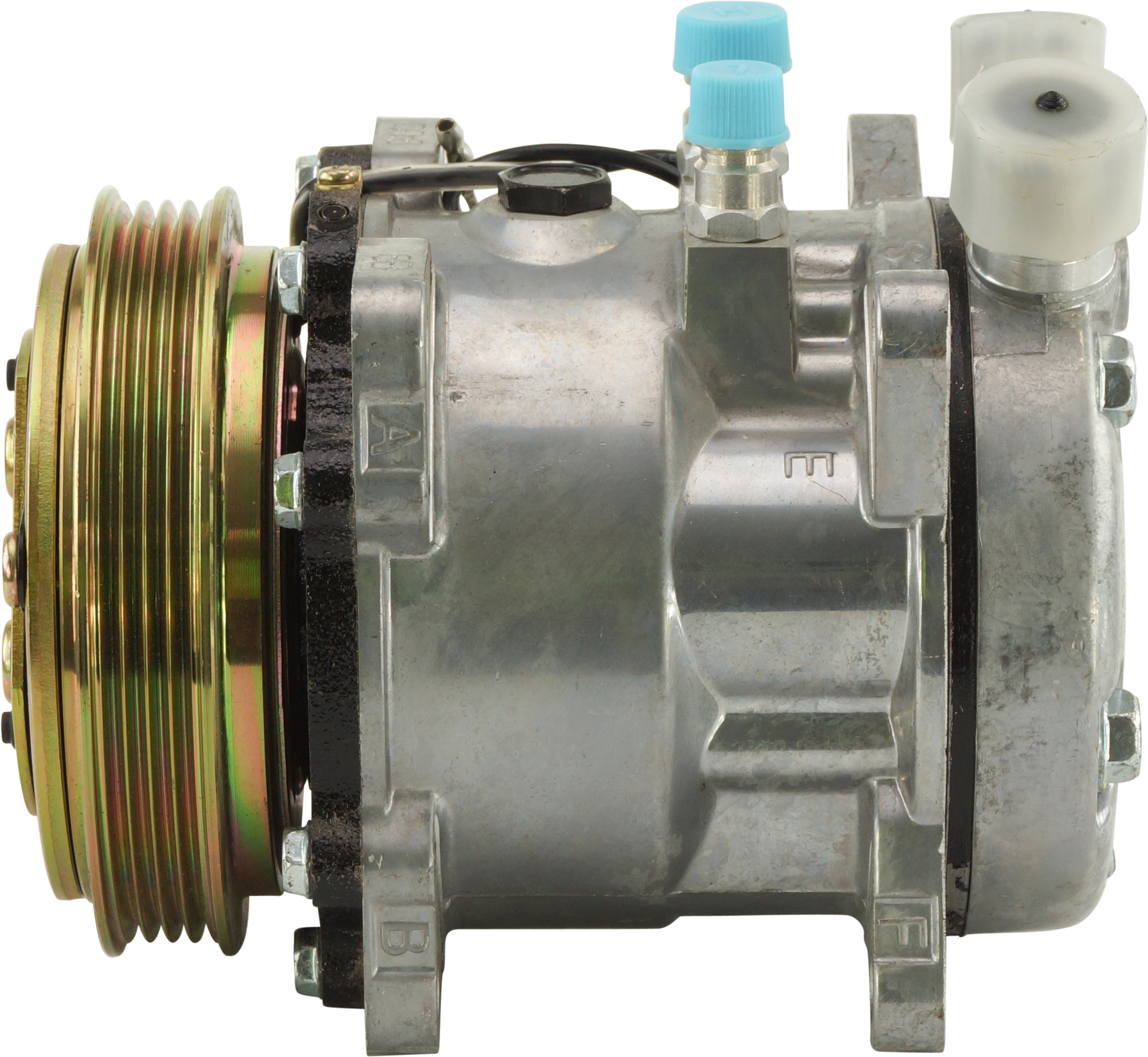

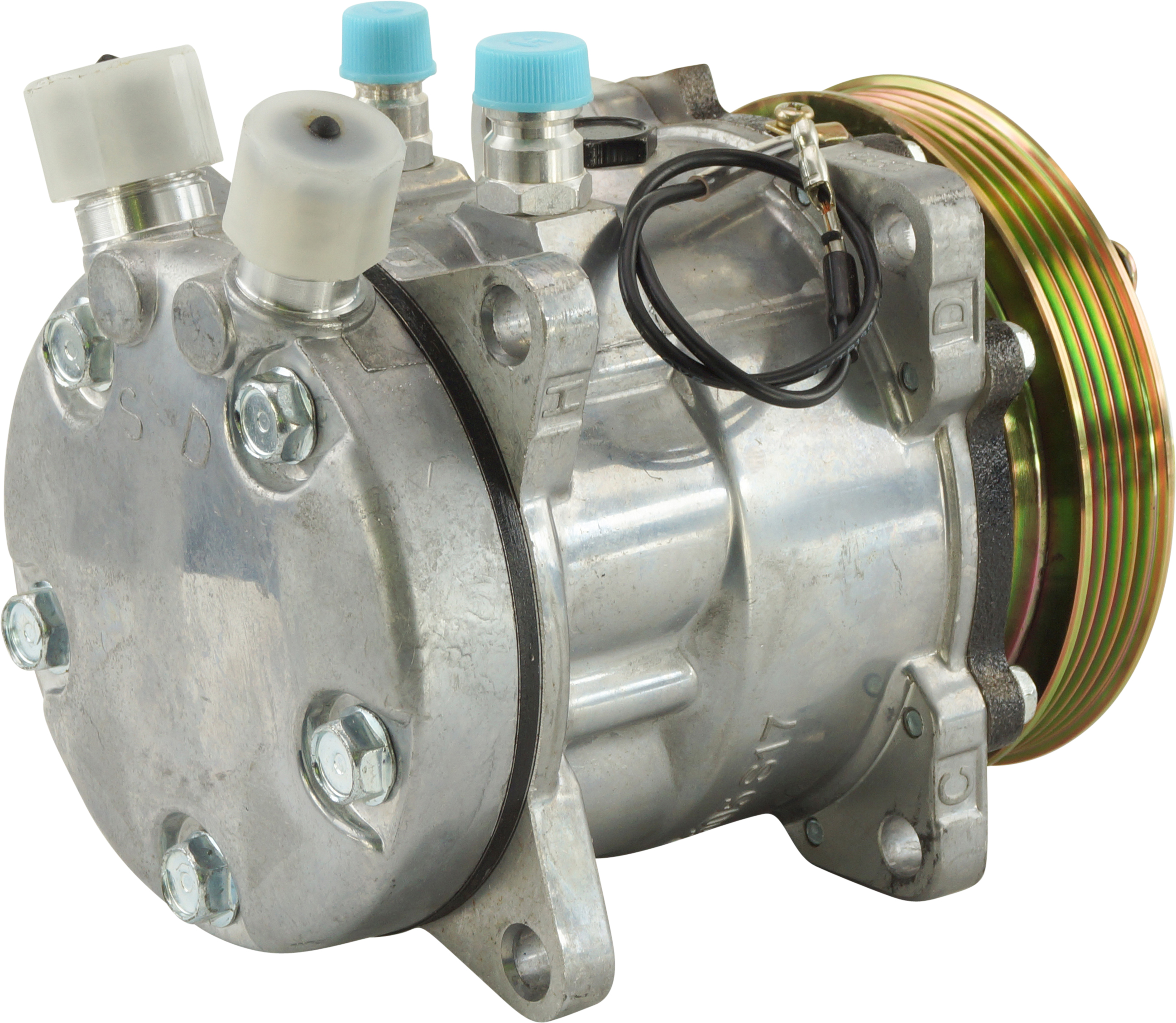

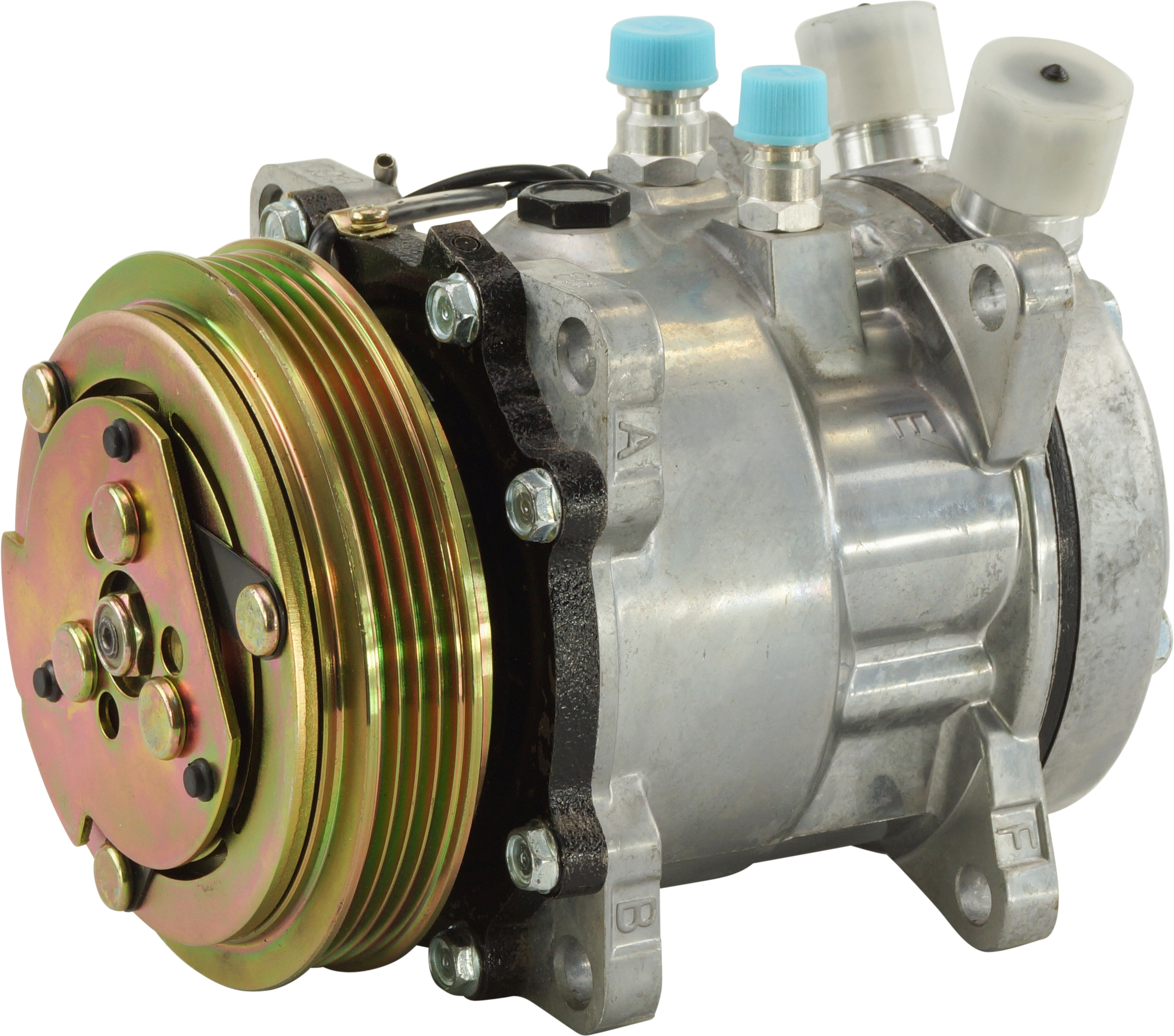

This Sanden SD5H09 S-Series compressor is a fixed displacement unit operating on a 12V electrical system, designed for R134a refrigerant. It features a 4-groove, 125mm pulley and vertical O-ring fittings with an ear mount configuration. The compressor has 5 cylinders and a displacement of 87 cc/rev.
Specifications
| voltage | 12V |
| pulley grooves | 4 |
| pulley type | 4PV |
| compressor model | SD5H09 |
| replaces brand | Sanden |
| refrigerant | R134A |
Weight: 6 kg
