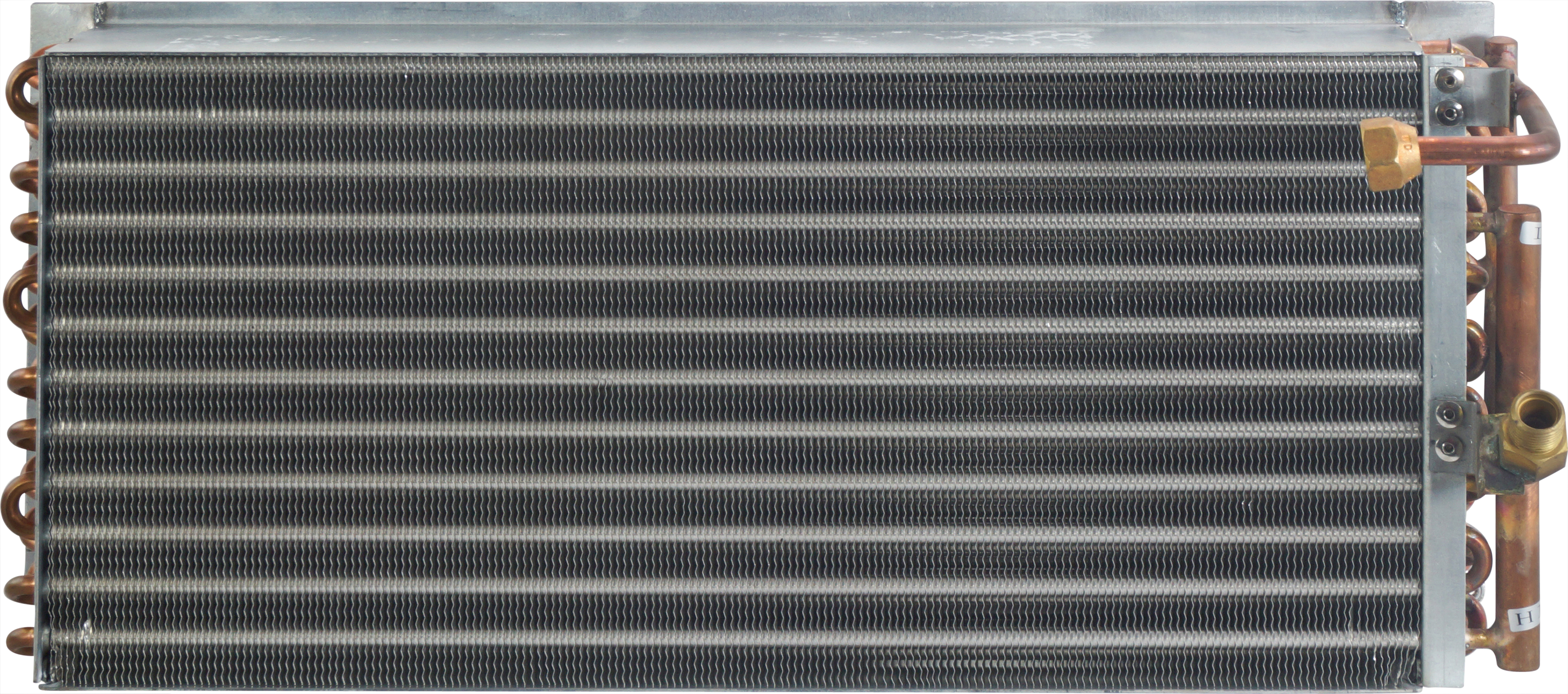

CONDENSER UNIT, SIGMA, EPR4BX1 ROOFTOP UNIT
CNR-92358
Description
The Sigma EPR4BX1 is a robust rooftop packaged HVAC unit designed for heavy-duty off-road applications, providing 4.5 kW (15,350 BTU) cooling capacity. This 24VDC unit features a condenser and is built to withstand high vibration, dust, and extreme ambient temperatures.
Specifications
| cooling capacity | 4.5 kW (15,350 BTU) |
| heating capacity optional | 4.0 kW (13,650 BTU) |
| voltage | 24VDC |
| current draw max | 20 A |
| design ambient temperature | 46°C |
| refrigerant | R134a |
| weight | 45 kg |
| dimensions | 750 x 650 x 365 mm (Length x Width x Height) |
| suction connection | No.10 Male O-Ring |
| discharge connection | No.8 Male O-Ring |
Vehicle / Equipment Applications
Haul TruckDozerBlasthole DrillWheel LoaderHydraulic ExcavatorEarth MovingForklift & TelehandlersRail Special Vehicles
Weight: 3 kg
