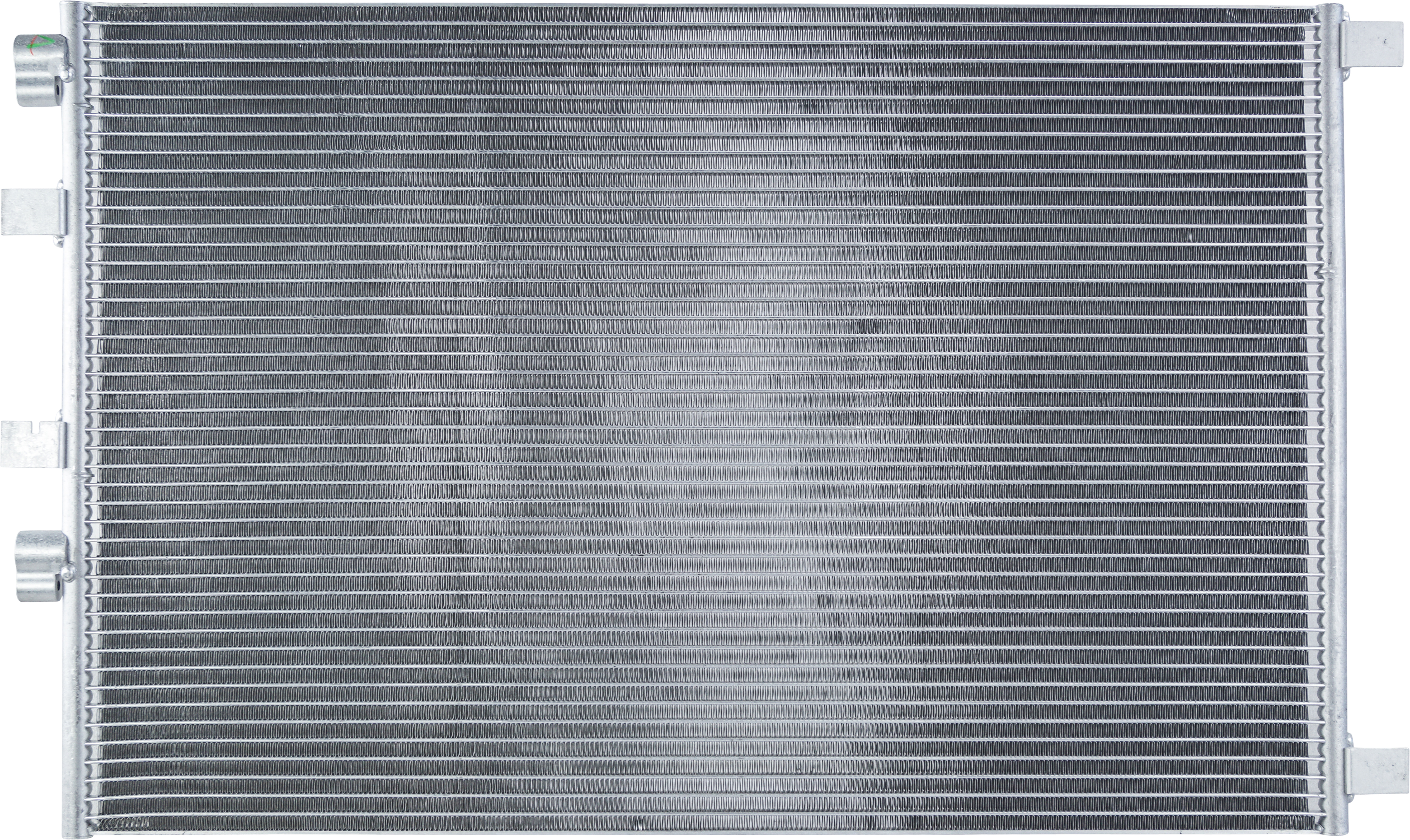

CONDENSER, RENAULT MEGANE II, 1.9 DC
CNO-76953
Description
This condenser is an aluminium parallel flow component designed for the Renault Megane II 1.9 dCi. It functions to dissipate heat from the refrigerant, preparing it for the expansion valve.
Specifications
| core dimensions range | 625-645 mm (length) x 398-415 mm (width) x 12-16 mm (depth) |
| material | Aluminium |
| inlet diameter | 15.5 mm |
| outlet diameter | 15.5 mm |
| drier included | No (typically without drier) |
| oem cross references | 8200115543 |
Vehicle / Equipment Applications
Renault Megane II Hatchback (BM, CM) 1.9 dCi (various engine codes including F9Q 803, F9Q 804, F9Q 816, F9Q 818, F9Q B8, F9Q808)
Weight: 4 kg
