Condensers

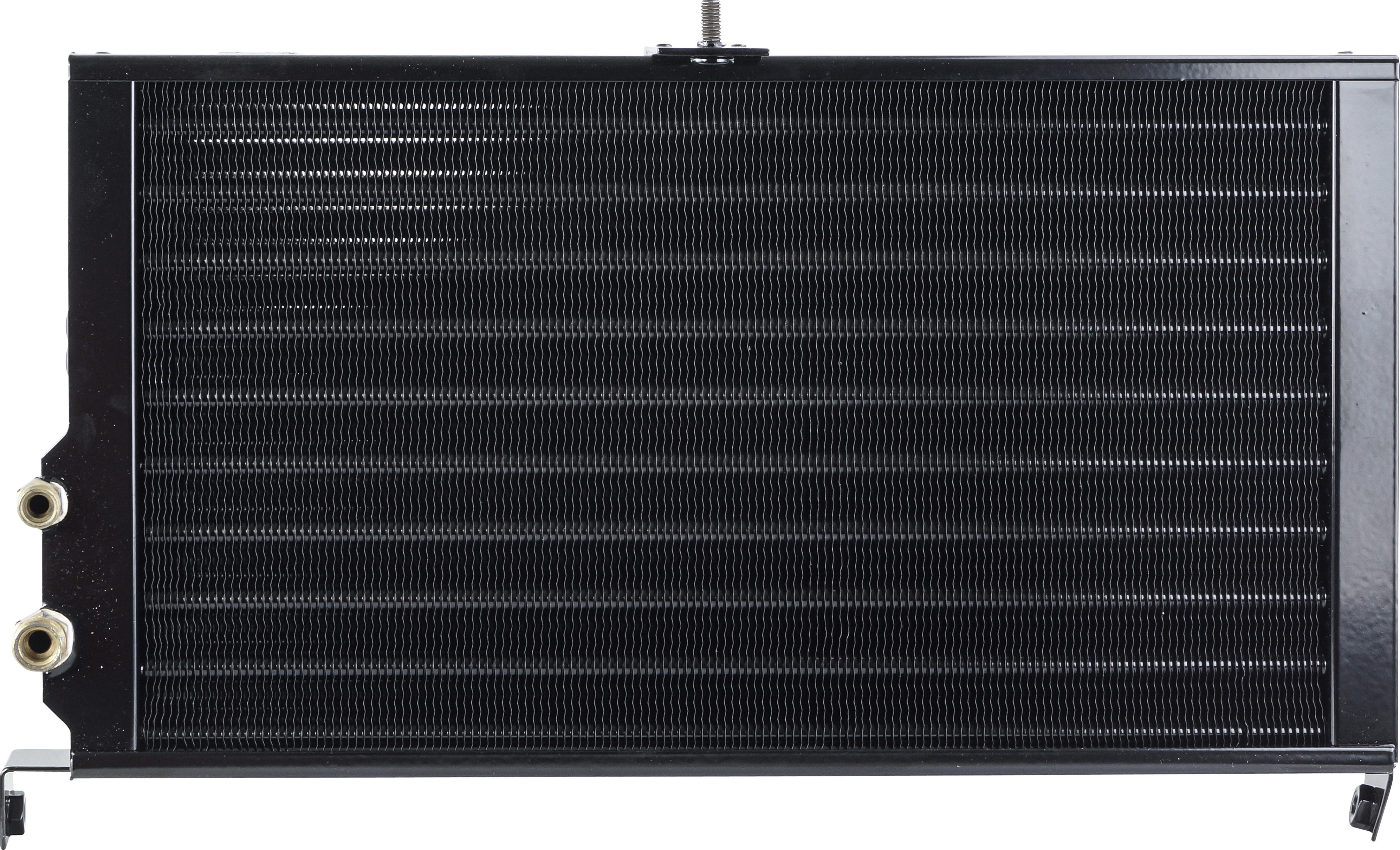

CONDENSER, MASSEY FERGUSON 471-492, 583-596, 8210-8250, 572, 5285, 5290
CNO-54267
Description
This A/C condenser is designed for various Massey Ferguson tractor models, including the 471-492, 583-596, 8210-8250, 5275, 5285, and 5290 series. It features a core height of 9 5/8 inches, a core width of 17 1/8 inches, and a core thickness of 2 7/8 inches. The unit has a #8 Male O-Ring inlet and a #6 Male O-Ring outlet fitting.
Specifications
| core height inches | 9 5/8 |
| core width inches | 17 1/8 |
| core thickness inches | 2 7/8 |
| overall height inches | 11 3/4 |
| overall width inches | 20 1/4 |
| overall thickness inches | 4 3/8 |
| inlet fitting type | #8 Male O-Ring |
| outlet fitting type | #6 Male O-Ring |
| oem cross reference | 3784061M1 |
Vehicle / Equipment Applications
Massey Ferguson 471Massey Ferguson 481Massey Ferguson 491Massey Ferguson 492Massey Ferguson 583Massey Ferguson 590Massey Ferguson 592Massey Ferguson 593Massey Ferguson 595Massey Ferguson 596Massey Ferguson 5275Massey Ferguson 5285Massey Ferguson 5290Massey Ferguson 8210Massey Ferguson 8220Massey Ferguson 8240Massey Ferguson 8245Massey Ferguson 8250
Weight: 4 kg
