JAYAIR
Condensers

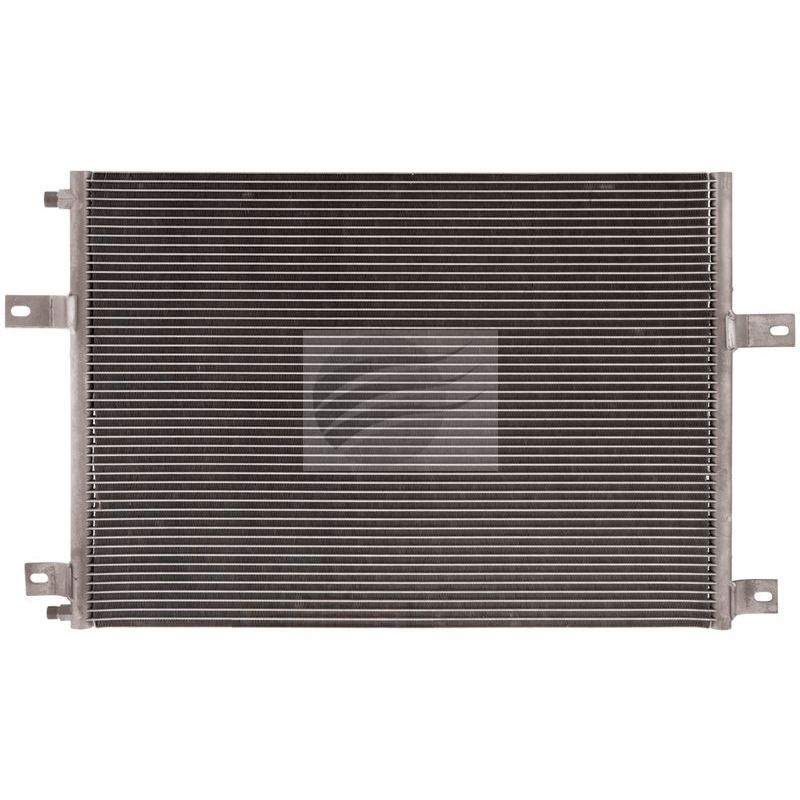

COND MACK GRANITE VISION CH, CHN, CX SERIES 00-07
CN8335
Description
This Jayair A/C condenser is an OE quality replacement part for Mack Granite Vision CH, CHN, and CX Series trucks manufactured between 2000 and 2007. It features a length of 705mm, a height of 482mm, and a thickness of 18mm. The inlet fitting is a #8 Male Insert O-Ring (MIOR) type, and the outlet fitting is a #6 Male Insert O-Ring (MIOR) type, with both fittings located on the same end.
Specifications
| Length (mm) | 705 |
| Fitting Location | Same End |
| Height (mm) | 482 |
| Thickness (mm) | 18 |
| Inlet Fitting Type | # 8 MIOR |
| Outlet Fitting Type | # 6 MIOR |
Weight: 4 kg
