JAYAIR
Condensers
COND GM CADILLAC XLR 06-07 CORVETTE 05-10
CN7583
Description

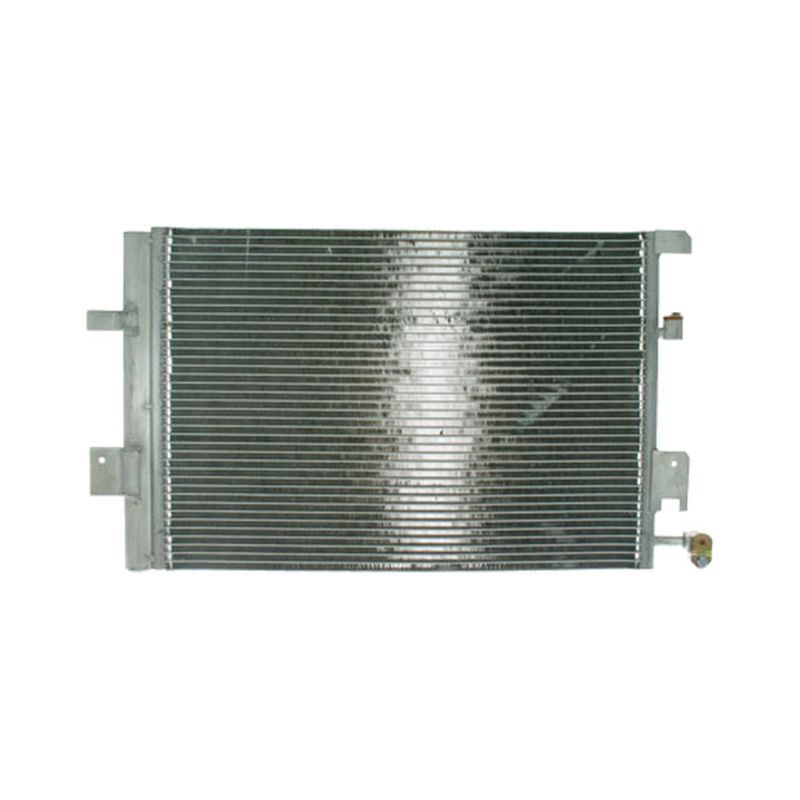

The JAYAIR CN7583 is an A/C condenser designed for specific GM Cadillac XLR models from 2006-2007 and Chevrolet Corvette models from 2005-2010. This condenser features an aluminium core and may include a receiver drier. It is a direct-fit replacement part.
Specifications
| Material | Aluminum Core |
| Core Dimensions | 23 x 15.81 x 0.63 inches (584.2mm x 401.57mm x 16mm) |
| Includes Drier | Yes (with some variants) |
| Replaces OE Number | 10442892 |
| Replaces Partslink Number | GM3030252 |
| Interchange Part Number | 73297, 10442892, GM3030252 |
| Condenser Core Type | Parallel Flow |
Vehicle / Equipment Applications
GM Cadillac XLR 2006-2007Chevrolet Corvette 2005-2010Chevrolet Corvette 2005-2013 (some aftermarket cross-references)Chevrolet SSR 2003-2006 (some aftermarket cross-references)
Weight: 4 kg
