Denso
Condensers

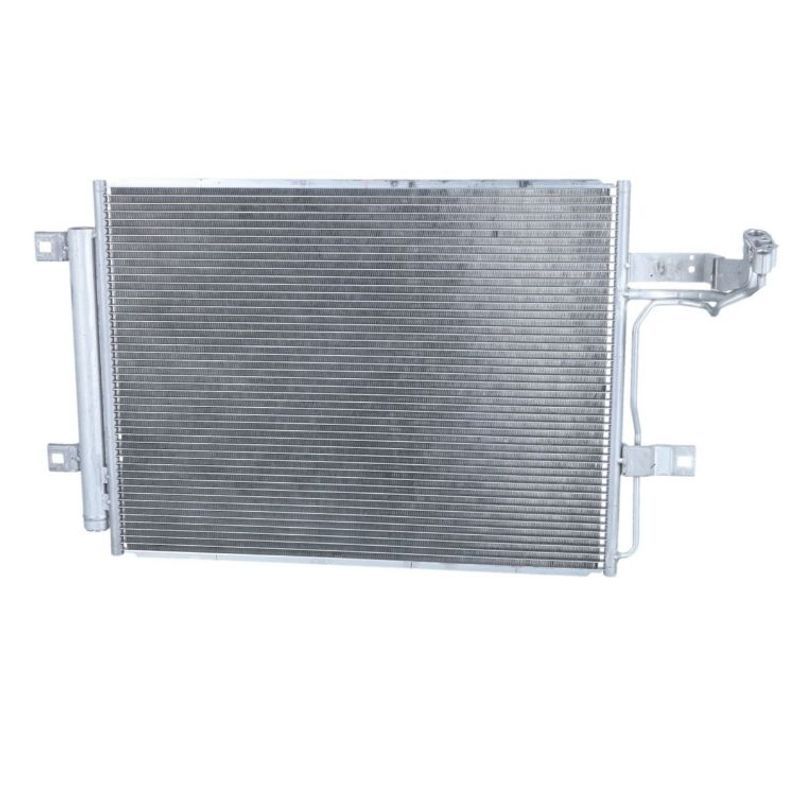

COND MAZDA3 BP 2.0L & 2.5L PET 19-ON, CX-30 19-ON
CN5816
Description
This Denso condenser is designed for Mazda 3 BP 2.0L & 2.5L Petrol models from 2019 onwards, and Mazda CX-30 2.0L & 2.5L Petrol models from 2019 onwards. It is a parallel flow condenser with a built-in receiver/dryer and block type inlet/outlet fittings. Denso condensers feature a zinc diffusion layer for corrosion resistance and a unique fin design for optimal airflow.
Specifications
| Configuration | Parallel Flow Condenser (PFC) |
| Built-in Receiver/Dryer | Yes |
| Inlet/Outlet Fitting Design | Block |
| Refrigerant | R134a |
| Approximate Core Dimensions (for CX-30) | 597.9mm Length, 382.8mm Height, 11.9mm Thickness |
| Approximate Core Dimensions (for Mazda 3 BP) | 599mm Length, 383mm Height, 16mm Thickness |
| OEM Cross-references (Mazda CX-30) | BDTS-61-480B, BDTS-61-480A, BDWK-61-480B, VA45-61-480A |
| OEM Cross-references (Mazda 3 BP) | BJS8-61-480 |
Vehicle / Equipment Applications
Mazda 3 BP 2.0L & 2.5L Petrol (2019-ON)Mazda CX-30 2.0L & 2.5L Petrol (2019-ON)
Weight: 4 kg
