Sanden
Compressors

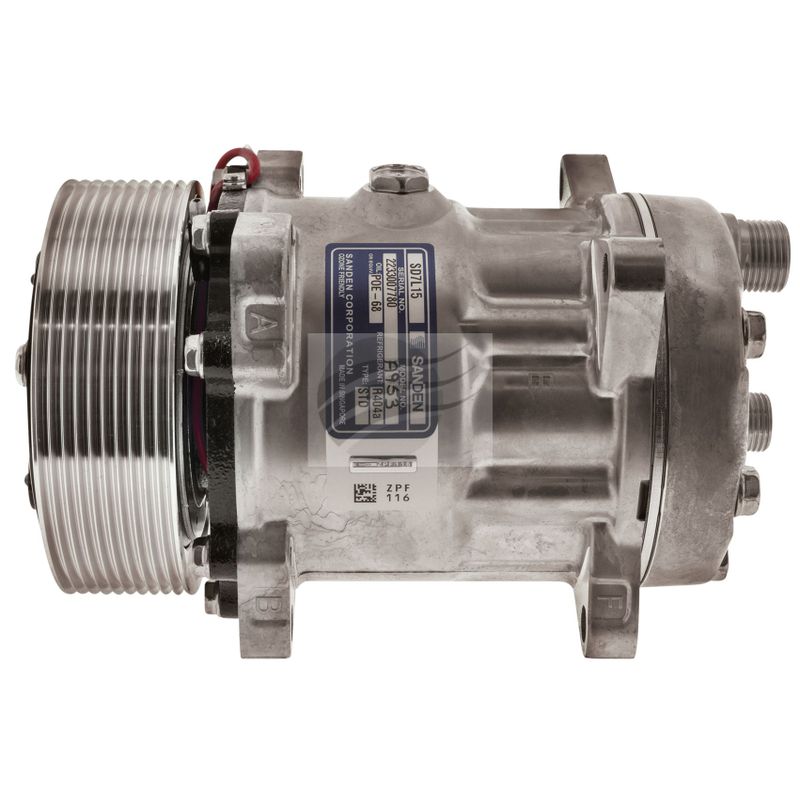

COMP SD7L15 12V 10PV 125MM HOR EAR MOUNT R404A
CMA953
Description
This Sanden SD7L15 fixed displacement compressor operates on a 12V electrical system and is designed for R404a refrigerant. It features a 10PV (10 groove) 125mm clutch and horizontal O-ring ports for system connection. The compressor has a displacement of 154.98 cc/rev with 7 cylinders and an ear mount design.
Specifications
| Voltage | 12V |
| Pulley Type | 10PV |
| Ports | HOR |
| Model | SD7L15 |
| Refrigerant Type | R404a |
Weight: 6 kg
