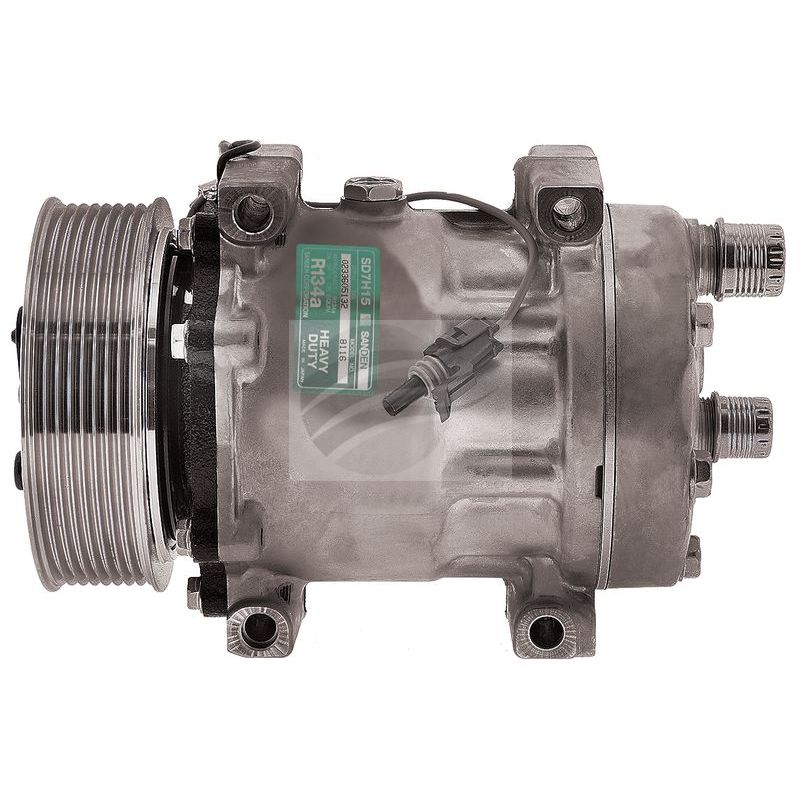

COMP MACK MAGNUM TRUCK SD7H15 24V 8PV 119MM HOR DIRECT MOUNT
CMA921
Description
This Sanden SD7H15 compressor is a 7-cylinder, 24V unit designed for heavy-duty applications, featuring an 8-groove, 119mm diameter pulley and horizontal O-ring ports for direct mounting. It has a displacement of 154.98 cc/rev and is compatible with R134a refrigerant.
Specifications
| Voltage | 24V |
| Pulley Type | 8PV |
| Pulley Diameter | 119mm |
| Ports | HOR |
| Model | SD7H15 |
| Refrigerant Type | R134a |
Weight: 6 kg
