JAYAIR
Compressors

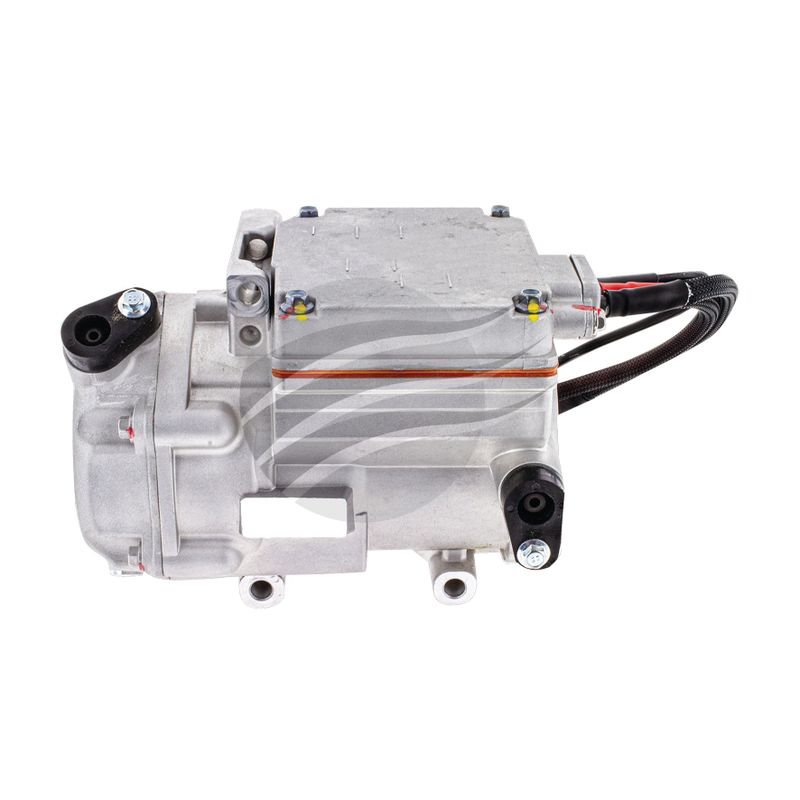

COMP JAYAIR ELECTRIC 12V 18CC
CM9782
Description
The JAYAIR CM9782 is an electric 12V 18cc scroll compressor, designed for applications where traditional belt drives are not feasible or space is limited. It operates with R134a or R1234YF refrigerants.
Specifications
| Voltage | 12V |
| Displacement | 18.0 cc/rev |
| Refrigerant Type | R134a, R1234YF |
| Operating Voltage Range | 10-16 VDC |
| Current Draw (12VDC) | 63.3A (2500rpm), 85A (3500rpm), 96A (4500rpm) |
| Refrigerating Capacity | 1.15 kW (2500rpm), 1.61 kW (3500rpm), 2.15 kW (4500rpm) |
| Compressor Oil Capacity | 100 cc Zerol Ester 68SL Oil |
| Weight | 5.5 kg |
| Protection Rating | IP67 |
Vehicle / Equipment Applications
Applications without belt drivesSpace-constrained installations
Weight: 5.5 kg
