Sanden
Compressors
COMP MACK MAGNUM, QUANTUM SUPERLINER 15L DSL 99-08
CM8981
Description

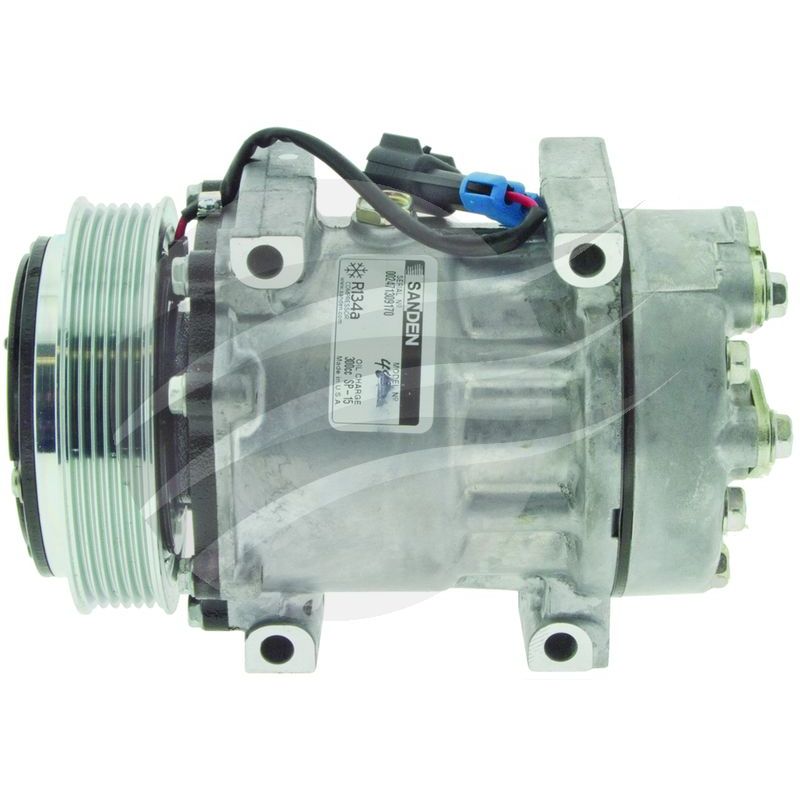

This Sanden SD7H15 fixed displacement compressor is designed for heavy-duty applications, featuring a 7-cylinder swash plate piston type mechanism. It operates on a 12V electrical system and uses R134a refrigerant. The compressor is pre-filled with 300ml of oil and has lateral pad ports.
Specifications
| Voltage | 12V |
| Pulley Type | 6PV |
| Pulley Diameter | 129mm |
| Ports | PAD |
| Model | SD7H15 |
| Refrigerant Type | R134a |
| Prefilled Oil Qty | 300ml |
Weight: 6 kg
