Sanden
Compressors

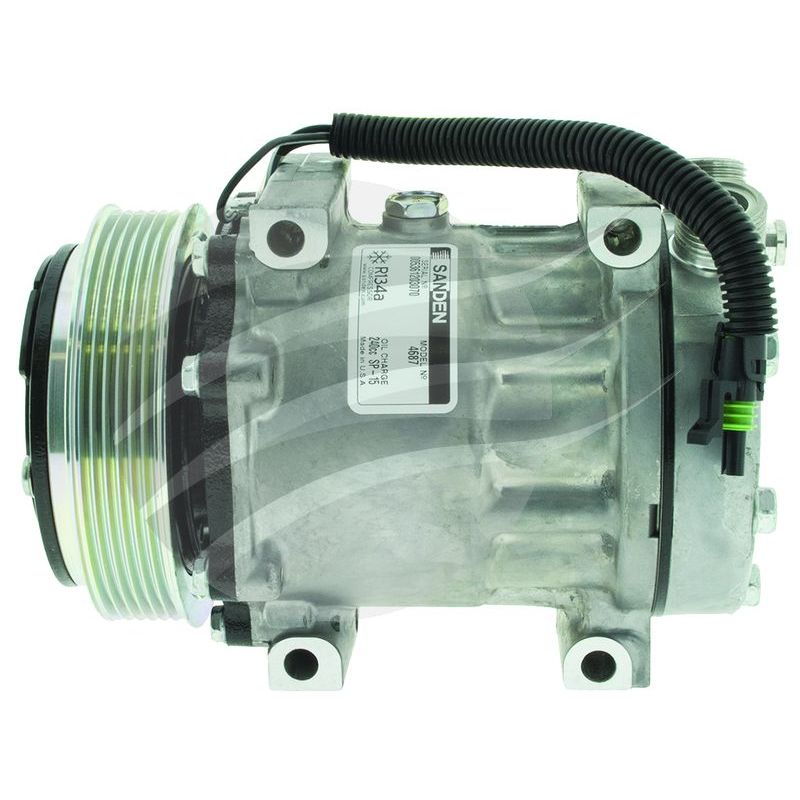

COMP FREIGHTLINER SD7H15 12V 6PV 125MM VTOR DIRECT MOUNT
CM8687
Description
This Sanden SD7H15 direct mount compressor operates on 12V and features a 6PV (6 groove) 125mm pulley. It is designed for R134a refrigerant systems and utilises vertical tube O-ring ports. The compressor has a displacement of 155cc and contains seven cylinders.
Specifications
| Voltage | 12V |
| Pulley Type | 6PV |
| Pulley Diameter | 125mm |
| Ports | Vertical Tube O |
| Model | SD7H15 |
| Refrigerant Type | R134a |
Weight: 6 kg
