Sanden
Compressors

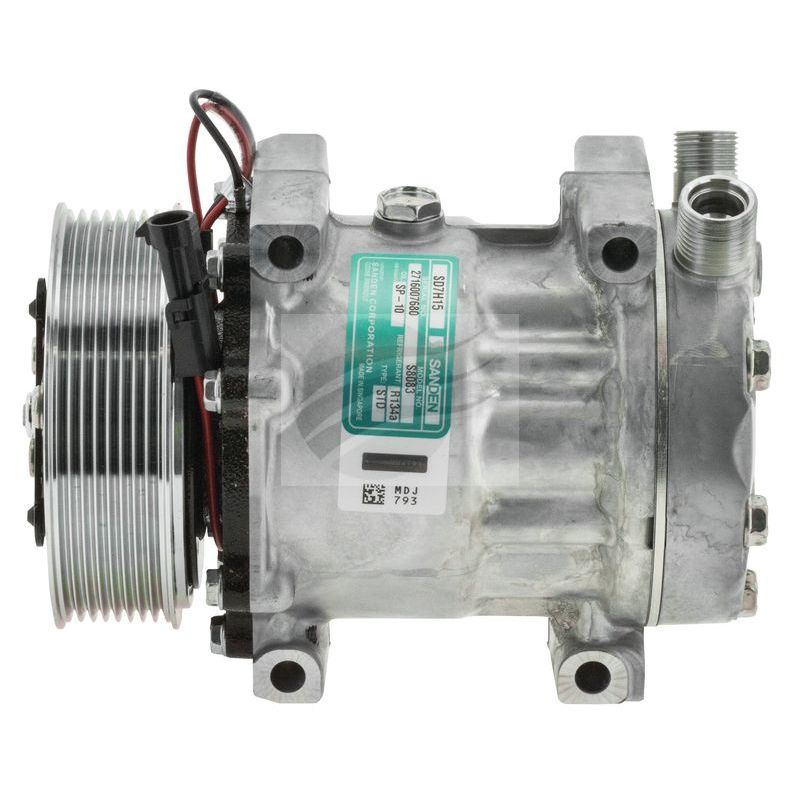

COMP SD7H15 12V 8PV 119MM VOR DIRECT MOUNT JE HEAD
CM8083
Description
This Sanden SD7H15 heavy-duty air conditioning compressor features a 12V electrical system and an 8-groove serpentine pulley with a 119mm diameter. It is designed for direct mounting with a JE cylinder head and Vertical O-Ring (VOR) port fittings. The compressor is pre-filled with 240ml of PAG 100 or SP15 oil and is compatible with R134a refrigerant.
Specifications
| Voltage | 12V |
| Pulley Type | 8PV |
| Pulley Diameter | 119mm |
| Ports | VOR |
| Model | SD7H15 |
| Refrigerant Type | R134a |
| Prefilled Oil Qty | 240ml |
Weight: 6 kg
