Sanden
Compressors
COMP SD7H15 12V 8PV 119MM HOR EAR MOUNT KG HEAD
CM8027A
Description

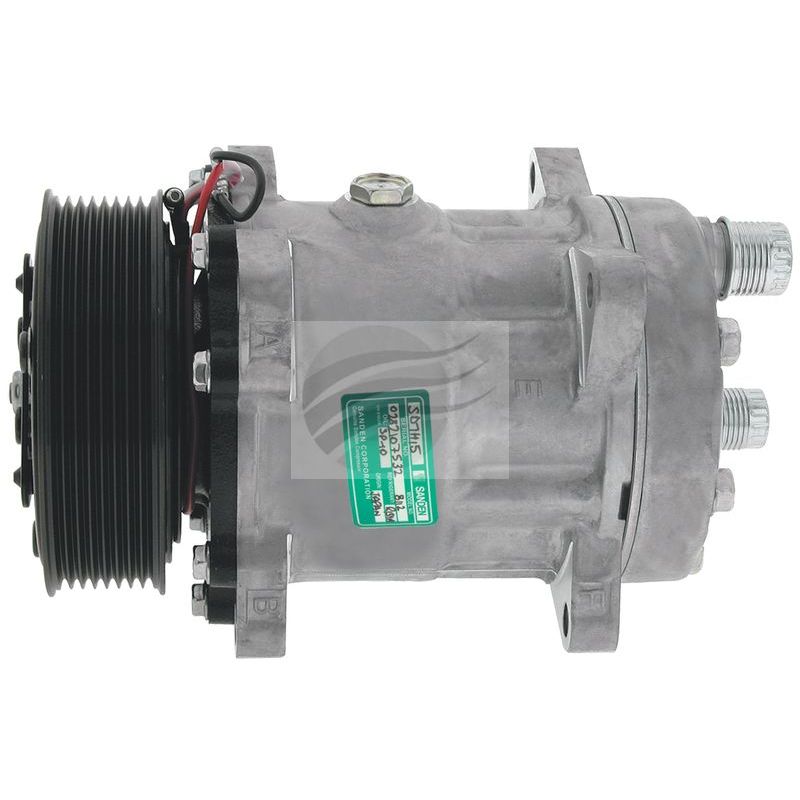

This Sanden SD7H15 compressor is a 12V unit with an 8PV pulley, measuring 119mm in diameter. It features horizontal ports and an ear mount with a KG head. The compressor is designed for R134a refrigerant systems.
Specifications
| Voltage | 12V |
| Pulley Type | 8PV |
| Pulley Diameter | 123mm |
| Ports | HOR |
| Model | SD7H15 |
| Refrigerant Type | R134a |
| Prefilled Oil Qty | 135ml |
Weight: 6 kg
