Sanden
Compressors

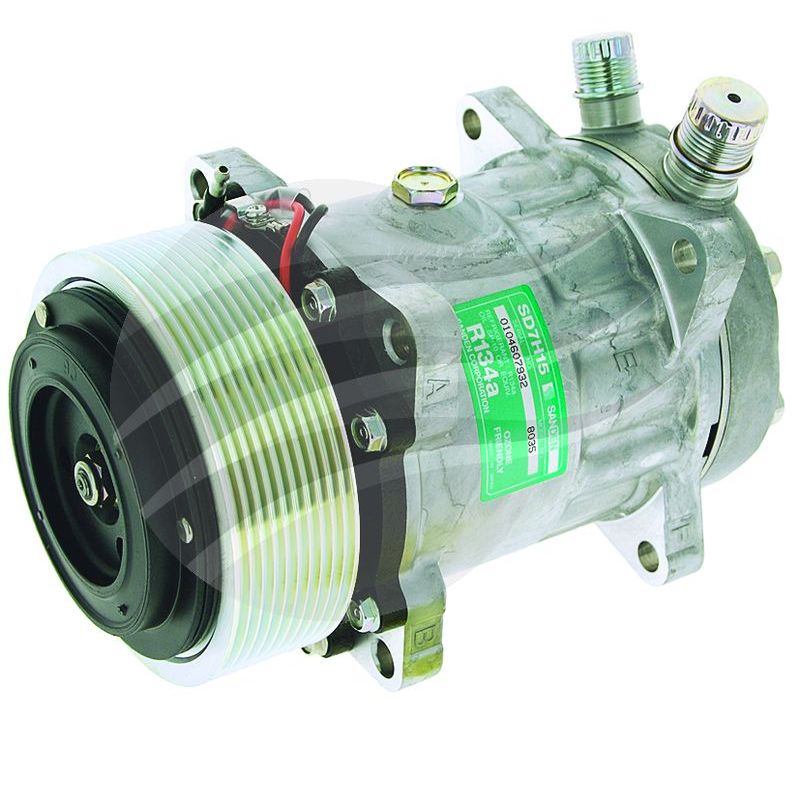

COMP SD7H15 12V 10PV 125MM VOR EAR MOUNT JE HEAD
CM7931
Description
This Sanden SD7H15 compressor operates at 12V and is compatible with R134a refrigerant. It features a 10PV (10 groove) pulley with a 125mm diameter and VOR (Vertical O-Ring) ports with a JE head and ear mount.
Specifications
| Voltage | 12V |
| Pulley Type | 10PV |
| Pulley Diameter | 125mm |
| Ports | VOR |
| Model | SD7H15 |
| Refrigerant Type | R134a |
| Prefilled Oil Qty | 135ml |
Weight: 6 kg
