Sanden
Compressors
COMP SD7H15 24V 1B 146MM VOR EAR MOUNT JE HEAD
CM7887
Description

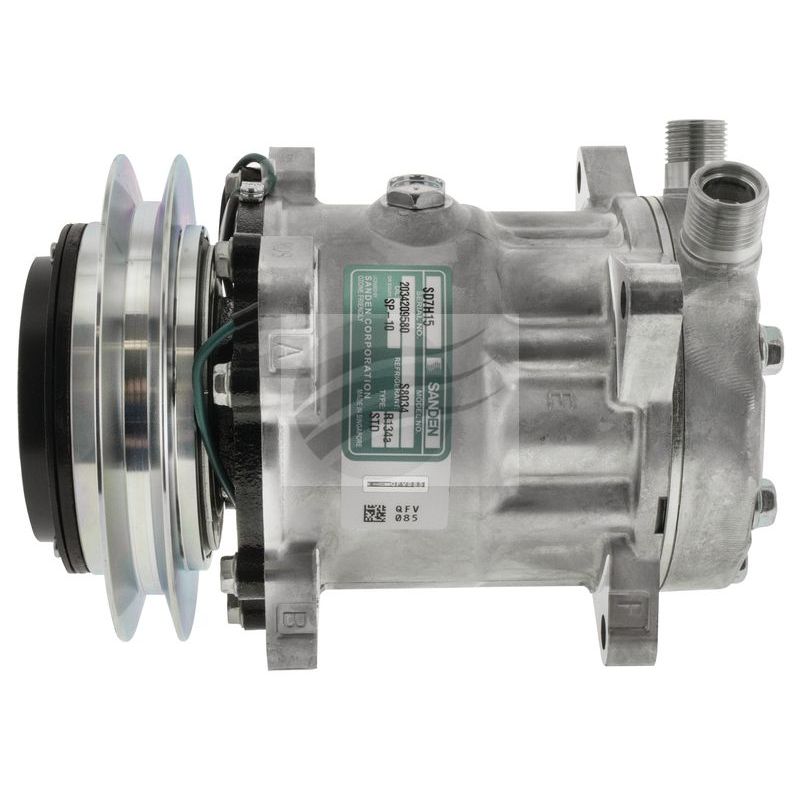

This Sanden SD7H15 A/C compressor operates at 24V and features a 1B (single groove) V-belt pulley with a 146mm diameter. It is equipped with VOR (Vertical O-Ring) ports and an ear mount configuration with a JE head, designed for R134a refrigerant systems.
Specifications
| Voltage | 24V |
| Pulley Type | 1B |
| Pulley Diameter | 146mm |
| Ports | VOR |
| Model | SD7H15 |
| Refrigerant Type | R134a |
| Prefilled Oil Qty | 135ml |
Weight: 6 kg
