Sanden
Compressors

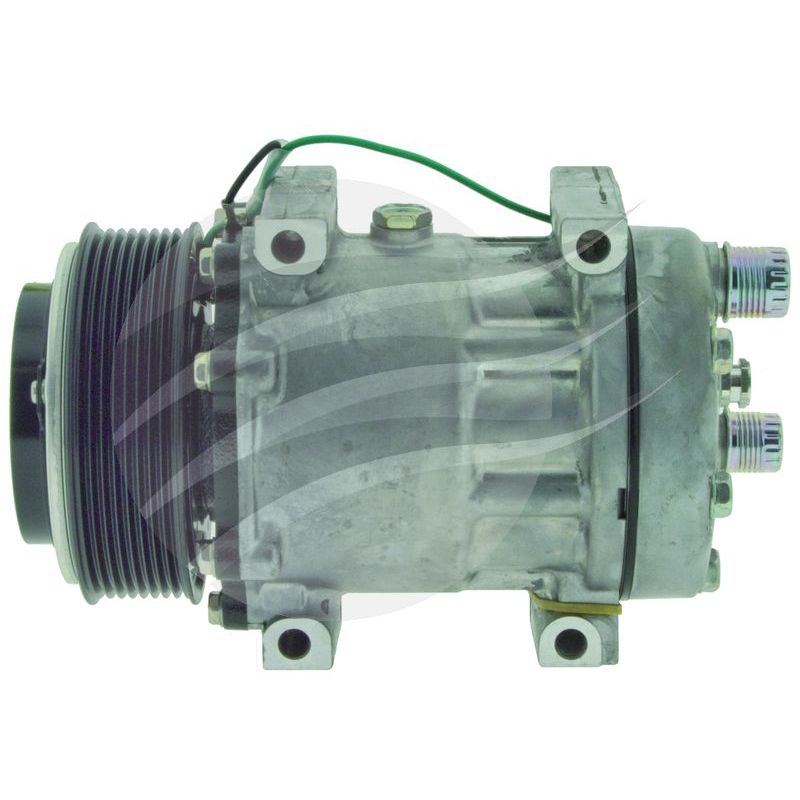

COMP SD7H15 12V 8PV 119MM HOR DIRECT MOUNT KH HEAD
CM7086
Description
This Sanden SD7H15 compressor is a 12V unit featuring an 8-groove serpentine pulley with a 119mm diameter. It is designed for horizontal direct mounting with a KH head and uses R134a refrigerant. The compressor has a displacement of 9.5 cubic inches (155cc) and is pre-filled with 240ml of PAG100 oil.
Specifications
| Voltage | 12V |
| Pulley Type | 8PV |
| Pulley Diameter | 119mm |
| Ports | HOR |
| Model | SD7H15 |
| Refrigerant Type | R134a |
| Prefilled Oil Qty | 240ml |
Weight: 6 kg
