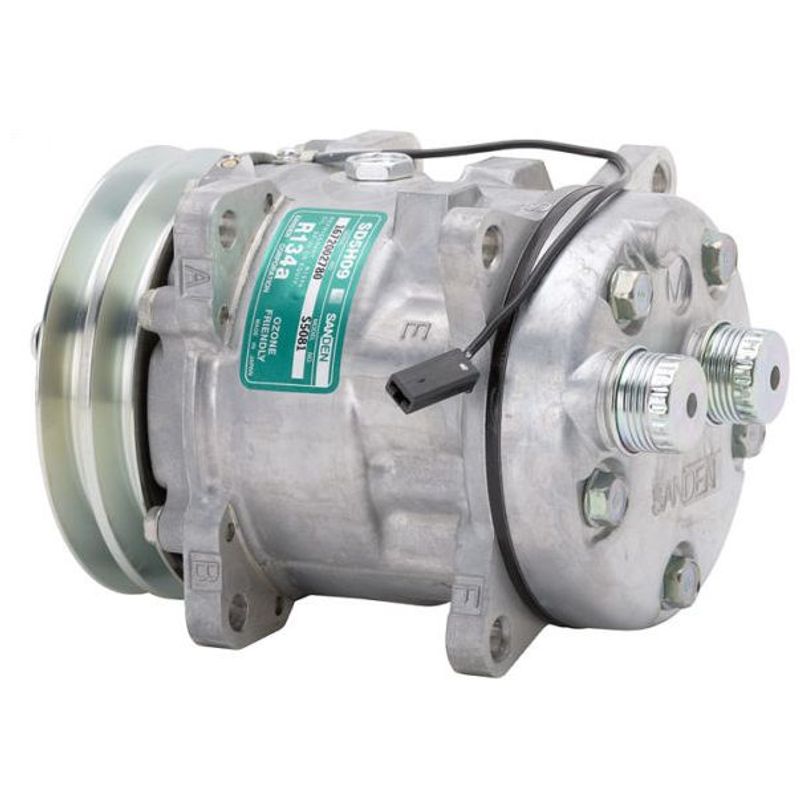

COMP SD5H09 12V 2A 125MM HTO EAR MOUNT M HEAD
CM5081
Description
This Sanden SD5H09 compressor is a 12V unit with a 2A (dual groove) 125mm V-belt pulley. It features HTO (Horizontal Tube O-Ring) ports with an M head and is designed for R134a refrigerant systems.
Specifications
| Voltage | 12V |
| Pulley Type | 2A (Dual Groove) |
| Pulley Diameter | 125mm |
| Ports | HTO (Horizontal Tube O-Ring) |
| Model | SD5H09 |
| Refrigerant Type | R134a |
| Mount Type | Ear Mount |
| Head Type | M Head |
| Port Angle | Horizontal |
| Head Port Discharge Size | 1 X 14 Male Thread |
| Head Port Suction Size | 1 X 14 Male Thread |
| Belt Type | V-Belt |
| Number of Grooves | 2 |
| Oil Type | SP20 or PAG 100 |
| Oil Qty | 100cc |
| Coil Connector | 1 Wire AMP42281-2 |
Vehicle / Equipment Applications
Heavy-duty applications
Weight: 6 kg
