Sanden
Compressors
COMP FREIGHTLINER FL80 SD7H15 12V 119MM PV8 MD HEAD
CM4734
Description

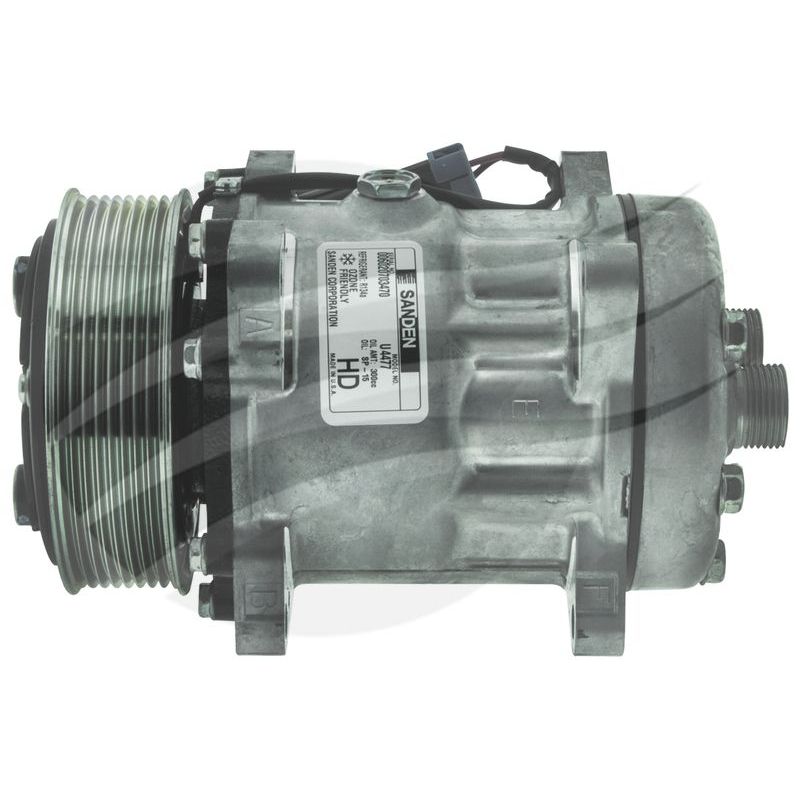

This Sanden SD7H15 compressor is a 12V unit featuring an 8-groove (PV8) pulley with a 119mm diameter. It is designed for direct mounting with a MD head and horizontal tube-o fittings, compatible with R134a refrigerant. The compressor has a displacement of 154.9cc and is pre-filled with 155cc or 300cc of PAG100 oil.
Specifications
| Voltage | 12V |
| Pulley Type | PV8 |
| Pulley Diameter | 119mm |
| Ports | Horizontal Tube-O, Long Pilot (7/8-14 UNF suction, 3/4-16 UNF discharge) |
| Model | SD7H15 |
| Refrigerant Type | R134a |
| Prefilled Oil Qty | 155cc or 300cc PAG100 |
| Mount Type | Direct / Ear 8 Long |
| Cylinder Head | MD Head / GH Head / MJA |
| Displacement Per Revolution | 154.9cc |
Vehicle / Equipment Applications
Freightliner FL80
Weight: 6 kg
