JAYAIR
Compressors
COMP MAZDA CX-3 DK 2.0L PET 15-ON, MAZDA2 DJ 1.5L 14-ON
CM3416
Description

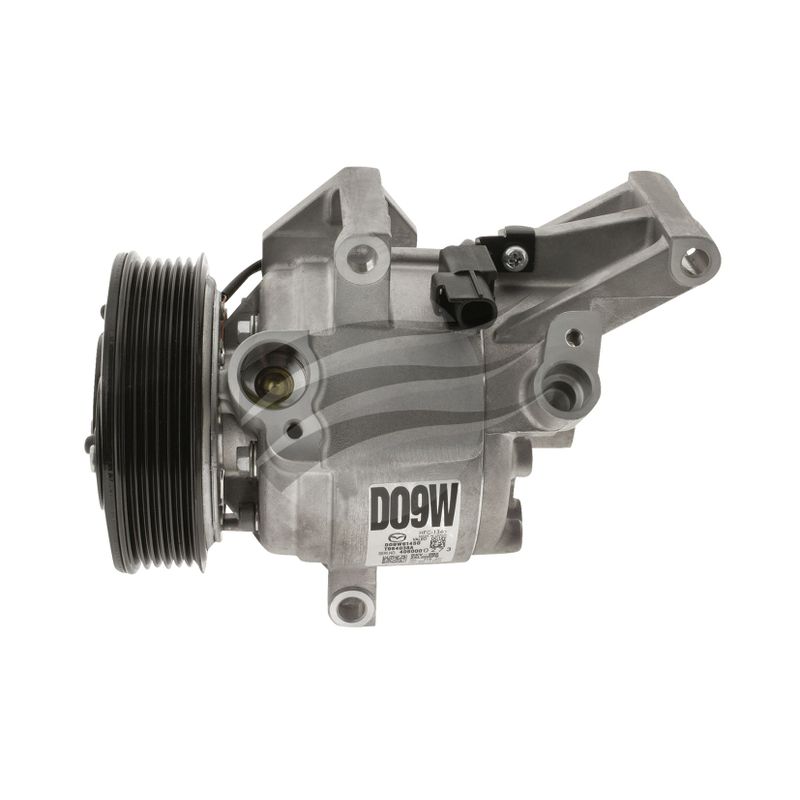

The JAYAIR CM3416 AC compressor is designed for Mazda CX-3 DK 2.0L Petrol models from 2015 onwards and Mazda2 DJ 1.5L models from 2014 onwards. This DKV09Z model compressor operates on 12V, features a 6-groove (6PV) pulley with a diameter of 114mm, and utilises PAD ports. It is prefilled with 125ml of oil and is compatible with R134a refrigerant.
Specifications
| Voltage | 12V |
| Pulley Type | 6PV |
| Pulley Diameter | 115mm |
| Ports | PAD |
| Model | DKV09Z |
| Refrigerant Type | R134a |
| Prefilled Oil Qty | 110ml |
Weight: 6 kg
