Denso
Compressors
COMP TOYOTA HIACE KDH221R 3.0L DSL 06-19
CM1866
Description

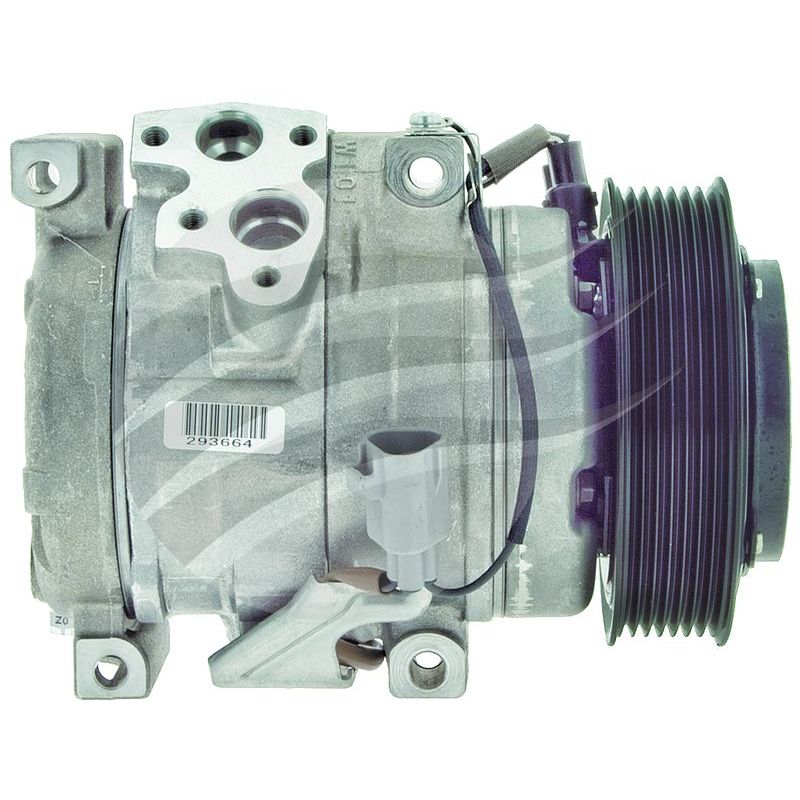

This Denso 10S15C air conditioning compressor operates on 12V and features a 7PV pulley with a 124mm diameter. It is equipped with PAD ports and is prefilled with 120ml of ND-8 or PAG 46 oil, compatible with R134a refrigerant. This compressor is designed for Toyota Hiace KDH221R 3.0L diesel models from 2006 to 2019.
Specifications
| Voltage | 12V |
| Pulley Type | 7PV |
| Pulley Diameter | 124mm |
| Ports | PAD |
| Model | 10S15C |
| Refrigerant Type | R134a |
| Prefilled Oil Qty | 120ml |
Weight: 6 kg
