Denso
Compressors
COMP TOYOTA HIACE KDH201R KDH223R 3.0L DSL 06-19
CM1864
Description

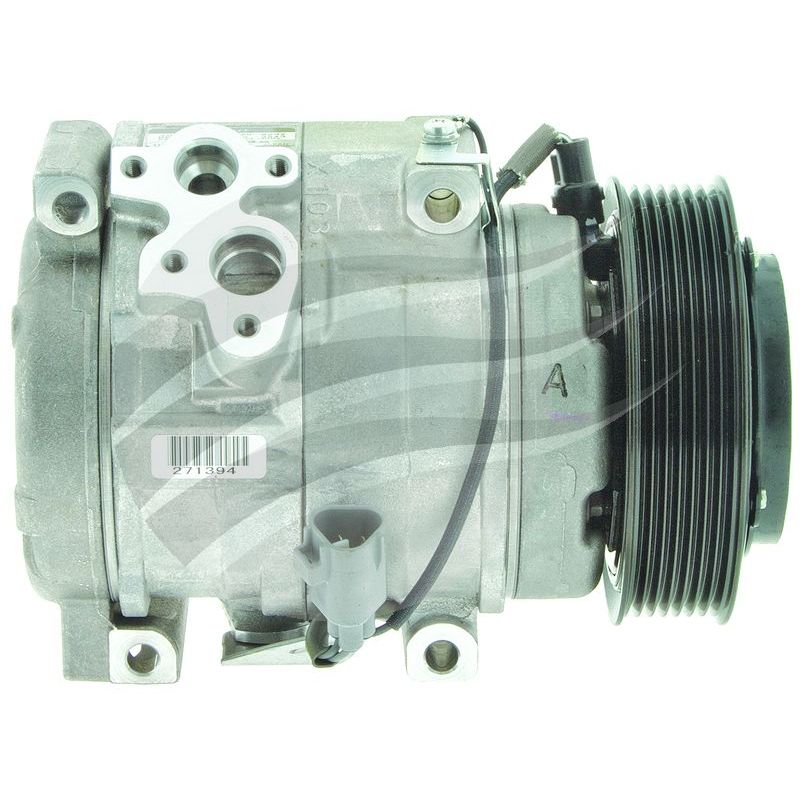

This Denso 10S17C air conditioning compressor is designed for Toyota Hiace KDH201R and KDH223R models with 3.0L diesel engines manufactured between 2006 and 2019. It operates on 12V, features a 7PV pulley type with a 124mm diameter, and utilises PAD ports for refrigerant flow. The compressor is prefilled with 180ml of PAG 46 oil and is compatible with R134a refrigerant.
Specifications
| Voltage | 12V |
| Pulley Type | 7PV |
| Pulley Diameter | 124mm |
| Ports | PAD |
| Model | 10S17C |
| Refrigerant Type | R134a |
| Prefilled Oil Qty | 120ml |
Weight: 6 kg
