JAYAIR
Compressors
COMP TOYOTA HIACE RZH103R RZH113R 2.4L PET 93-98
CM1690J
Description

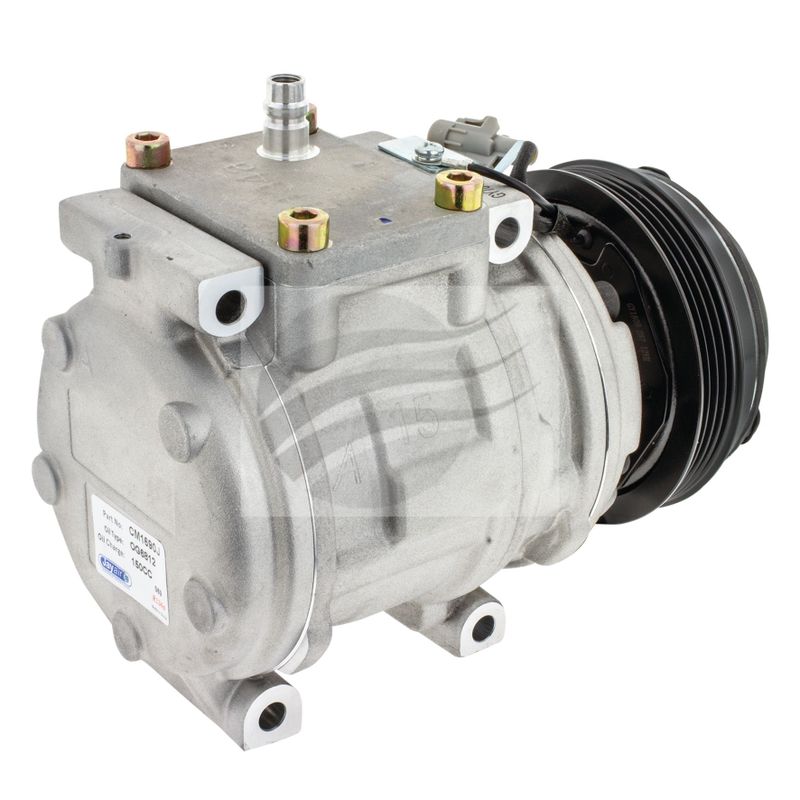

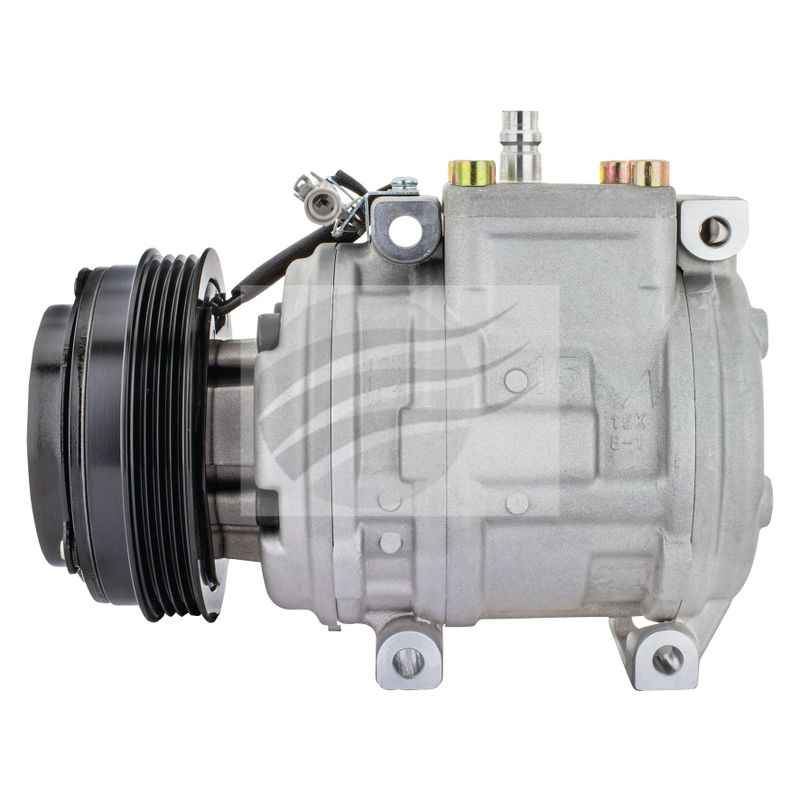

This Jayair CM1690J A/C compressor is a 10PA15L model designed for R134a refrigerant systems. It operates at 12V and features a 4PV pulley with a diameter of 115mm. The compressor utilises PAD type ports and is prefilled with 150ml of oil.
Specifications
| Voltage | 12V |
| Pulley Type | 4PV |
| Pulley Diameter | 115mm |
| Ports | PAD |
| Model | 10PA15L |
| Refrigerant Type | R134a |
| Prefilled Oil Qty | 150ml |
Weight: 6 kg
