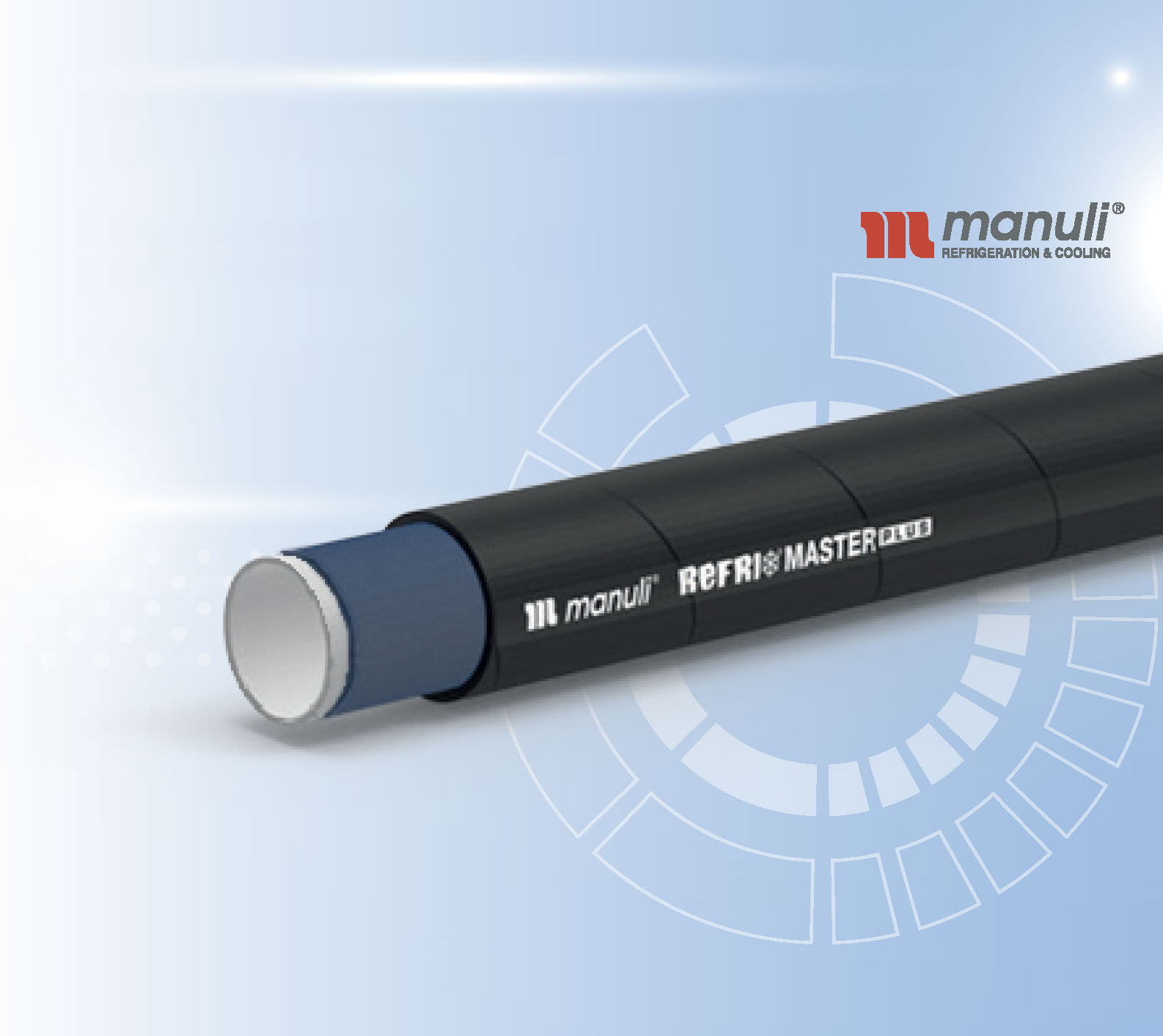

A/C Hose Refrimaster plus
H09071008-15m
Description
This Manuli Refrimaster plus A/C hose is a #06 size, DN 8mm (5/16”) thermoplastic PA veneer reduced hose, compatible with refrigerants R134a, R404a, R407C, R401A, and HFO 1234yf. It offers high temperature resistance up to 140°C and a continuous service temperature range of -40°C to 125°C.
Specifications
| Manufacturer | Manuli |
| Size | #06, DN 8mm (5/16”) |
| Material (Tube) | High temperature resistant thermoplastic (PA) veneer |
| Material (Cover) | High temperature and environment resistant synthetic rubber (EPDM) |
| Reinforcement | One textile braid |
| Refrigerant Compatibility | R134a, R404a, R407C, R401A, HFO 1234yf |
| Continuous Service Temperature Range | -40°C to 125°C |
| Maximum Temperature Resistance | Up to 140°C |
| Max Working Pressure | 35 bar (500 psi) |
| Burst Pressure | 250 bar (3620 psi) |
| Minimum Bend Radius | 40 mm (1.57 inch) |
| Weight | 80 g/m (0.05 lb/ft) |
| Permeability | Extremely low across all sizes |
| Standards | SAE J3062 Type Eu Class I, SAE J2064 |
| Connection Options | Optional Ferrule crimped or Clamp solutions |
| Length | 15 metres |
Vehicle / Equipment Applications
Air conditioning systems (off-highway machines, buses, etc.)Mobile refrigeration systems
